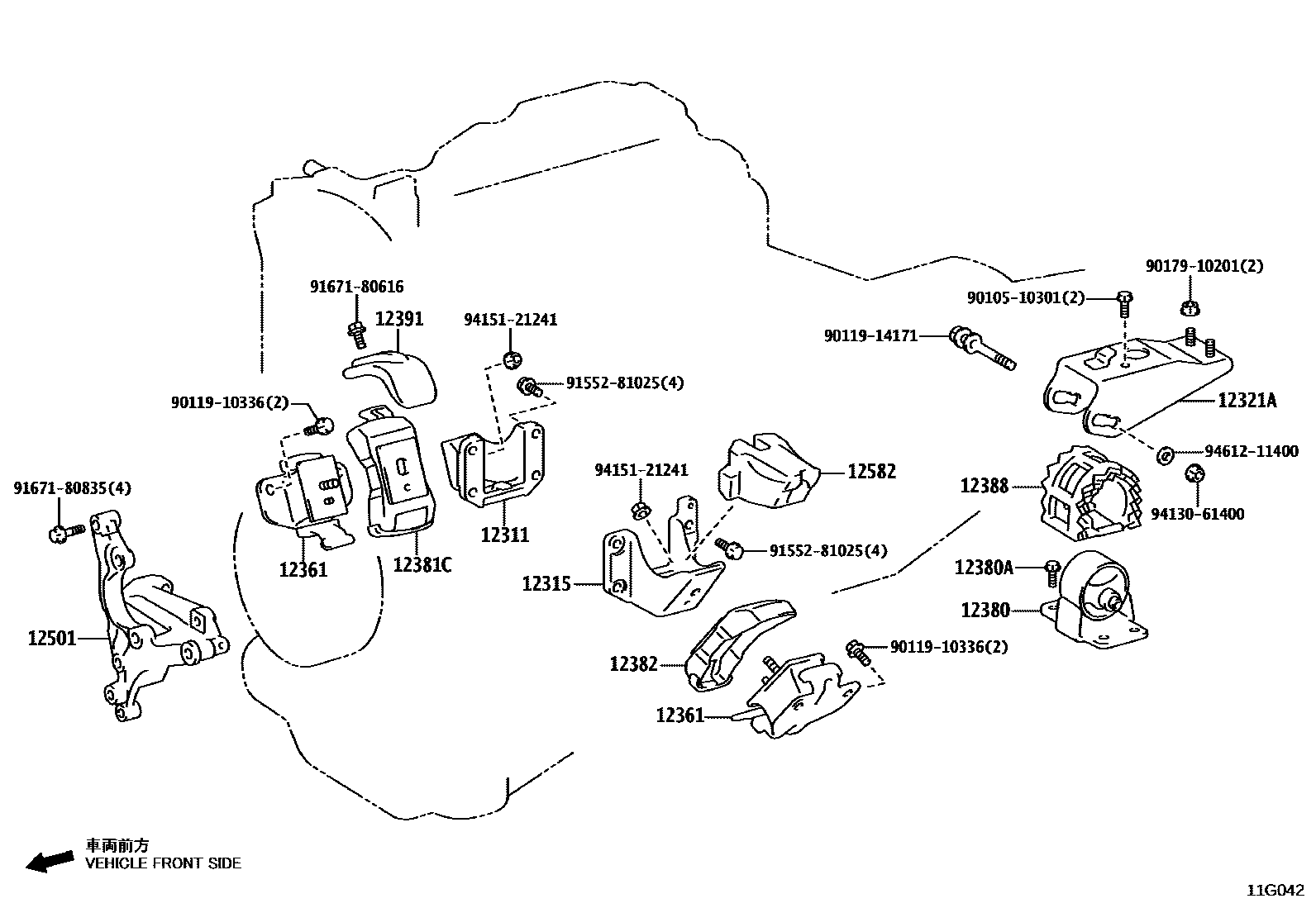

MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12321BRACKET, ENGINE MOUNTING, REAR, NO.1
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12361INSULATOR, ENGINE MOUNTING, FRONT
12380INSULATOR ASSY, ENGINE MOUNTING, REAR
12380ABOLT(FOR ENGINE MOUNTING INSURATOR)
12381STABILIZER, ENGINE MOUNTING
12381CSTABILIZER, ENGINE MOUNTING, RH
12382STABILIZER, ENGINE MOUNTING, LH
12388STOPPER, ENGINE MOUNTING BRACKET, REAR
12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12501BRACKET SUB-ASSY, ALTERNATOR
12582INSULATOR, CYLINDER BLOCK, NO.2
9010510301
main90105-10301
9011910336
main90119-10336
9011914171
main90119-14171
9017910201
main90179-10201
9155281025
main91552-81025
9167180616
main91671-80616
9167180835
main91671-80835
9413061400
main94130-61400
9415121241
main94151-21241
9461211400
main94612-11400
24 parts on this diagram · 2 diagrams in section
