MIRROR

0001 1INNER MIRROR 0002 1OUTER MIRROR 0005 1OUTER MIRROR 0007 1OUTER MIRROR 0008 1OUTER MIRROR 0009 1OUTER MIRROR 0010 1OUTER MIRROR 0011 1OUTER MIRROR COVER

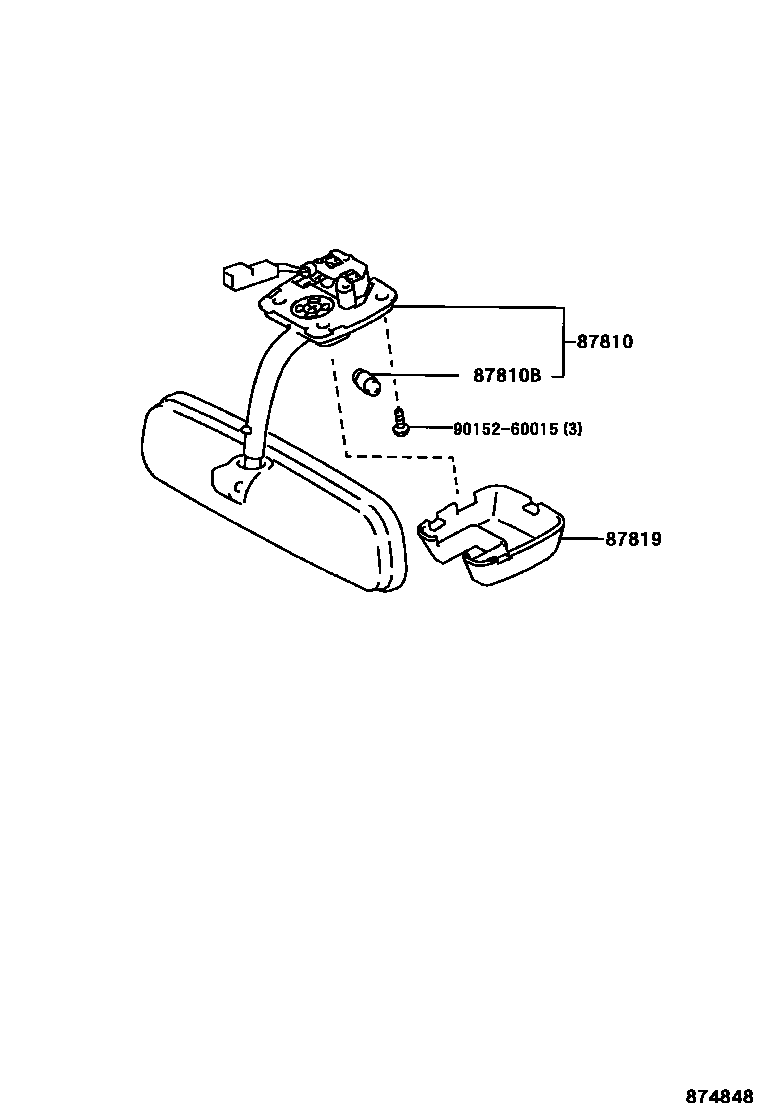

87810MIRROR ASSY, INNER REAR VIEW

main87810-25030-B0iLY230200710-201206

MD.CHARCOAL,TRIM1#

main87810-25040-B0iLY230201008-201505

MD.CHARCOAL,TRIM1#

sub87810-25041

main87810-25040-C0iLY230201505-201507

BLACK,TRIM1#

sub87810-25041

main87810-25041-C0iLY230201508-202111

BLACK,TRIM1#

main87810-25050-B0iLY22#,23#..ARL,GEN200107-200606

MD.CHARCOAL,TRIM1#

sub87810-25051

main87810-25051iLY235..WT200607-200609

main87810-25051-B0iLY235..ST;KDY221,231,LY225..GEN200607-200708

MD.CHARCOAL,TRIM1#

main87810-25060-B0iKDY220,230,250,260,LY230..EUR,SA200108-200606

MD.CHARCOAL,TRIM1#

sub87810-25061

main87810-25061iKDY220,230,250,260200607-200610

main87810-25061-B0iKDY221,231,251,261,LY230..EUR,SA200607-200710

MD.CHARCOAL,TRIM1#

main87810-37090-B0iKDY221,231,LY225,235..GEN200708-201505

MD.CHARCOAL,TRIM1#

sub87810-37091

main87810-37090-C0iKDY221,231,LY225,235201505-201507

BLACK,TRIM1#

sub87810-37091

main87810-37091-C0iKDY221,231,LY225,235201508

BLACK,TRIM1#

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11004iLY230201508-202111

12V 10W

main90981-11027iKDY22#,23#,25#,26#,LY22#,23#200107-201508

12V 10W

87819LENS, INNER RR VIEW MIRROR ROOM LAMP

main87819-25010iLY230..SA200107-202111

9015260015

main90152-60015

4 parts on this diagram · 8 diagrams in section
