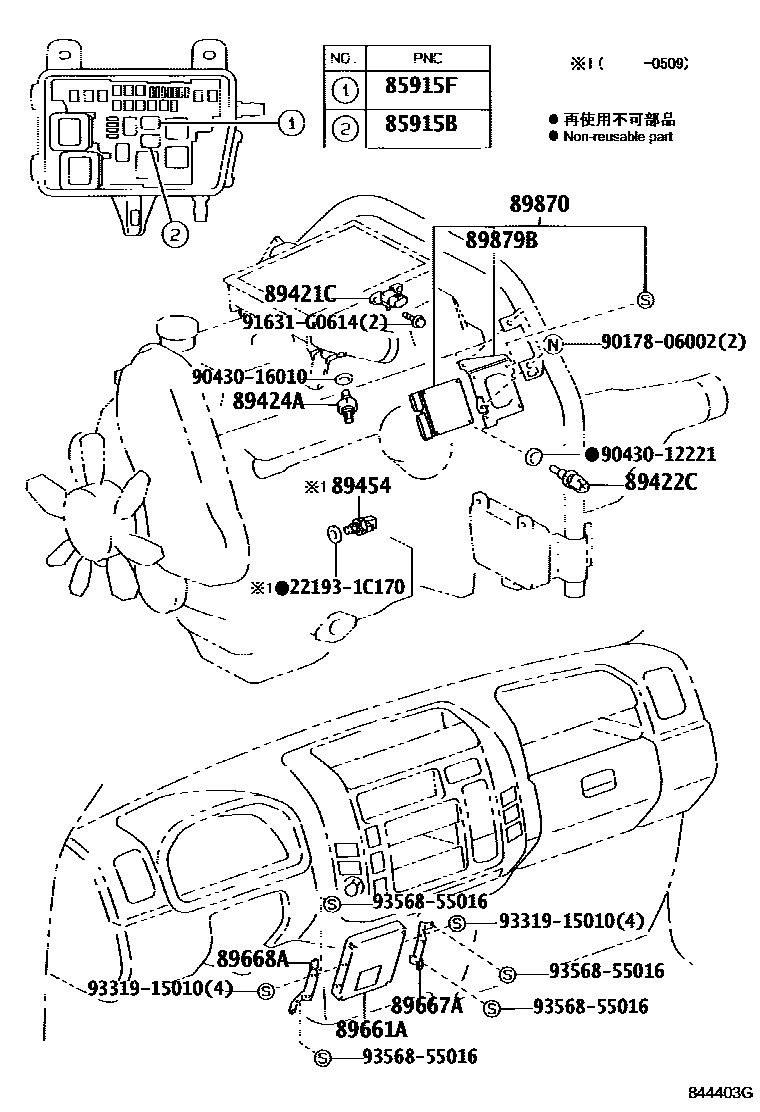

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0004 1 0006 1 0007 1 0008 1

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02012iKDY220,230,250,260200108-200408

main90987-02027iKDY22#,23#,25#,26#200408

85915FRELAY, SPILL VALVE

main90987-02012iKDY220,230,250,260200108-200408

main90987-02027iKDY22#,23#,25#,26#200408

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20200iKDY221,231,251,261200609-200611

main89421-20210iKDY220,230,250,260200108-200412

main89421-71020iKDY220,230,250,260200501-200610

main89421-71030iKDY221,231,251,261200612

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iKDY221,231,251,261200609

main89422-35010iKDY220,230,250,260200108-200610

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-60010iKDY22#,23#,25#,26#200108

89454SENSOR, FUEL TEMPERATURE

main89454-20010iKDY22#,23#,25#,26#200509

main89454-60010iKDY220,230,250,260200108-200508

89661ACOMPUTER, ENGINE CONTROL

main89661-25050iKDY220,230..ST200108-200610

main89661-25060iKDY230,250,260..WT200108-200609

main89661-25160iKDY221,231,251,261..EUR200609-200706

PART NUMBER LABEL=89661-25160

main89661-25161iKDY221,231,251,261..EUR200706-200907

PART NUMBER LABEL=89661-25161

main89661-25170iKDY221,231,251,261200609-200706

PART NUMBER LABEL=89661-25170

main89661-25171iKDY221,231,251,261..EUR200706-201205

PART NUMBER LABEL=89661-25171

sub89661-25440

main89661-25270iKDY221,231..GEN201109-201610

main89661-25290iKDY221,231,251,261..EUR200907-201109

PART NUMBER LABEL=89661-25290

main89661-25300iKDY221,231,251,261..EUR200907-201109

PART NUMBER LABEL=89661-25300

main89661-25440iKDY221,231..GEN201206-201310

main89661-25540iKDY221,231201610

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-25040iKDY221,231..GEN200609-201310

main89667-25050iKDY221,231,251..RHD..EUR200907-201502

main89667-25090iKDY221,231,251,261..LHD200907-201502

main89667-25110iKDY221,231..GEN201310-201610

main89667-25150iKDY221,231201610

main89667-37010iKDY22#,23#,25#,26#..EUR200108-200907

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-25040iKDY221,231,251,261..EUR200609-200907

main89668-25050iKDY221,231..GEN200609-201310

main89668-25060iKDY221,231,251..RHD..EUR200907-201502

main89668-25090iKDY221,231,251,261..LHD200907-201502

main89668-25100iKDY221,231..GEN201310-201610

main89668-25140iKDY221,231201610

main89668-37020iKDY220,230,250,260200108-200610

89870DRIVER ASSY, SPILL VALVE CONTROL

main89870-25010iKDY220,230,250,260200108-200610

89879BBRACKET, INJECTOR DRIVER

main89879-25010iKDY220,230,250,260200108-200610

main89879-25020iKDY221,231..GEN200609-201310

main89879-25030iKDY221..EUR;KDY231,251,261..15T..IV3201109

main89879-25040iKDY231,251,261..10T,125T201109-201502

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

9017806002

main90178-06002

9043012221

main90430-12221

9043016010

main90430-16010

91631G0614

main91631-G0614

9331915010

main93319-15010

9356855016

main93568-55016

18 parts on this diagram · 6 diagrams in section
