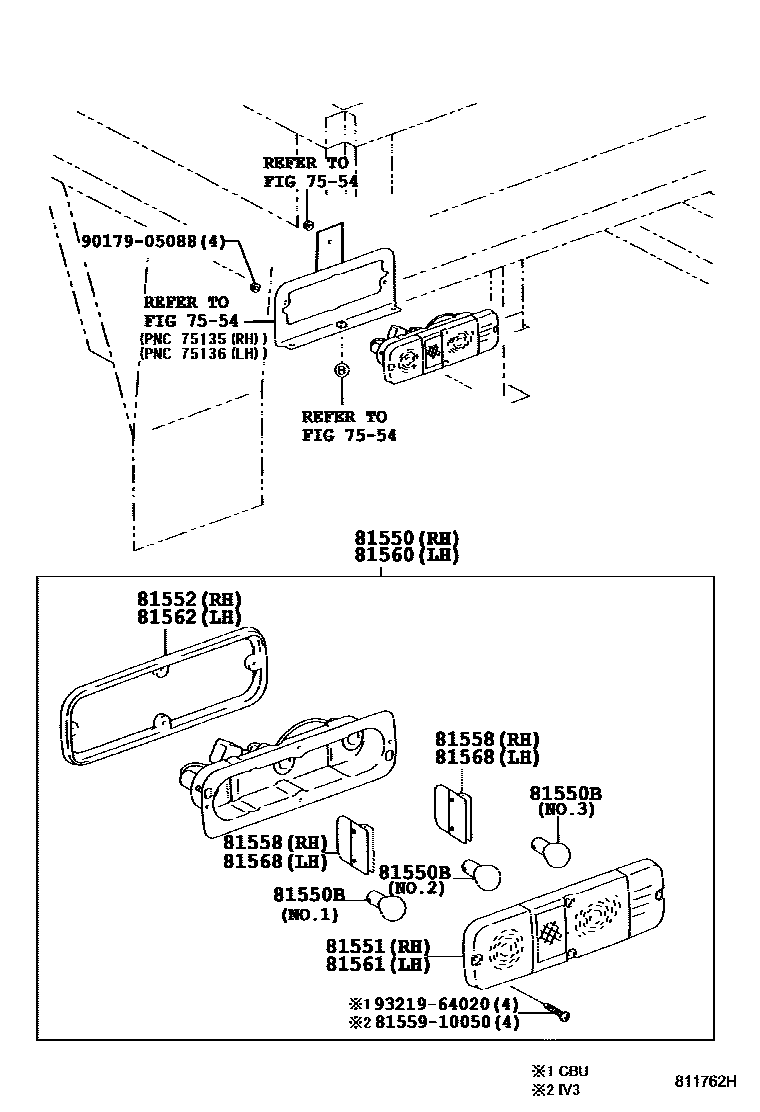

REAR COMBINATION LAMP

0001 1 0003 1

7554

81550LAMP ASSY, REAR COMBINATION, RH

main81550-25100iLY225,235..IV3200107-200707

main81550-25101iKDY221,231,LY235..WT..CBU200107

main81550-25110iKDY22#,23#..EUR..CBU200108-201502

main81550-25150iLY225,235..IV3200707

main81550-37041iKDY22#,23#,25#,26#,LY220,230..IV3200108-200910

sub81550-37042

main81550-37042iKDY221,231,251,261,LY230..IV3200911-202111

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iLY225,235..ST;KDY22#,23#,25#,26#..EUR200107-202111

12V 21W,NO.1 & NO.3

main99132-11210iKDY221,231,LY235..WT..CBU200107

12V 21W,NO.2

main99132-11270iKDY221,231,LY235..WT..CBU200107

12V 27W,NO.1

main99132-21210iLY230..SA200107-202111

12V 21/5W,NO.2

main99132-21270iKDY221,231,LY235..WT..CBU200107

12V 27/8W,NO.3

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iKDY221,231,LY225,235..GEN200107

main81551-35061iKDY22#,23#..EUR..CBU200108-201502

main81551-60442iKDY22#,23#,25#,26#,LY220,230..IV3200108-202111

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-25060iKDY221,231,LY225,235..GEN200107

main81552-26040iKDY22#,23#..EUR..CBU200108-201502

main81552-95400iKDY22#,23#,25#,26#,LY220,230..IV3200108-202111

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iKDY221,231,LY225,235..GEN200107

main81557-26040iKDY22#,23#..EUR..CBU200108-201502

81560LAMP ASSY, REAR COMBINATION, LH

main81560-25090iLY225,235..ST..CBU200107-200707

main81560-25091iKDY221,231,LY235..WT..CBU200107

main81560-25100iKDY22#,23#..EUR..CBU200108-201502

main81560-25140iLY225,235..IV3200707

main81560-37061iKDY22#,23#,25#,26#,LY220,230..IV3200108-200910

sub81560-37062

main81560-37062iKDY221,231,251,261,LY230..IV3200911-202111

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iKDY221,231,LY225,235..GEN200107

main81561-35061iKDY22#,23#..EUR..CBU200108-201502

main81561-60372iKDY22#,23#,25#,26#,LY220,230..IV3200108-202111

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-95400iKDY22#,23#,25#,26#,LY220,230..IV3200108-202111

main81562-25040iKDY221,231,LY225,235..GEN200107

main81562-26040iKDY22#,23#..EUR..CBU200108-201502

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iKDY221,231,LY225,235..GEN200107

main81557-26040iKDY22#,23#..EUR..CBU200108-201502

8155910050MOULDING, REAR COMBINATION LAMP, RH

main81559-10050

9017905088

main90179-05088

9321964020

main93219-64020

13 parts on this diagram · 2 diagrams in section
