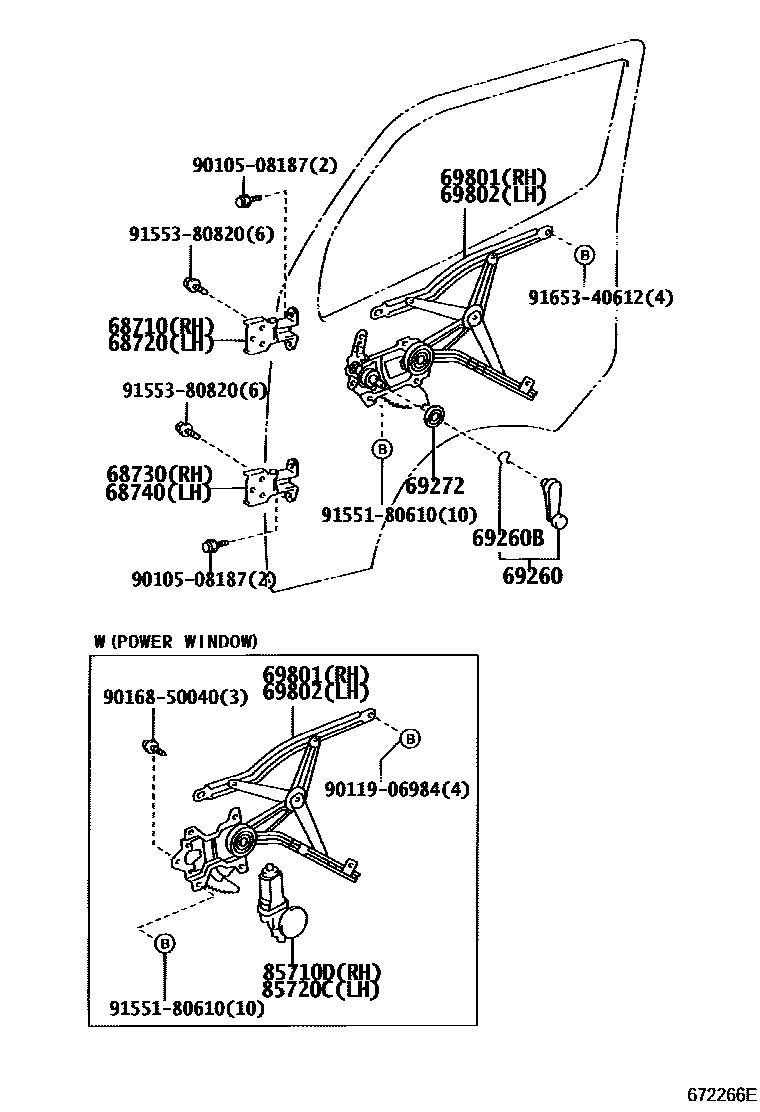

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-37020iKDY22#,23#,25#,26#,LY22#,23#200107-202111

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-37010iKDY22#,23#,25#,26#,LY22#,23#200107-202111

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-37010iKDY22#,23#,25#,26#,LY22#,23#200107-202111

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-37020iKDY22#,23#,25#,26#,LY22#,23#200107-202111

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-89104-B3iKDY22#,23#,25#,26#,LY22#,23#200107-201505

MD.CHARCOAL,TRIM1#

sub69260-89104

main69260-89104-B3iLY225,23#201505-202111

MD.CHARCOAL,TRIM12

sub69260-89104

main69260-89104-B5iKDY221,231201505-202111

GRAY,TRIM13

sub69260-89104

main69260-89104-B5iKDY221,231201505-202111

GRAY,TRIM1#

sub69260-89104

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iKDY22#,23#,25#,26#,LY22#,23#200107-202111

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010iKDY22#,23#,25#,26#,LY22#,23#200107-202111

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-37020iLY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230..ARL,EUR,GEN200107-200610

sub69801-37050

main69801-37030iKDY220..RHD..IV3200107-200610

W(POWER WINDOW)

sub69801-37060

main69801-37050iKDY221,231,251,261,LY225,23#200610-200704

sub69801-37051

main69801-37051iKDY221,231,251,261,LY225,23#200705-200905

sub69801-37052

main69801-37052iKDY221,231,251,261,LY225,23#200906-202111

main69801-37060iKDY221,231,251,261200610-200706

W(POWER WINDOW)

sub69801-37061

main69801-37061iKDY221,231,251,261200706-200906

W(POWER WINDOW)

sub69801-37062

main69801-37062iKDY221,231,251,261200906-201303

W(POWER WINDOW)

sub69801-37063

main69801-37063iKDY221,231,251,261201304

W(POWER WINDOW)

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-37020iLY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230..ARL,EUR,GEN200107-200610

sub69802-37050

main69802-37030iKDY220..RHD..IV3200107-200610

W(POWER WINDOW)

sub69802-37060

main69802-37050iKDY221,231,251,261,LY225,23#200610-200704

sub69802-37051

main69802-37051iKDY221,231,251,261,LY225,23#200705-200905

sub69802-37052

main69802-37052iKDY221,231,251,261,LY225,23#200906-202111

main69802-37060iKDY221,231,251,261200610-200706

W(POWER WINDOW)

sub69802-37061

main69802-37061iKDY221,231,251,261200706-200906

W(POWER WINDOW)

sub69802-37062

main69802-37062iKDY221,231,251,261200906-201303

W(POWER WINDOW)

sub69802-37063

main69802-37063iKDY221,231,251,261201304

W(POWER WINDOW)

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-37070iLY235..WT;KDY22#,23#,25#,26#200107-200708

main85710-37090iKDY221,231,251,261200708

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-37090iLY235..WT;KDY22#,23#,25#,26#200107-200708

main85720-37120iKDY221,231,251,261200708

9010508187

main90105-08187

9011906984

main90119-06984

9016850040

main90168-50040

9155180610

main91551-80610

9155380820

main91553-80820

9165340612

main91653-40612

17 parts on this diagram · 1 diagram in section
