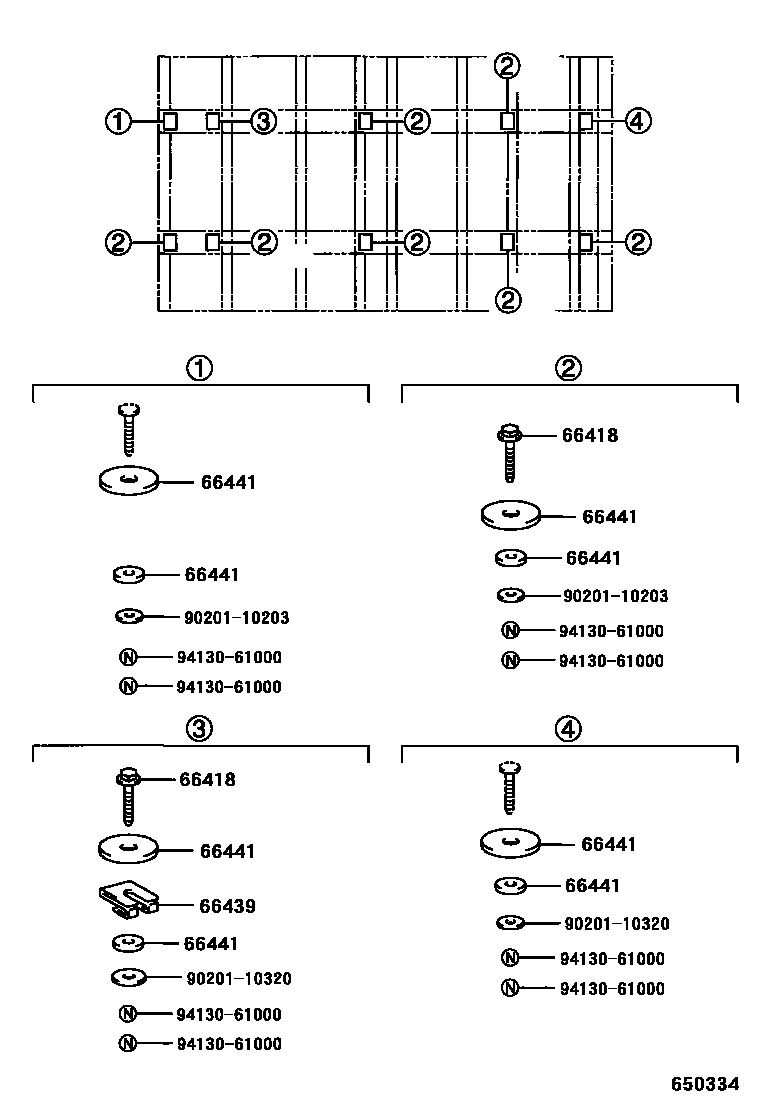

REAR BODY MOUNTING

0001 1 0003 1 0004 1

66418BOLT, MOUNTING

main66418-95400iKDY221,231,LY235..WT..CBU200107

TYPE A:REFER ILLUST.

main90119-10490iKDY23#..EUR..CBU200108-201502

main90119-10490iKDY221,231,LY235..WT..CBU200107

TYPE B:REFER ILLUST.

66439SHIM, SUPPORT

main66439-95400iKDY220,LY225,235..CBU200107-201502

66441SHIM, MOUNTING, NO.1

main90564-12013iKDY23#..EUR..CBU200107-201502

LOWER

main90564-15142iKDY23#..EUR..CBU200107-201502

UPPER

9020110203

main90201-10203

9020110320

main90201-10320

9413061000

main94130-61000

6 parts on this diagram · 3 diagrams in section
