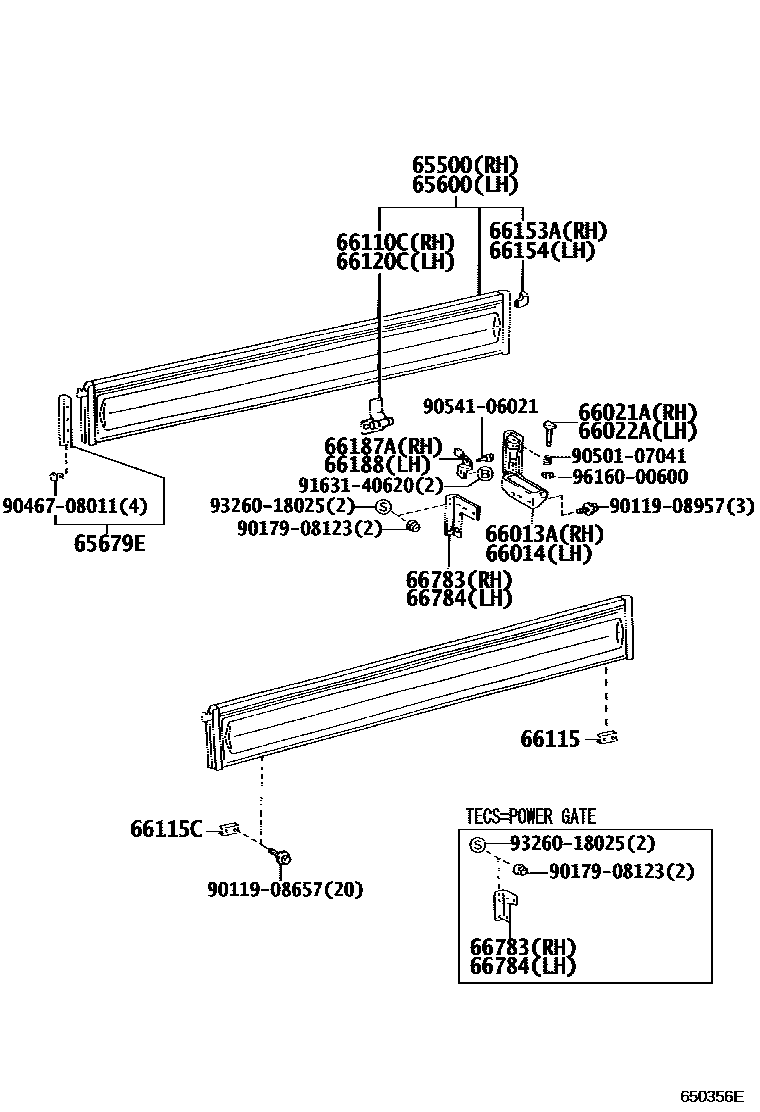

REAR BODY SIDE PANEL

0001 1 0003 1

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-25051iKDY22#,LY225..CBU200107

main65500-25070iKDY23#..EUR..CBU200108-201004

main65500-25290iKDY231..EUR..CBU201004-201502

main65500-26061iKDY231,LY235..GEN..CBU200107

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-25051iKDY22#,LY225..CBU200107

main65600-25070iKDY23#..EUR..CBU200108-201004

main65600-25290iKDY231..EUR..CBU201004-201502

main65600-26061iKDY231,LY235..GEN..CBU200107

65679ESEAL, SIDE GATE

main65679-25030iKDY22#,231,LY225,235..(125T,15T,175T)..CBU200107

LH

main65679-25040iKDY22#,231,LY225,235..(125T,15T,175T)..CBU200107

RH

66013ASUPPORT SUB-ASSY, SIDE GATE, RH

main66013-25010iKDY22#,231,LY225,235..(125T,15T,175T)..CBU200107

66014SUPPORT SUB-ASSY, CORNER, LH

main66014-25010iKDY22#,231,LY225,235..(125T,15T,175T)..CBU200107

66021AHANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER, RH

main66021-25010iKDY22#,231,LY225,235..(125T,15T,175T)..CBU200107

66022AHANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER, LH

main66022-25010iKDY22#,231,LY225,235..(125T,15T,175T)..CBU200107

66110CHINGE ASSY, SIDE GATE, NO.1 RH

main65040-95A00iKDY231,LY235..GEN..CBU200107-201910

sub66110-95018

main66110-95018iKDY231,LY235..CBU201911

66115PIN, GATE HINGE

main66115-95013iKDY221..GEN200107-200709

66115CRETAINER, GATE HINGE

main66115-95018iKDY221..GEN200107-200709

66120CHINGE ASSY, SIDE GATE, NO.1 LH

main66110-95018iKDY231,LY235..GEN..CBU200107

66153ALATCH, TAIL GATE FEMALE, RH

main66153-26010iKDY22#,231,LY225,235..(125T,15T,175T)..CBU200107

main66153-95012iKDY23#..EUR..CBU200108-201502

66154LATCH, TAIL GATE FEMALE, LH

main66153-95012iKDY23#..EUR..CBU200108-201502

main66154-26010iKDY22#,231,LY225,235..(125T,15T,175T)..CBU200107

66187ALATCH, SIDE GATE SUPPORT

main66187-25010iKDY22#,231,LY225,235..(125T,15T,175T)..CBU200107

66188LATCH, SIDE GATE, NO.1

main66187-25010iKDY22#,231,LY225,235..(125T,15T,175T)..CBU200107

66783BRACKET, SIDE GATE SUPPORT, RH

main66197-25010iKDY22#,231,LY225,235..(125T,15T,175T)..CBU200107

66784BRACKET, SIDE GATE SUPPORT, LH

main66198-25010iKDY22#,231,LY225,235..(125T,15T,175T)..CBU200107

9011908657

main90119-08657

9011908957

main90119-08957

9017908123

main90179-08123

9046708011

main90467-08011

9050107041

main90501-07041

9054106021

main90541-06021

9163140620

main91631-40620

9326018025

main93260-18025

9616000600

main96160-00600

26 parts on this diagram · 2 diagrams in section
