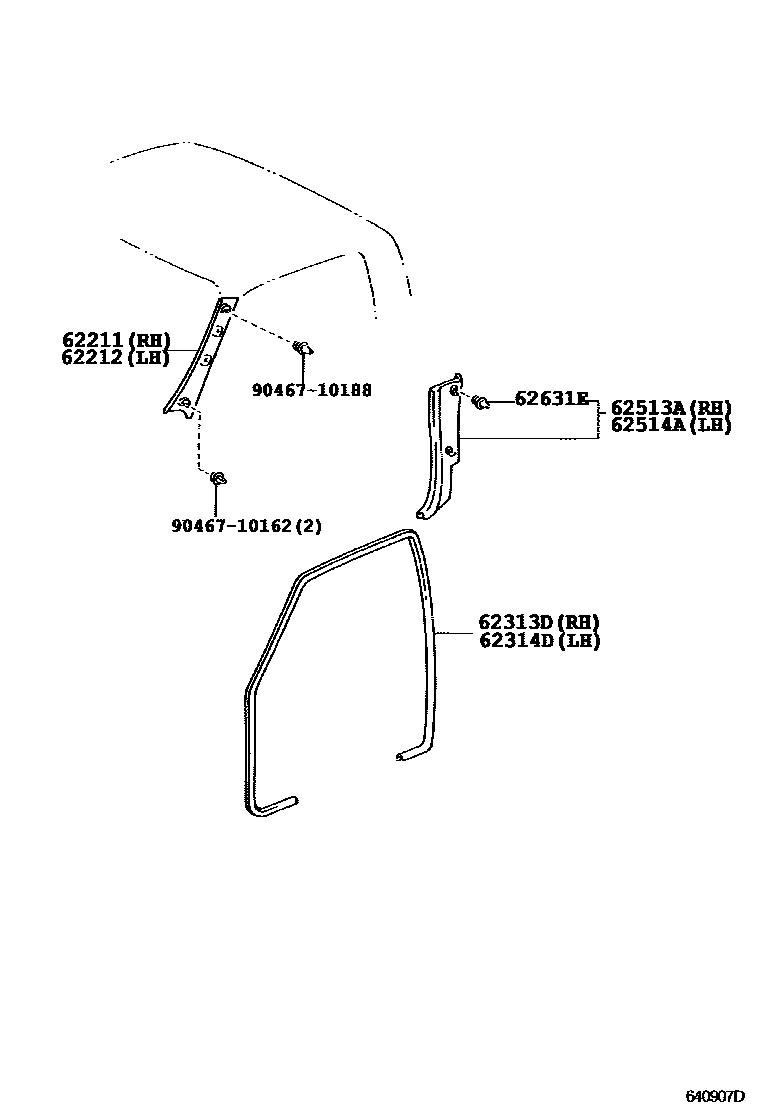

INSIDE TRIM BOARD

0001 1 0003 1

62211GARNISH, FRONT PILLAR, RH

main62210-37010-B0iKDY221,231,LY23#201610-202111

GRAY,TRIM1#

main62211-37010-B0iKDY220,230,250,260,LY22#,23#200107-200608

MD.CHARCOAL,TRIM1#

sub62211-37011

main62211-37011-B0iKDY220200609-200910

MD.CHARCOAL,TRIM1#

sub62211-37012

main62211-37012-B0iKDY221,231,251,261,LY225,23#200911-201505

MD.CHARCOAL,TRIM1#

main62211-37012-B1iKDY221,231,LY225,23#201505-201610

GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-37010-B0iKDY220,230,250,260,LY22#,23#200107-200608

MD.CHARCOAL,TRIM1#

sub62212-37011

main62212-37011-B0iKDY220200609-200910

MD.CHARCOAL,TRIM1#

sub62212-37012

main62212-37012-B0iKDY221,231,251,261,LY225,23#200911-201505

MD.CHARCOAL,TRIM1#

main62212-37012-B1iKDY221,231,LY225,23#201505-201610

GRAY,TRIM1#

main62220-37010-B0iKDY221,231,LY23#201610-202111

GRAY,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-37040-B0iKDY220,230,250,260,LY22#,23#200107-200312

MD.CHARCOAL,TRIM1#

sub62313-37041

main62313-37041-B0iKDY220,230,250,260,LY22#,23#200312-200608

MD.CHARCOAL,TRIM1#

main62313-37060-B0iKDY221,231,251,261,LY225,23#200609-201505

MD.CHARCOAL,TRIM1#

sub62313-37080

main62313-37080-B0iKDY221,231,LY225,23#201505-202111

GRAY,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-37040-B0iKDY220,230,250,260,LY22#,23#200107-200312

MD.CHARCOAL,TRIM1#

sub62313-37041

main62313-37041-B0iKDY220,230,250,260,LY22#,23#200312-200608

MD.CHARCOAL,TRIM1#

main62314-37020-B0iKDY221,231,251,261,LY225,23#200609-201505

MD.CHARCOAL,TRIM1#

sub62314-37040

main62314-37040-B0iKDY221,231,LY225,23#201505-202111

GRAY,TRIM1#

62513APANEL, QUARTER TRIM, LOWER RH

main62510-25010-B0iKDY221,231..GEN200107-200910

MD.CHARCOAL,TRIM1#

sub62510-25011

main62510-25011-B0iKDY221..EUR;KDY231,251,261..(10T,15T)..EUR200911-201309

MD.CHARCOAL,TRIM1#

sub62530-25010

main62513-37010-B0iKDY22#,23#,25#,26#,LY22#,23#..ARL,EUR,GEN200107-200910

W(*ELR),MD.CHARCOAL,TRIM1#

sub62513-37011

main62513-37011-B0iKDY221,231,251,261,LY225,235200911-201309

W(*ELR),MD.CHARCOAL,TRIM1#

sub62530-37020

main62530-25010-B0iLY230201310-201505

MD.CHARCOAL,TRIM1#

main62530-25010-B1iLY225,235201505-201610

GRAY,TRIM1#

main62530-37020-B0iLY230201409-202111

GRAY,TRIM1#

main62530-37020-B0iLY230201505-202111

W(*ELR),GRAY,TRIM1#

main62530-37020-B1iKDY221,231,251,261,LY225,235201310-201505

W(*ELR),MD.CHARCOAL,TRIM1#

62514APANEL, QUARTER TRIM, LOWER LH

main62514-37010-B0iKDY22#,23#,25#,26#,LY22#,23#..ARL,EUR,GEN200107-200910

W(*ELR),MD.CHARCOAL,TRIM1#

sub62514-37011

main62514-37011-B0iKDY221,231,251,261,LY225,235200911-201309

W(*ELR),MD.CHARCOAL,TRIM1#

sub62540-37020

main62520-25010-B0iKDY22#,LY225..ST;KDY231..(10T,15T)..EUR;KDY230,25#,26#,LY23#..(10T,15T,175T)..(EUR,GEN,SA)200107-200910

MD.CHARCOAL,TRIM1#

sub62520-25011

main62520-25011-B0iLY225,23#200911-201309

MD.CHARCOAL,TRIM1#

sub62540-25010

main62540-25010-B0iLY230201310-201505

MD.CHARCOAL,TRIM1#

main62540-25010-B1iLY225,235201505-201610

GRAY,TRIM1#

main62540-37020-B0iLY230201409

GRAY,TRIM1#

main62540-37020-B0iKDY221,231,LY225,235201505-202111

W(*ELR),GRAY,TRIM1#

main62540-37020-B1iKDY221,231,251,261,LY225,235201310-201505

W(*ELR),MD.CHARCOAL,TRIM1#

62631ERETAINER, QUATER TRIM

main67771-12050iKDY220,230,250,260,LY22#,23#200107-200308

main90467-10161iKDY22#,23#,25#,26#,LY22#,23#200308-202111

9046710162

main90467-10162

9046710188

main90467-10188

9 parts on this diagram · 2 diagrams in section
