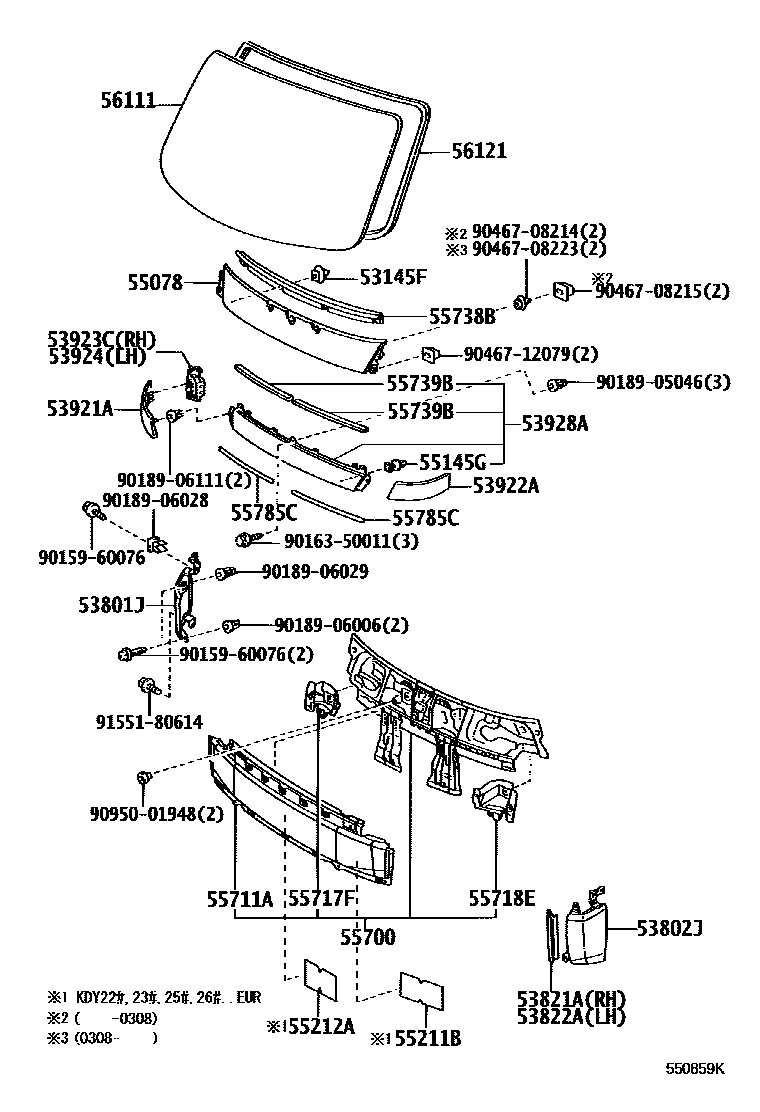

FRONT PANEL & WINDSHIELD GLASS

0001 1 0002 1

53145FCLIP, RADIATOR GRILLE GARNISH

main90467-08208×4iKDY22#,23#,25#,26#,LY22#,23#200107-201610

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53801-37020iKDY220,230,250,260,LY22#,23#200107-200206

sub81973-37010

main53801-37021iLY225200206-201609

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53802-37020iKDY220,230,250,260,LY22#,23#200107-200206

sub81973-37010

main53802-37021iLY225200206-201609

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-37070iLY225200107-201609

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53821-37070iLY225200107-201609

53921APANEL, FRONT VALANCE, RH

main53921-25010iKDY22#,23#,25#,26#,LY22#,23#200107-200911

main53921-25011iLY225200912-201609

53922APANEL, FRONT VALANCE, LH

main53922-25010iKDY22#,23#,25#,26#,LY22#,23#200107-200911

main53922-25011iLY225200912-201609

53923CSUPPORT, FRONT SIDE GARNISH, RH

main53923-25010iLY225200107-201609

53924PLATE, NOISE SHUTTER SUPPORT, NO.2

main53924-25010iLY225200107-201609

53928AGARNISH, FRONT PANEL, CENTER

main53928-37010iKDY220,230,250,260,LY22#,23#200107-200403

main53928-37011iLY225200404-201609

55078COVER SUB-ASSY, FRONT PANEL

main55078-37070iKDY22#,23#,25#,26#,LY22#,23#200107-201610

main55078-37110iKDY221,231,LY23#..RHD201610-202111

main55078-37120iLY235..LHD201610

55145GCLIP, RADIATOR GRILLE GARNISH

main53145-27010×7iLY225200107-201609

55211BSILENCER, FRONT PANEL

main55211-25010×2iKDY22#,23#,25#,26#..EUR200408-201502

main55211-37030×2iKDY220,230,250,260200108-200407

55212ASILENCER, FRONT PANEL, LOWER

main55212-25010iKDY22#,23#,25#,26#..EUR200408-201502

main55212-37010iKDY220,230,250,260200108-200407

55700PANEL ASSY, FRONT

main55700-25010iKDY221,231,251..RHD..EUR200609-201502

main55700-37110iKDY220,230,250,LY22#,23#..RHD200107-200401

main55700-37111iKDY221,231..GEN;KDY220,230,250,LY22#,23#..RHD200401-200801

main55700-37120iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main55700-37310iKDY221,231,LY225,23#..RHD..(GEN,SA)200801-201610

main55700-37350iKDY221,231,LY23#..RHD201610-202111

main55700-37420iLY235..LHD201610

55711APANEL, FRONT, LOWER

main55711-37050iKDY220,230,250,260,LY22#,23#200107-200503

main55711-37051iKDY22#,23#,25#,26#,LY225,23#200504-201610

main55711-37110iKDY221,231,LY23#..RHD201610-202111

55717FEXTENSION, FRONT PANEL REINFORCEMENT, RH

main55717-37020iKDY22#,23#,25#,26#,LY220,23#200107-201610

55718EEXTENSION, FRONT PANEL REINFORCEMENT, LH

main55718-37010iLY225200107-201609

55738BPROTECTOR, FRONT PANEL COVER, NO.1

main55738-37050iKDY220,230,250,260,LY22#,23#200107-200311

main55738-37051iKDY22#,23#,25#,26#,LY22#,23#200311-201610

main55738-37080iKDY221,231,LY23#..RHD201610-202111

55739BPROTECTOR, FRONT PANEL COVER, NO.2

main55739-37070×2iLY225200107-201609

55785CPAD, FRONT PANEL COVER

main55785-37020×2iLY225200107-201609

56111GLASS, WINDSHIELD

main56111-37120iKDY22#,23#,25#,26#,LY22#,23#200107-202111

*LAM,T=5.76,GREEN

56121WEATHERSTRIP, WINDSHIELD

main56121-25040iKDY221,231,251,261,LY225,23#200710-202111

main56121-37030iKDY220,230,250,260,LY22#,23#200107-200312

main56121-37031iKDY22#,23#,25#,26#,LY22#,23#200312-200710

9015960076

main90159-60076

9016350011

main90163-50011

9018905046

main90189-05046

9018906006

main90189-06006

9018906028

main90189-06028

9018906029

main90189-06029

9018906111

main90189-06111

9046708214

main90467-08214

9046708215

main90467-08215

9046708223

main90467-08223

9046712079

main90467-12079

9095001948

main90950-01948

9155180614

main91551-80614

36 parts on this diagram · 2 diagrams in section
