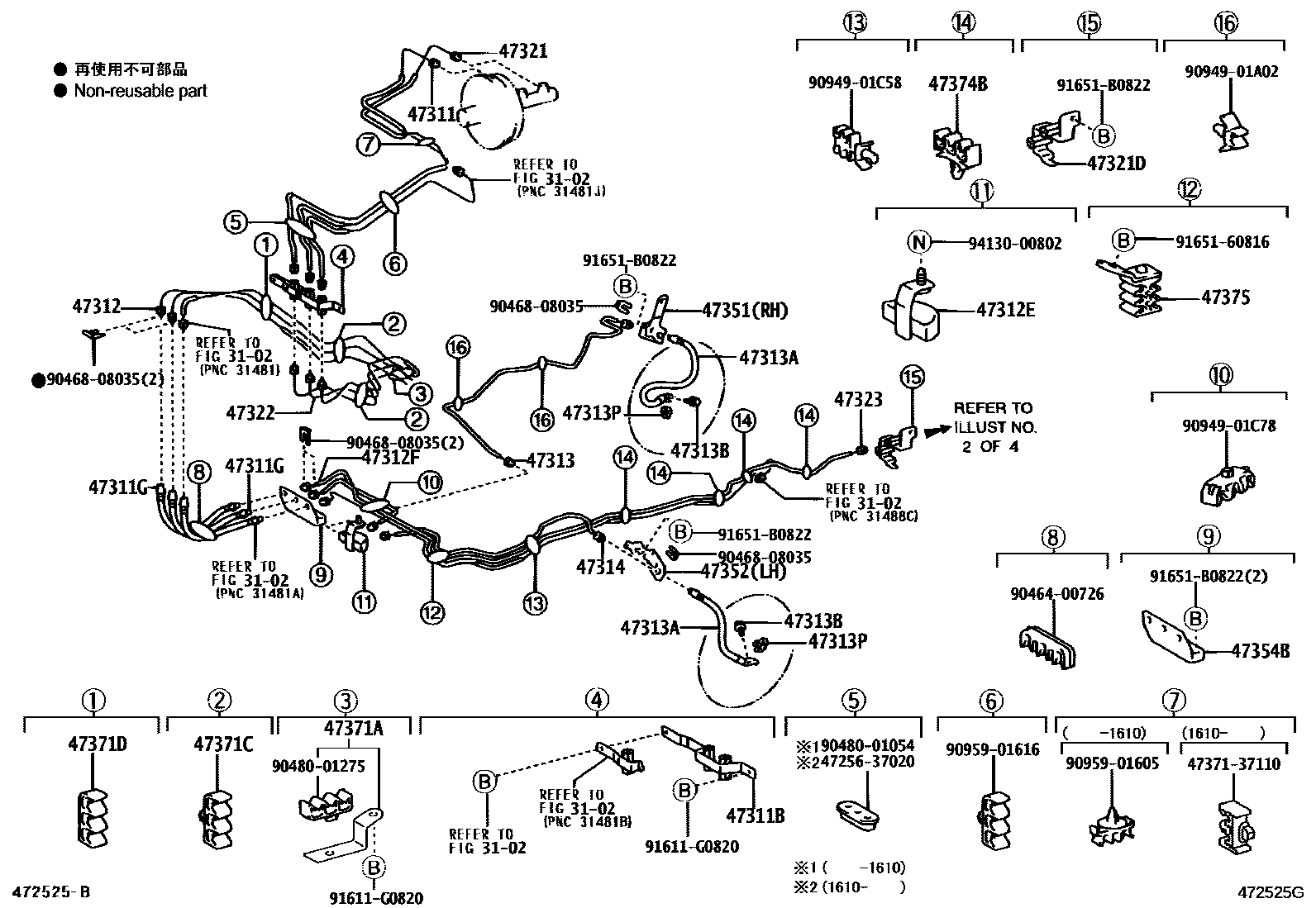

BRAKE TUBE & CLAMP

0001 1 0002 1 0004 1 0005 1 0006 1W(ABS) 0007 1W(ABS) 0008 1 0010 1 0012 1 0013 1W(ABS) 0015 1

3102

47311TUBE, FRONT BRAKE, NO.1

main47311-25410iKDY22#,23#,25#,LY22#,23#..RHD200107-201610

main47311-25420iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main47311-37602iKDY221,231,LY23#..RHD201610-201808

sub47311-37750

main47311-37652iLY235..LHD201610

main47311-37750iKDY221,231,LY23#..RHD201809-202111

sub47311-37751

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-37010iKDY22#,23#,25#,26#,LY22#,23#200107-201610

main47391-37460iKDY221,231,LY23#..RHD201610-202111

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02C65iKDY22#,23#,25#,26#,LY22#,23#200107-201610

main90947-02H91iLY235201610-202111

47312TUBE, FRONT BRAKE, NO.2

main47312-25210iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main47312-37060iKDY22#,23#,25#,LY22#,23#..RHD200107-201610

main47312-37A80iKDY221,231,LY23#..RHD201610-202111

main47312-37C60iLY235..LHD201610

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10298iLY225,235..ST200107

main90413-10299iKDY22#,23#,25#,26#..EUR200108-201502

W(ABS)

main90413-10299iLY230201610-202111

main90414-10046iLY235..WT200107-200609

main90414-10052iKDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..(ARL,EUR)..IV3200107-201610

47312FTUBE, FRONT BRAKE, FRAME, NO.2

main47312-25220iLY230..SA200107-202111

main47312-25230iLY225,235200107

47313TUBE, FRONT BRAKE, NO.3

main47313-25220iKDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3200107-200708

main47313-25221iLY230200708-201610

main47313-25230iKDY22#,23#,25#,26#..EUR200108-200708

W(ABS)

main47313-25231iLY230201610-202111

main47313-25231iKDY221,231,251,261..EUR200708-201502

W(ABS)

main47313-25240iLY225,235200107

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02C66iLY225,235200107

main90947-02C70iKDY22#,23#,25#,26#,LY220,230200107-202111

RH

main90947-02C71iKDY22#,23#,25#,26#,LY220,230200107-202111

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iKDY221,231,LY230..GEN,SA200107-202111

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iKDY221,231,LY230..GEN,SA200107-202111

47314TUBE, FRONT BRAKE, NO.4

main47314-25250iKDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..(ARL,EUR)..IV3200107-201610

main47314-25260iKDY22#,23#,25#,26#..EUR200108-201502

W(ABS)

main47314-25260iLY230201610-202111

main47314-25270iLY225,235200107

47321TUBE, REAR BRAKE, NO.1

main47321-25270iKDY22#,23#,25#,LY22#,23#..RHD200107-201610

main47321-25280iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main47321-37572iKDY221,231,LY23#..RHD201610-201808

sub47321-37740

main47321-37622iLY235..LHD201610

main47321-37740iKDY221,231,LY23#..RHD201809-202111

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10229iKDY22#,23#,25#,26#,LY22#,23#..ARL,EUR,GEN200107-202111

47322TUBE, REAR BRAKE, NO.2

main47322-25180iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main47322-37200iKDY22#,23#,25#,LY22#,23#..RHD200107-201610

main47322-37A91iKDY221,231,LY23#..RHD201610-202111

sub47322-37A92

main47322-37C10iLY235..LHD201610

47323TUBE, REAR BRAKE, NO.3

main47323-25200iLY225,235200107

main47323-25210iKDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3200107

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-25110iLY235..WT200107-200609

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-25110iLY235..WT200107-200609

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-25030iKDY22#,23#,25#,26#,LY220,230200107-202111

main47354-25040iLY225,235200107

47371ACLAMP, BRAKE TUBE, NO.1

main47371-37020iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main47371-37030iKDY22#,23#,25#,LY22#,23#..RHD200107-201610

main47371-37150iKDY221,231,LY23#..RHD201610-202111

main47371-37190iLY235..LHD201610

47371CCLAMP, BRAKE TUBE, NO.7

main47371-37160iKDY221,231,LY23#..RHD201610-202111

main90480-01275iKDY22#,23#,25#,26#,LY22#,23#200107-201610

47371DCLAMP, BRAKE TUBE, NO.8

main47371-37200iLY235..LHD201610

main90480-01623iKDY22#,23#,25#,26#,LY225,235..LHD200201-201610

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01C84iLY230..SA200107-202111

47375CLAMP, BRAKE TUBE, NO.5

main47371-25020iLY235..WT200107-200609

4725637020GROMMET, CAP

main47256-37020

4737137110BRACKET, CONNECTOR

main47371-37110

9046400726

main90464-00726

9046808035

main90468-08035

9048001054

main90480-01054

9048001275

main90480-01275

9094901A02

main90949-01A02

9094901C58

main90949-01C58

9094901C78

main90949-01C78

9095901605

main90959-01605

9095901616

main90959-01616

91611G0820

main91611-G0820

9165160816

main91651-60816

91651B0822

main91651-B0822

9413000802

main94130-00802

39 parts on this diagram · 11 diagrams in section
