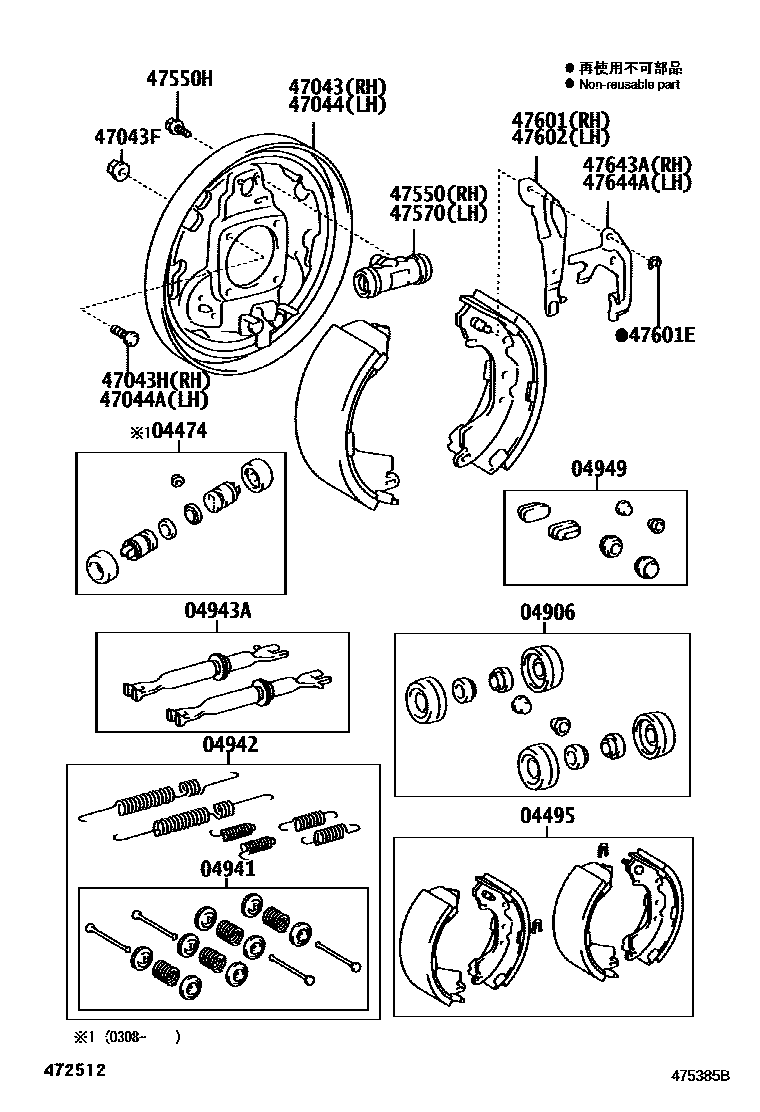

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1 0005 1W(ABS)

04474CYLINDER KIT, REAR WHEEL

main04468-25010iLY235..ST200111

LH

main04468-25020iKDY221,231,LY235..WT..CBU200111

LH

main04468-37060iKDY23#,25#,26#,LY230..WT..IV3200308-202111

LH

main04474-25050iLY235..ST200111

RH

main04474-25060iKDY221,231,LY235..WT..CBU200111

RH

main04474-35090iKDY22#,23#,LY22#..ST200308-201609

main04474-37270iKDY23#,25#,26#,LY230..WT..IV3200308-202111

RH

04495SHOE KIT, REAR BRAKE

main04494-25040iKDY221,231,LY235..WT..CBU200107

MARK NBK LN508

main04494-25050iLY235..ST200107-200111

MARK NBK LN508

sub04494-25080

main04494-25080iLY235..ST200111

MARK NBK LN508

main04494-36280iKDY23#,25#,26#..WT..IV3200108-201502

MARK AK LA514,W(ABS)

main04494-36280iLY230201610-202111

MARK AK LA514

main04495-25120iKDY22#,23#,LY22#..ST200107-201609

MARK NBK LN525

main04495-25130iKDY23#,25#,26#,LY230..WT..IV3200107-201610

MARK NBK LN503

04906CUP KIT, REAR WHEEL CYLINDER

main04906-25020iKDY221,231,LY235..WT..CBU200107

main04906-25030iKDY23#,25#,26#,LY230..WT..IV3200107-202111

main04906-25060iLY235..ST200107

main04906-35120iKDY22#,23#,LY22#..ST200107-201609

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-25010iLY235;KDY221,23#,25#,26#,LY230..WT..(ARL,EUR,GEN)200107-201610

main04941-25030iLY230201610-202111

main04941-25030iKDY23#,25#,26#..WT..IV3200108-201502

W(ABS)

main04941-25040iKDY22#,23#,LY22#..ST200107-201609

04942SPRING KIT, REAR BRAKE

main04942-25010iKDY221,231,LY235..WT..CBU200107

main04942-25030iKDY23#,25#,26#,LY230..WT..IV3200107-201610

main04942-25040iLY230201610-202111

main04942-25040iKDY23#,25#,26#..WT..IV3200108-201502

W(ABS)

main04942-25050iLY235..ST200107

main04942-25070iKDY22#,23#,LY22#..ST200107-201609

04943ASTRUT KIT, REAR BRAKE

main04943-25020iKDY22#,23#,LY22#..ST200107-201609

04949PLUG KIT, REAR BRAKE

main04949-13010iKDY22#,23#,LY22#..ST200107-201609

main04949-25010iLY235..WT200107-200111

sub04949-25030

main04949-25020iLY235..ST;KDY230,250,260,LY230..WT200107-200111

sub04949-25040

main04949-25030iKDY221,231,LY235..WT..CBU200111

main04949-25040iLY235..ST;KDY23#,25#,26#,LY230..WT..(ARL,EUR)200111-202111

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-25080iKDY221,231,LY235..WT..CBU200107

main47043-25110iKDY23#,25#,26#,LY230..WT..IV3200107-201610

main47043-25180iLY235..ST200107

main47043-35160iKDY22#,23#,LY22#..ST200107-201609

main47043-37050iLY230201610-202111

main47043-37050iKDY23#,25#,26#..WT..IV3200108-201502

W(ABS)

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10021iKDY221,231,LY235..WT..CBU200107

main90179-10041iKDY22#,23#,LY22#..ST200107-201609

main90179-12118iLY235..ST200107

main94130-01002iKDY23#,25#,26#,LY230..WT..IV3200107-202111

main94130-01002iKDY23#,25#,26#..WT..IV3200108-201502

W(ABS)

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90101-10028iKDY221,231,LY235..WT..CBU200107

main90114-10002iKDY22#,23#,LY22#..ST200107-201609

main90114-10063iKDY23#,25#,26#,LY230..WT..IV3200107-202111

main90114-10063iKDY23#,25#,26#..WT..IV3200108-201502

W(ABS)

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-25050iKDY221,231,LY235..WT..CBU200107

main47044-25080iKDY23#,25#,26#,LY230..WT..IV3200107-201610

main47044-25150iLY235..ST200107

main47044-35150iKDY22#,23#,LY22#..ST200107-201609

main47044-37050iLY230201610-202111

main47044-37050iKDY23#,25#,26#..WT..IV3200108-201502

W(ABS)

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90101-10028iKDY221,231,LY235..WT..CBU200107

main90114-10002iKDY22#,23#,LY22#..ST200107-201609

main90114-10063iKDY23#,25#,26#,LY230..WT..IV3200107-202111

main90114-10063iKDY23#,25#,26#..WT..IV3200108-201502

W(ABS)

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-25071iKDY221,231,LY235..WT..CBU200107

main47550-25091iLY235..ST200107

main47550-26110iKDY22#,23#,LY22#..ST200107-201609

main47550-37090iKDY230,250,260,LY230..WT200107-200209

sub47550-37091

main47550-37091iKDY23#,25#,26#,LY230..WT..IV3200209-202111

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-08081iLY230..SA200107-202111

main90119-06084iKDY22#,23#,LY22#..ST200107-201609

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26110iKDY22#,23#,LY22#..ST200107-201609

main47570-25071iKDY221,231,LY235..WT..CBU200107

main47570-25091iLY235..ST200107

main47570-37050iKDY230,250,260,LY230..WT200107-200209

sub47570-37051

main47570-37051iKDY23#,25#,26#,LY230..WT..IV3200209-202111

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47612-35040iKDY22#,23#,LY22#..ST200107-201609

47601ERING, E(FOR REAR BRAKE)

main96160-00500iKDY22#,23#,LY22#..ST200107-201609

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47611-35040iKDY22#,23#,LY22#..ST200107-201609

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47644-60010iKDY22#,23#,LY22#..ST200107-201609

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-60010iKDY22#,23#,LY22#..ST200107-201609

20 parts on this diagram · 5 diagrams in section
