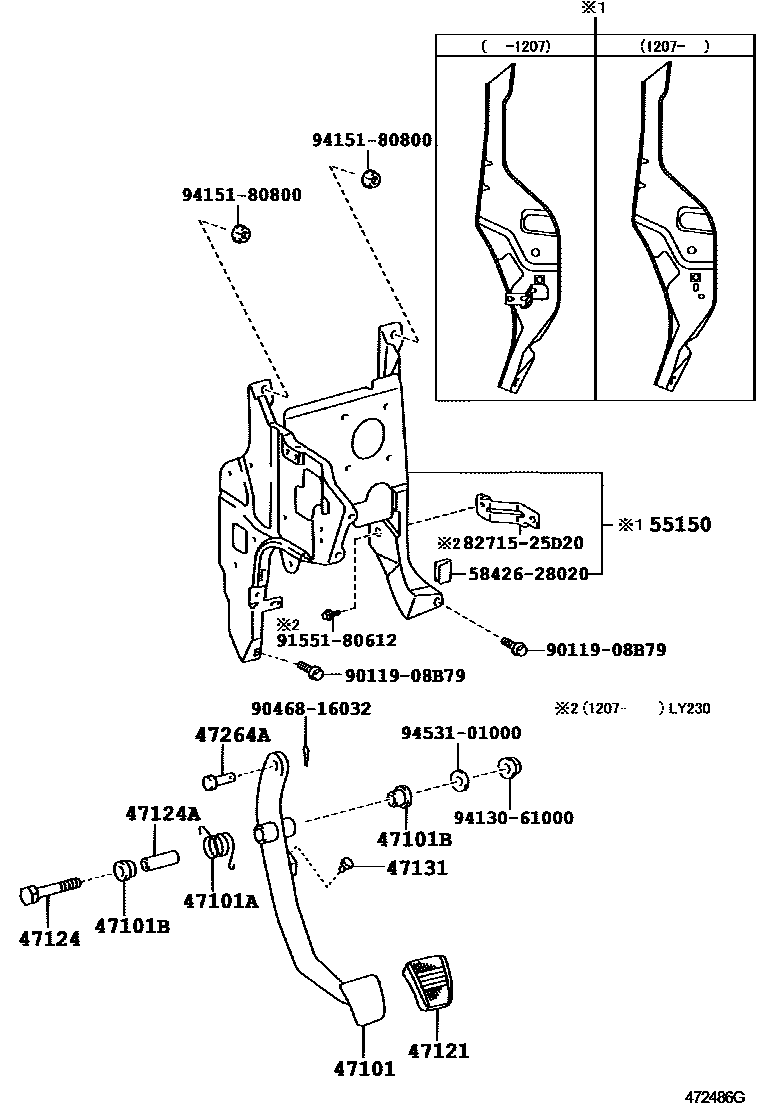

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-25080iKDY220..RHD..CBU;KDY221,23#,25#,LY22#,23#..RHD200107-201610

main47101-25090iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main47101-37130iKDY221,231,LY23#201610-201703

sub47101-37131

main47101-37131iKDY221,231,LY23#201704-202111

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35039iKDY221,231,LY23#201610-202111

main90949-03109iKDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23#200107-201610

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iKDY220..RHD..IV3200107-202111

47121PAD, BRAKE PEDAL

main31321-14020iKDY220..RHD..IV3200107-201704

main31321-52020iKDY221,231,LY23#201704-202111

47124SHAFT, BRAKE PEDAL

main91112-61070iKDY220..RHD..IV3200107-202111

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iKDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23#200107-202111

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iKDY220..RHD..IV3200107-202111

47264APIN(FOR PUSH ROD)

main90240-10037iKDY220..RHD..IV3200107-202111

55150BRACKET ASSY, PEDAL

main55150-25020iKDY220,230,250,LY22#,23#..RHD200107-200201

sub55150-25021

main55150-25021iKDY221,231..GEN;KDY220,230,250,LY22#,23#..RHD200201-200905

main55150-25030iKDY220,230,250,260,LY225,235..LHD200107-200905

main55150-25040iKDY221,231,251..RHD..EUR200808-201207

sub55150-25060

sub82715-25D20

sub91551-80612

main55150-25050iKDY221,231,251,261..LHD200808-201610

main55150-25060iKDY221,231,251,LY225,23#..RHD201207-201610

main55150-37320iKDY221,231,LY23#..RHD201610-202111

main55150-37400iLY235..LHD201610

5842628020NUT, BATTERY SERVICE HOLE COVER

main58426-28020

8271525D20BRACKET,WIRING HARNESS CLAMP

main82715-25D20

9011908B79

main90119-08B79

9046816032

main90468-16032

9155180612

main91551-80612

9413061000

main94130-61000

9415180800

main94151-80800

9453101000

main94531-01000

17 parts on this diagram · 2 diagrams in section
