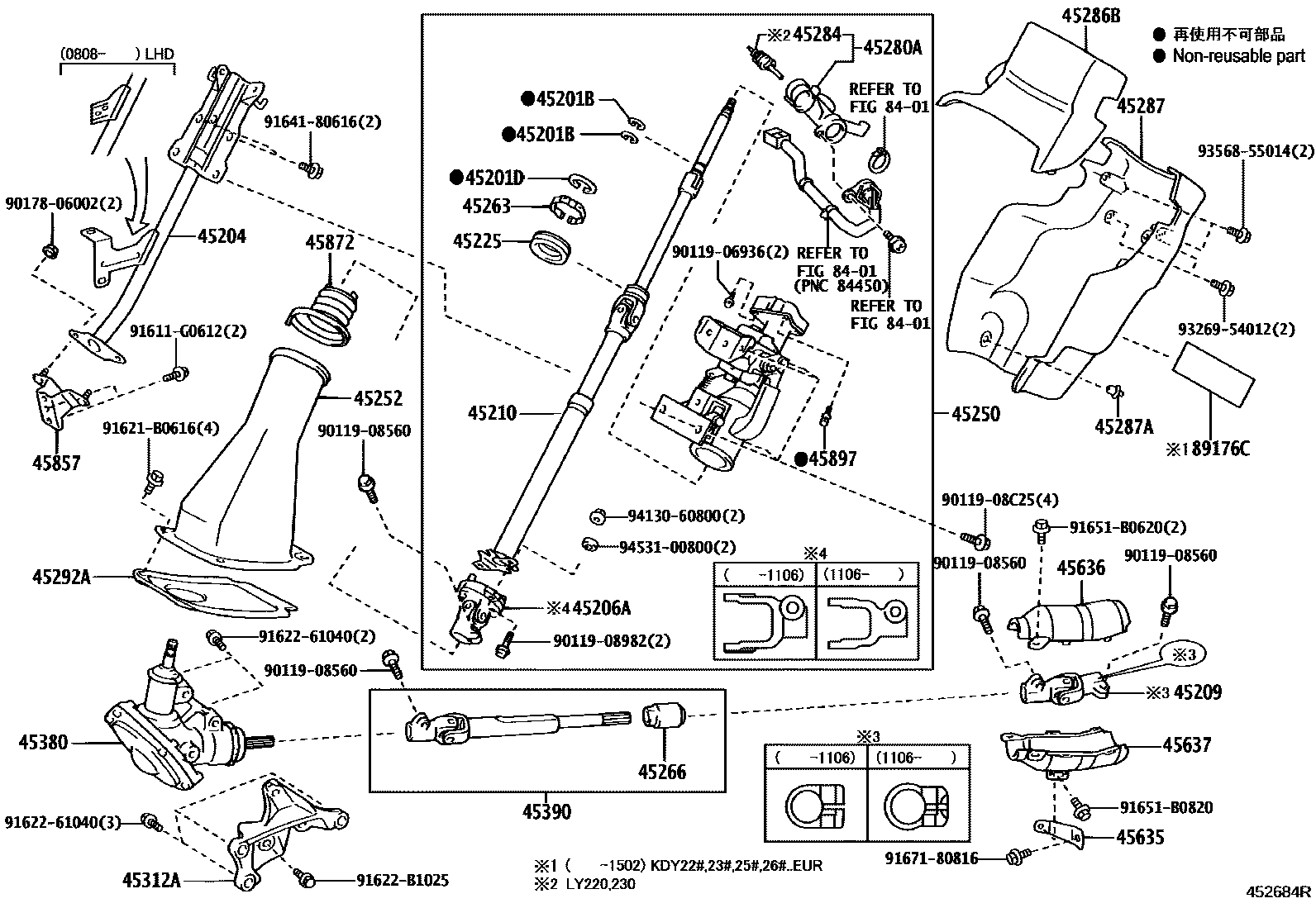

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17269iKDY22#,23#,25#,26#,LY22#,23#200107

T=1.20

45201DRING(FOR STEERING MAIN SHAFT)

main90520-28065iKDY220,230,250,260,LY22#,23#200107-200408

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-25030iKDY22#,23#,25#,26#,LY225,235..LHD200107-200808

main45204-25040iKDY221,231,251,261,LY225,235..LHD200808

main45204-37130iKDY22#,23#,25#,LY22#,23#..RHD200107

45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING

main45206-25020iKDY221,231,251,261,LY230201107-201610

main45206-37020iKDY22#,23#,25#,26#,LY220,230200107-201107

main45206-37050iKDY221,231,LY230201610-202111

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-14020iKDY22#,23#,25#,26#,LY220,230200107-201107

main45209-25030iKDY221,231,251,261,LY230201107-202111

45210SHAFT ASSY, STEERING MAIN

main45210-25030iLY225,235..ST200107-200408

main45210-25031iLY225,235..ST200408

main45210-37080iLY235..WT200107-200408

main45210-37090iKDY220,230,250,260,LY220,230200107-200408

main45210-37180iLY235..WT200408-200609

main45210-37190iKDY22#,23#,25#,26#,LY220,230200408-201610

45225BLOCK, BEARING

main45225-26010iKDY220,230,250,260,LY22#,23#200107-200408

main45274-37020iKDY22#,23#,25#,26#,LY22#,23#200408

45250COLUMN ASSY, STEERING

main45250-25630iKDY220,230,250,260200108-200407

sub45250-25631

main45250-25631iKDY22#,23#,25#,26#..EUR200408-201107

main45250-25640iLY235..WT200107-200407

sub45250-25641

main45250-25641iLY235..WT200408-200609

main45250-25650iLY225,235..ST200107-200407

sub45250-25651

main45250-25651iLY225,235..ST200408-201610

main45250-25660iLY220,230200107-200407

sub45250-25661

main45250-25661iLY220,230200408-201107

main45250-25670iKDY221,231..GEN200609-201107

main45250-25710iLY230201107-201610

main45250-25720iKDY221,231,251,261..EUR201107-201502

main45250-25730iKDY221,231..GEN201107-201610

main45250-37C12-C0iLY235201610

BLACK,TRIM1#

main45250-37E32-C0iKDY221,231,LY230201610-202111

BLACK,TRIM1#

45252TUBE, STEERING COLUMN, LOWER

main45252-37030-B0iKDY22#,23#,25#,LY22#,23#..RHD200107-200909

MD.CHARCOAL,TRIM1#

sub45252-37031

main45252-37031-B0iKDY221,231,251,LY225,23#..RHD200910-201505

MD.CHARCOAL,TRIM1#

main45252-37031-C0iKDY221,231,LY225,23#..RHD201505-201610

BLACK,TRIM1#

main45252-37040-B0iKDY22#,23#,25#,26#,LY225,235..LHD200107-200909

MD.CHARCOAL,TRIM1#

sub45252-37041

main45252-37041-B0iKDY221,231,251,261,LY225,235..LHD200910-201505

MD.CHARCOAL,TRIM1#

main45252-37041-C0iLY225,235..LHD201505-201610

BLACK,TRIM1#

main45252-37050-C0iKDY221,231,LY23#..RHD201610-202111

BLACK,TRIM1#

main45252-37070-C0iLY235..LHD201610

BLACK,TRIM1#

45263RING, STEERING COLUMN, NO.1

main45263-32010iKDY220,230,250,260,LY22#,23#200107-200408

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-12020iKDY22#,23#,25#,26#,LY220,230200107-202111

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-25050iLY235..WT;KDY22#,23#,25#,26#200107-201610

main45280-37100iLY220,230200107-201610

main45280-37140iKDY221,231201610

main45280-E0010iLY23#201610-202111

main45307-36230iLY225,235..ST200107-201610

45284SHAFT, STEERING LOCK CAM

main45284-37010iLY220,230200107-201610

main45284-37020iKDY221,231201610

45286BCOVER, STEERING COLUMN, UPR

main45286-25160-B0iLY225,235..RHD..ST200107-200909

MD.CHARCOAL,TRIM1#

sub45286-25161

main45286-25161-B0iLY225,235..RHD200910-201505

MD.CHARCOAL,TRIM1#

main45286-25161-C0iLY225,235..RHD201505-201610

BLACK,TRIM1#

main45286-25170-B0iLY225,235..LHD200107-200909

MD.CHARCOAL,TRIM1#

sub45286-25171

main45286-25171-B0iLY225,235..LHD200910-201505

MD.CHARCOAL,TRIM1#

main45286-25171-C0iLY225,235..LHD201505-201610

BLACK,TRIM1#

main45286-37080-B0iLY235..WT;KDY221,231,LY220,230..ARL,GEN,SA200107-200909

MD.CHARCOAL,TRIM1#

sub45286-37081

main45286-37081-B0iKDY221,231,LY230..GEN,SA200910-201505

MD.CHARCOAL,TRIM1#

main45286-37081-C0iKDY221,231,LY230201505-201610

BLACK,TRIM1#

main45286-37090-B0iKDY22#,23#,25#,26#..EUR200108-200909

MD.CHARCOAL,TRIM1#

sub45286-37091

main45286-37091-B0iKDY221,231,251,261..EUR200910-201502

MD.CHARCOAL,TRIM1#

main45286-37130-C0iKDY221,231,LY23#201610-202111

BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-25050-B0iLY225,235..RHD..ST200107-200909

MD.CHARCOAL,TRIM1#

sub45287-25051

main45287-25051-B0iLY225,235..RHD200910-201505

MD.CHARCOAL,TRIM1#

main45287-25051-C0iLY225,235..RHD201505-201610

BLACK,TRIM1#

main45287-25060-B0iLY225,235..LHD200107-200909

MD.CHARCOAL,TRIM1#

sub45287-25061

main45287-25061-B0iLY225,235..LHD200910-201505

MD.CHARCOAL,TRIM1#

main45287-25061-C0iLY225,235..LHD201505-201610

BLACK,TRIM1#

main45287-37080-B0iLY235..WT;KDY221,231,LY220,230..ARL,GEN,SA200107-200909

MD.CHARCOAL,TRIM1#

sub45287-37081

main45287-37081-B0iKDY221,231,LY230..GEN,SA200910-201505

MD.CHARCOAL,TRIM1#

main45287-37081-C0iKDY221,231,LY230201505-201610

BLACK,TRIM1#

main45287-37090-B0iKDY22#,23#,25#,26#..EUR200108-200909

MD.CHARCOAL,TRIM1#

sub45287-37091

main45287-37091-B0iKDY221,231,251,261..EUR200910-201502

MD.CHARCOAL,TRIM1#

main45287-37120-C0iKDY221,231,LY23#201610-202111

BLACK,TRIM1#

45287ACLIP(FOR STEERING COLUMN COVER)

main90467-07041-B8iKDY22#,23#,25#,26#,LY22#,23#200107-201505

MD.CHARCOAL,TRIM1#

sub90467-07041

main90467-07041-C0iKDY221,231,LY225,23#201505

BLACK,TRIM1#

sub90467-07041

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-37010iKDY22#,23#,25#,26#,LY225,235..LHD200107

main45292-37030iKDY221,231,LY230..GEN,SA200107-202111

45312ABRACKET, STEERING BEVEL GEAR HOUSING

main45312-25190iKDY22#,23#,25#,LY220,230..RHD200107-202111

main45312-25200iKDY22#,23#,25#,26#..LHD200108-201502

45380GEAR ASSY, STEERING BEVEL

main45380-25010iKDY221,231,251,261,LY230201107-202111

main45380-37020iKDY22#,23#,25#,26#,LY220,230200107-201107

45390SHAFT ASSY, STEERING TORQUE

main45390-25010iKDY22#,23#,25#,26#,LY220,230200107-202002

sub45390-25011

main45390-25011iKDY221,231,LY230202003-202111

45635SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR

main45635-25010iKDY22#,23#,25#,LY220,230..RHD200107-202111

main45635-25020iKDY22#,23#,25#,26#..LHD200108-201502

45636PROTECTOR, INTERMEDIATE LINK JOINT, UPPER

main45636-25010iKDY22#,23#,25#,LY220,230..RHD200107-202111

main45636-25020iKDY22#,23#,25#,26#..LHD200108-201502

45637PROTECTOR, INTER LINK JOINT, LWR NO.1

main45637-25010iKDY22#,23#,25#,LY220,230..RHD200107-202111

main45637-25020iKDY22#,23#,25#,26#..LHD200108-201502

45857BRACKET, TILT STEERING COLUMN TUBE, NO.1

main45857-37020iKDY22#,23#,25#,LY22#,23#..RHD200107

main45857-37040iKDY22#,23#,25#,26#,LY225,235..LHD200107

45872COVER, STEERING COLUMN TUBE

main45872-37010iKDY22#,23#,25#,26#,LY22#,23#200107-201610

main45872-37020iKDY221,231,LY23#201610-202111

45897BOLT, STEERING LOCK SET

main45897-12030iLY22#,23#200107-200202

main45897-25010iLY230..SA200108-201610

main45897-E0020iLY23#201610-202111

8401

89176CLABEL, AIRBAG SENSOR COVER CAUTION

main89176-26020iKDY22#,23#,25#,26#..EUR200108-201502

9011906936

main90119-06936

9011908560

main90119-08560

9011908982

main90119-08982

9011908C25

main90119-08C25

9017806002

main90178-06002

91611G0612

main91611-G0612

91621B0616

main91621-B0616

9162261040

main91622-61040

91622B1025

main91622-B1025

9164180616

main91641-80616

91651B0620

main91651-B0620

91651B0820

main91651-B0820

9167180816

main91671-80816

9326954012

main93269-54012

9356855014

main93568-55014

9413060800

main94130-60800

9453100800

main94531-00800

45 parts on this diagram · 5 diagrams in section
