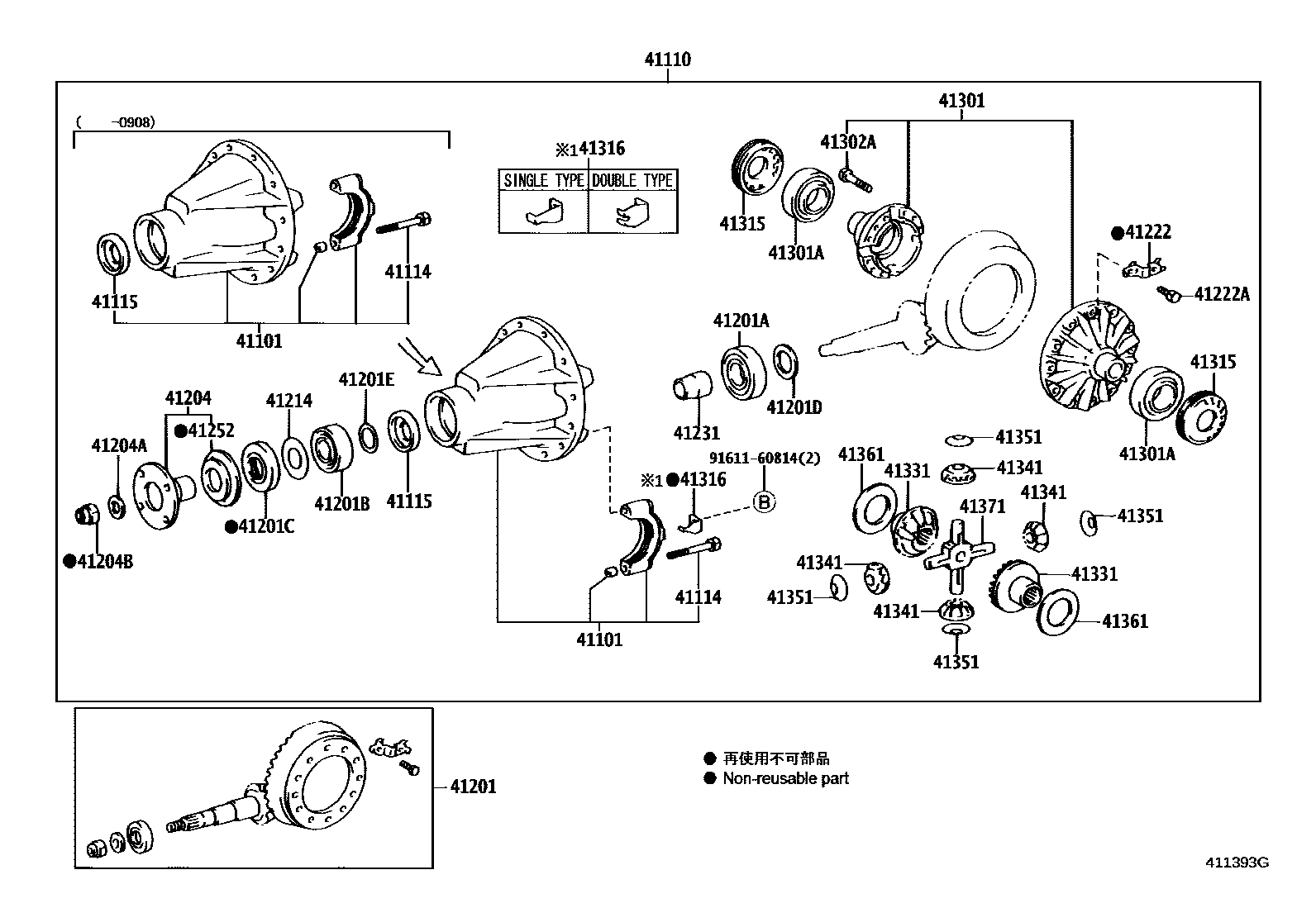

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0003 1 0004 1 0005 1 0006 1 0008 1W(LSD) 0009 1 0010 1 0011 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-0C020iKDY231,251,261..WT..IV3200903-201502

main41101-25020iLY235..ST200202

main41101-35170iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107-200908

sub41101-35171

sub41115-35010

main41101-35171iKDY231..CBU;KDY221,LY225;KDY231..ST..IV3200908-201604

sub41101-35172

main41101-35172iKDY221,231,LY225201604

main41101-37010iKDY230,250,260,LY230..WT200107-202111

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-0C100iKDY231,251,261..WT..IV3200903-201502

*FGR=41:10=4.100

main41110-25330iKDY230,250,260,LY230..WT200107-201104

*FGR=43:10=4.300

sub41110-25331

main41110-25331iLY230201104-202111

*FGR=43:10=4.300

main41110-25350iLY235..ST200107-200202

*FGR=39:8=4.875

sub41110-25351

main41110-25351iLY235..ST200202-200610

*FGR=39:8=4.875

sub41110-25420

main41110-25420iLY235200610-201505

*FGR=39:8=4.875

sub41110-25421

main41110-25421iLY235201505

*FGR=39:8=4.875

main41110-25450iKDY221,231..GEN201307-201607

*FGR=43:12=3.583

sub41110-25451

main41110-25451iKDY221,231201608

*FGR=43:12=3.583

main41110-25500iLY225201001-201607

*FGR=41:9=4.555

sub41110-25501

main41110-25501iLY225201608-201609

*FGR=41:9=4.555

main41110-25510iKDY221,231..ST201001-201502

*FGR=41:11=3.727

sub41110-25511

main41110-25520iKDY221,231..ST201001-201109

*FGR=43:11=3.909

sub41110-25521

main41110-25530iKDY231..ST;KDY221..IV3201001-201109

*FGR=43:11=3.909,W(LSD)

sub41110-25531

main41110-26430iKDY220,230,LY220..ST200107-200610

*FGR=41:10=4.100

sub41110-26431

main41110-35870iKDY221,231..GEN200609-201001

*FGR=41:11=3.727

sub41110-35871

main41110-35880iLY235..WT;KDY221,231..ST200107-201001

*FGR=43:11=3.909

sub41110-25520

main41110-3D050iKDY231..ST;KDY221..IV3200609-201001

*FGR=43:11=3.909,W(LSD)

sub41110-3D051

main41110-3D060iKDY230..ST;KDY220..IV3200108-200610

*FGR=41:10=4.100,W(LSD)

sub41110-3D061

main41110-3D240iKDY231..ST;KDY221..IV3201109-201502

*FGR=41:11=3.727,W(LSD)

sub41110-3D241

main41110-3D260iLY225200107-201001

*FGR=41:9=4.555

sub41110-3D261

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main41114-60020iLY235200610

main90105-12053iLY235..ST200107-200610

main90105-16022iKDY231,251,261..WT..IV3200107-202111

41115RING, DIFFERENTIAL OIL STORAGE

main41115-0C010iKDY231,251,261..WT..IV3200903-201502

main41115-35010iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

main41115-37010iKDY231,251,261..WT..IV3200107-201104

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-09A20iKDY231,251,261..WT..IV3200903-201502

*FGR=41:10=4.100

main41201-80068iKDY220,230,LY220..ST200107-200201

*FGR=41:10=4.100

sub41201-80179

sub41204-35081

sub41214-26011

main41201-80100iLY235..WT200107-200201

*FGR=43:11=3.909

sub41201-80177

sub41204-35081

sub41214-26011

main41201-80105iLY225200107-200201

*FGR=41:9=4.555

sub41201-80182

sub41204-35081

sub41214-26011

main41201-80164iLY235..ST200107-200202

*FGR=39:8=4.875

sub41201-80200

sub41204-35100

sub41214-26011

main41201-80165iKDY230,250,260,LY230..WT200107-200408

*FGR=43:10=4.300

sub41201-80580

main41201-80177iLY235..WT;KDY221,231..ST200408-201001

*FGR=43:11=3.909

sub41201-80723

main41201-80179iKDY220,230,LY220..ST200201-200610

*FGR=41:10=4.100

sub41201-80724

main41201-80182iLY225200308-201001

*FGR=41:9=4.556

sub41201-80732

main41201-80189iKDY221,231..GEN200308-200712

*FGR=41:11=3.727

main41201-80200iLY235..ST200202-200609

*FGR=39:8=4.875

sub41201-80495

sub41204-60060

sub41214-60020

sub90366-33006

sub90366-40111

main41201-80375iKDY231,251,261..WT..IV3200408-200912

*FGR=43:10=4.300

sub41201-80580

main41201-80458iKDY221,231..ST201001-201109

*FGR=43:11=3.909

main41201-80495iLY235200609-201505

*FGR=39:8=4.875

main41201-80541iKDY221,231..GEN201001-201307

*FGR=41:11=3.727

main41201-80541iKDY221,231..ST201109-201502

*FGR=41:11=3.727,W(LSD)

main41201-80557iKDY221,231..GEN201307-201608

*FGR=43:12=3.583

main41201-80564iKDY221,231..GEN200712-201001

*FGR=41:11=3.727

main41201-80580iLY230201001-201107

*FGR=43:10=4.300

sub41201-80581

sub41204-36090

sub41204-37100

main41201-80581iLY230201107-202111

*FGR=43:10=4.300

main41201-80599iLY235201505

*FGR=39:8=4.875

main41201-80680iLY225201001-201608

*FGR=41:9=4.555

main41201-80805iKDY221,231201608-201907

*FGR=43:12=3.583

main41201-80822iLY225201608-201609

*FGR=41:9=4.555

main41201-80A16iKDY221,231201907

*FGR=43:12=3.583

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35087iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

main90366-40088iLY235..ST200107-200610

main90366-40100iKDY230,250,260,LY230..WT200107-202111

main90366-40111iLY235200610

main90366-A0017iKDY231,251,261..WT..IV3200903-201502

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30067iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107-201203

main90366-30071iLY235..ST200107-200610

main90366-30105iKDY231..CBU;KDY221,LY225;KDY231..ST..IV3201203

main90366-33006iLY235200610

main90366-35108iKDY231,251,261..WT..IV3200107-202111

main90366-A0023iKDY231,251,261..WT..IV3200903-201502

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38047iLY235..WT;KDY220,230,LY22#..ST200107-200201

main90311-38066iLY235..ST200107-200202

main90311-41009iKDY221..EUR..CBU201001-201608

PNC 41252=TYPE A

main90311-41009iKDY221,231,LY225..GEN200201-201109

main90311-41018iKDY221,231,LY225201608

PNC 41252=TYPE B

main90311-45028iLY235200610-201505

main90311-45036iLY235201505

main90311-48019iKDY230,250,260,LY230..WT200107-200404

sub90311-48024

main90311-48024iKDY231,251,261..WT..IV3200404-202111

main90311-A0008iKDY231,251,261..WT..IV3200903-201502

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=1.70

main90201-35498iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=1.73

main90201-35499iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=1.76

main90201-35500iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=1.79

main90201-35501iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=1.82

main90201-35502iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=1.85

main90201-35503iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=1.88

main90201-35504iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=1.91

main90201-35505iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=1.94

main90201-35506iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=1.97

main90201-35507iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=2.00

main90201-35508iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=2.03

main90201-35509iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=2.06

main90201-35510iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=2.09

main90201-35511iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=2.12

main90201-35512iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=2.15

main90201-35513iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=2.18

main90201-35514iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=2.21

main90201-35515iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=2.24,MARK 01

main90201-35516iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=2.27,MARK 02

main90201-35517iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=2.30,MARK 03

main90201-35518iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

OD=47,T=2.33,MARK 04

main90564-40004iLY235..ST200107-202111

T=1.05

main90564-40006iLY235..ST200107-202111

T=1.075

main90564-40007iKDY230,250,260,LY230..WT..(ARL,EUR)200107-202111

T=1.10

main90564-40008iKDY230,250,260,LY230..WT..(ARL,EUR)200107-202111

T=1.125

main90564-40009iKDY230,250,260,LY230..WT..(ARL,EUR)200107-202111

T=1.15

main90564-40010iLY235..ST200107-202111

T=1.175

main90564-40011iKDY231,251,261..WT..IV3200107-202111

T=1.20

main90564-40012iLY235..ST200107-202111

T=1.225

main90564-40013iLY235..ST200107-202111

T=1.25

main90564-40014iKDY230,250,260,LY230..WT..(ARL,EUR)200107-202111

T=1.275

main90564-40015iLY235..ST200107-202111

T=1.30

main90564-40016iKDY231,251,261..WT..IV3200107-202111

T=1.325

main90564-40017iLY230..SA200107-202111

T=1.35

main90564-40018iLY235..ST200107-202111

T=1.375

main90564-40019iLY235..ST200107-202111

T=1.40

main90564-40020iLY235..ST200107-202111

T=1.425

main90564-40021iKDY230,250,260,LY230..WT..(ARL,EUR)200107-202111

T=1.45

main90564-40022iLY235..ST200107-202111

T=1.475

main90564-40023iLY230..SA200107-202111

T=1.50

main90564-40024iLY235..ST200107-202111

T=1.525

main90564-40025iLY230..SA200107-202111

T=1.55

main90564-A0022iKDY231,251,261..WT..IV3200903-201502

T=1.90

main90564-A0023iKDY231,251,261..WT..IV3200903-201502

T=2.00

main90564-A0024iKDY231,251,261..WT..IV3200903-201502

T=2.10

main90564-A0025iKDY231,251,261..WT..IV3200903-201502

T=2.20

main90564-A0026iKDY231,251,261..WT..IV3200903-201502

T=2.30

main90564-A0027iKDY231,251,261..WT..IV3200903-201502

T=2.40

main90564-A0028iKDY231,251,261..WT..IV3200903-201502

T=2.50

main90564-A0029iKDY231,251,261..WT..IV3200903-201502

T=2.60

main90564-A0030iKDY231,251,261..WT..IV3200903-201502

T=2.70

main90564-A0031iKDY231,251,261..WT..IV3200903-201502

T=2.80

main90564-A0032iKDY231,251,261..WT..IV3200903-201502

T=2.90

main90564-A0033iKDY231,251,261..WT..IV3200903-201502

T=3.00

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-35019iKDY230,250,260,LY230..WT200107-202111

T=1.80

main90564-35020iKDY231,251,261..WT..IV3200107-202111

T=1.82

main90564-35021iKDY230,250,260,LY230..WT200107-202111

T=1.84

main90564-35022iKDY231,251,261..WT..IV3200107-202111

T=1.86

main90564-35023iKDY231,251,261..WT..IV3200107-202111

T=1.88

main90564-35024iKDY231,251,261..WT..IV3200107-202111

T=1.90

main90564-35025iKDY230,250,260,LY230..WT200107-202111

T=2.00

main90564-35026iKDY231,251,261..WT..IV3200107-202111

T=2.10

main90564-35027iKDY231,251,261..WT..IV3200107-202111

T=2.20

main90564-35028iKDY231,251,261..WT..IV3200107-202111

T=2.30

main90564-35029iKDY230,250,260,LY230..WT200107-202111

T=2.40

main90564-35030iKDY230,250,260,LY230..WT200107-202111

T=2.50

main90564-35031iKDY230,250,260,LY230..WT200107-202111

T=2.60

main90564-35032iKDY231,251,261..WT..IV3200107-202111

T=2.70

main90564-35033iKDY230,250,260,LY230..WT200107-202111

T=2.80

main90564-35034iKDY230,250,260,LY230..WT200107-202111

T=2.90

main90564-35035iKDY230,250,260,LY230..WT200107-202111

T=3.00

main90564-35036iKDY231,251,261..WT..IV3200107-202111

T=1.81

main90564-35037iKDY230,250,260,LY230..WT200107-202111

T=1.83

main90564-35038iKDY230,250,260,LY230..WT200107-202111

T=1.85

main90564-35039iKDY231,251,261..WT..IV3200107-202111

T=1.87

main90564-35040iKDY230,250,260,LY230..WT200107-202111

T=1.89

main90564-A0034iKDY231,251,261..WT..IV3200903-201502

T=1.80

main90564-A0035iKDY231,251,261..WT..IV3200903-201502

T=1.81

main90564-A0036iKDY231,251,261..WT..IV3200903-201502

T=1.82

main90564-A0037iKDY231,251,261..WT..IV3200903-201502

T=1.83

main90564-A0038iKDY231,251,261..WT..IV3200903-201502

T=1.84

main90564-A0039iKDY231,251,261..WT..IV3200903-201502

T=1.85

main90564-A0040iKDY231,251,261..WT..IV3200903-201502

T=1.86

main90564-A0041iKDY231,251,261..WT..IV3200903-201502

T=1.87

main90564-A0042iKDY231,251,261..WT..IV3200903-201502

T=1.88

main90564-A0043iKDY231,251,261..WT..IV3200903-201502

T=1.89

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-0C030iKDY231,251,261..WT..IV3200903-201502

main41204-35080iLY235..WT;KDY220,230,LY22#..ST200107-200201

main41204-35081iLY235..WT;KDY220,230,LY22#..ST200201-200405

sub41204-35082

main41204-35082iKDY231..CBU;KDY221,LY225..GEN;KDY221,231..ST..IV3201001-201608

PNC 41252=TYPE A

main41204-35082iKDY221,231,LY225..GEN200405-201109

main41204-35083iKDY221,231,LY225201608

PNC 41252=TYPE B

main41204-35100iLY235..ST200202-200610

main41204-36090iLY230201104-202111

main41204-37010iKDY231,251,261..WT..IV3200107-201104

main41204-60050iLY235..ST200107-200202

main41204-60060iLY235200610-201505

sub41204-60080

sub90311-45036

main41204-60080iLY235201505

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-23002iKDY23#,25#,26#,LY230..WT..IV3200107-200802

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200201

OD=39.5

main90179-20018iLY235..WT;KDY220,230,LY22#..ST200107-200201

OD=37

main90179-22003iKDY23#,25#,26#,LY230..WT..IV3200107-200802

OD=29

main90179-22029iKDY231,251,261,LY230..WT..IV3200802-202111

OD=43

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-0C020iKDY231,251,261..WT..IV3200903-201502

main41214-26010iLY235..WT;KDY220,230,LY22#..ST200107-200202

main41214-26011iLY235..ST200201-200610

main41214-37010iKDY231,251,261..WT..IV3200107-202111

main41214-60020iLY235200610

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107-202001

main41222-36020iKDY231,251,261..WT..IV3200107-202111

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107-202001

TYPE A:REFER ILLUST.

main90101-14315iKDY230,250,260,LY230..WT200107-202111

main90105-11063iKDY221,231202001

TYPE B:REFER ILLUST.

main90105-14183iKDY231,251,261..WT..IV3200903-201502

main90901-05002iLY235..ST200202

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

main41231-34030iKDY231,251,261..WT..IV3200903-201502

main41231-36040iKDY231,251,261..WT..IV3200107-202111

main41231-60030iLY235..ST200107-200610

main41231-60040iLY235200610

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-0C020iKDY231,251,261..WT..IV3200903-201502

main41252-35040iLY235..WT;KDY220,230,LY22#..ST200107-200202

main41252-35041iKDY231..CBU;KDY221,LY225..GEN;KDY221,231..ST..IV3201001-201608

TYPE A:REFER ILLUST.

main41252-35041iLY235..ST200201-201109

main41252-37020iKDY231,251,261..WT..IV3200107-202111

main41252-71040iKDY221,231,LY225201608

TYPE B:REFER ILLUST.

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-36030iKDY231,251,261..WT..IV3200107-202111

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

main90366-50054iLY235..ST200107-201702

sub90366-50177

main90366-50177iLY235201702

main90366-52004iKDY230,250,260,LY230..WT200107-202111

main90366-A0020iKDY231,251,261..WT..IV3200903-201502

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-60080iLY235..ST200202

main41302-26010iKDY221,231202005

main41302-35020iKDY221;LY235..WT;KDY231..CBU;KDY231..ST..IV3200107-202004

sub41302-26010

main41302-35040iKDY23#..ST;KDY22#..IV3200108-201502

W(LSD)

sub41302-35041

sub90105-11063

main41311-60060iKDY220,230,LY22#..ST200107-201609

sub41311-60061

sub90105-11063

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-10021iLY235..ST200202

main90105-10084iKDY221,231..GEN200107-201109

sub90105-10570

main90105-10570iKDY231..ST;KDY221..IV3201103

main90105-12087iKDY231,251,261..WT..IV3200107-202111

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iLY235..ST200107

main41315-35020iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

main41315-36011iKDY230,250,260,LY230..WT200107-202111

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iLY235..ST200107

SINGLE TYPE

main41316-35010iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107

main41316-36011iKDY230,250,260,LY230..WT200107-202111

SINGLE TYPE

main41317-30010iLY235..ST200107

DOUBLE TYPE

main41317-36011iKDY231,251,261..WT..IV3200107-202111

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-35011iKDY220,230,LY22#..ST200107-201609

main41331-36020iKDY231,251,261..WT..IV3200107-202111

main41331-60060iLY235..ST200202

41341PINION, REAR DIFFERENTIAL

main41341-35020iKDY220,230,LY22#..ST200107-201609

main41341-55013iLY230..SA200107-202111

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052iKDY220,230,LY22#..ST200107-201609

main41351-30060iLY235..WT;KDY230..ST;KDY220..IV3200107-200610

W(LSD)

main41351-30060iKDY221;KDY231..CBU;KDY231..ST..IV3200609

main41351-34030iKDY231,251,261..WT..IV3200903-201502

main41351-35011iKDY230,250,260,LY230..WT200107-202111

main41351-60010iLY235..ST200202

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0C100iKDY231,251,261..WT..IV3200903-201502

T=1.55

main41361-0C110iKDY231,251,261..WT..IV3200903-201502

T=1.60

main41361-0C120iKDY231,251,261..WT..IV3200903-201502

T=1.65

main41361-0C130iKDY231,251,261..WT..IV3200903-201502

T=1.70

main41361-0C140iKDY231,251,261..WT..IV3200903-201502

T=1.75

main41361-0C150iKDY231,251,261..WT..IV3200903-201502

T=1.80

main41361-0C160iKDY231,251,261..WT..IV3200903-201502

T=1.85

main41361-0C170iKDY231,251,261..WT..IV3200903-201502

T=1.90

main41361-0C180iKDY231,251,261..WT..IV3200903-201502

T=1.95

main41361-14200iKDY230..ST;KDY220..IV3200108-200302

T=1.80

sub41361-14201

main41361-35161iKDY230..ST;KDY220..IV3200108-200610

T=1.8,W(LSD)

main41361-35161iKDY231..ST;KDY221..IV3200609-201502

T=1.8

main41361-35290iKDY230..ST;KDY220..IV3200108-200302

T=1.70,MARK N,W(LSD)

sub41361-35291

main41361-35291iKDY23#..ST;KDY22#..IV3200302-201502

T=1.70,MARK N

main41361-35310iKDY221;LY235..WT;KDY231..CBU;KDY231..ST..IV3200107

T=0.9

main41361-35320iKDY221;LY235..WT;KDY231..CBU;KDY231..ST..IV3200107

T=1.0

main41361-35330iKDY221;LY235..WT;KDY231..CBU;KDY231..ST..IV3200107

T=1.1

main41361-35340iKDY221;LY235..WT;KDY231..CBU;KDY231..ST..IV3200107

T=1.2

main41361-35350iKDY221;LY235..WT;KDY231..CBU;KDY231..ST..IV3200107

T=1.3

main41361-40021iKDY220,230,LY22#..ST200107-201609

T=1.6

main41361-60011iKDY230,250,260,LY230..WT200107-202111

T=1.60

main41361-60021iKDY231,251,261..WT..IV3200107-202111

T=1.75

main41361-60031iKDY231,251,261..WT..IV3200107-202111

T=1.90

main41361-60041iKDY230,250,260,LY230..WT200107-202111

T=2.05

main41361-60480iKDY231,251,261..WT..IV3200107-202111

T=1.55

main41361-60490iKDY231,251,261..WT..IV3200107-202111

T=1.65

main41361-60500iKDY231,251,261..WT..IV3200107-202111

T=1.70

main41361-60510iKDY230,250,260,LY230..WT200107-202111

T=1.80

main41361-60520iKDY231,251,261..WT..IV3200107-202111

T=1.85

main41361-60530iKDY230,250,260,LY230..WT200107-202111

T=1.95

main41361-60540iKDY230,250,260,LY230..WT200107-202111

T=2.00

main41361-60550iKDY230,250,260,LY230..WT200107-202111

T=2.10

main41361-60810iLY235..ST200107

T=1.550

main41361-60830iLY235..ST200107

T=1.600

main41361-60850iLY235..ST200107

T=1.650

main41361-60870iLY235..ST200107

T=1.700

main41361-60890iLY235..ST200107

T=1.750

main41361-60A10iLY235..ST200107

T=1.800

main41361-60A30iLY235..ST200107

T=1.850

main41361-60A50iLY235..ST200107

T=1.900

main41361-60A70iLY235..ST200107

T=1.950

main41361-60A90iLY235..ST200107

T=2.000

main41361-60B10iLY235..ST200107

T=2.050

main41361-60B30iLY235..ST200107

T=2.100

main41362-40021iKDY220,230,LY22#..ST200107-201609

T=1.7

main41363-40021iKDY220,230,LY22#..ST200107-201609

T=1.8

41371SPIDER, REAR DIFFERENTIAL

main41306-35040iKDY23#..ST;KDY22#..IV3200108-201502

W(LSD)

main41371-35020iKDY221;LY235..WT;KDY231..CBU;KDY231..ST..IV3200107

main41371-36011iKDY231,251,261..WT..IV3200107-202111

main41371-60050iLY235200610

9161160814

main91611-60814

30 parts on this diagram · 9 diagrams in section
