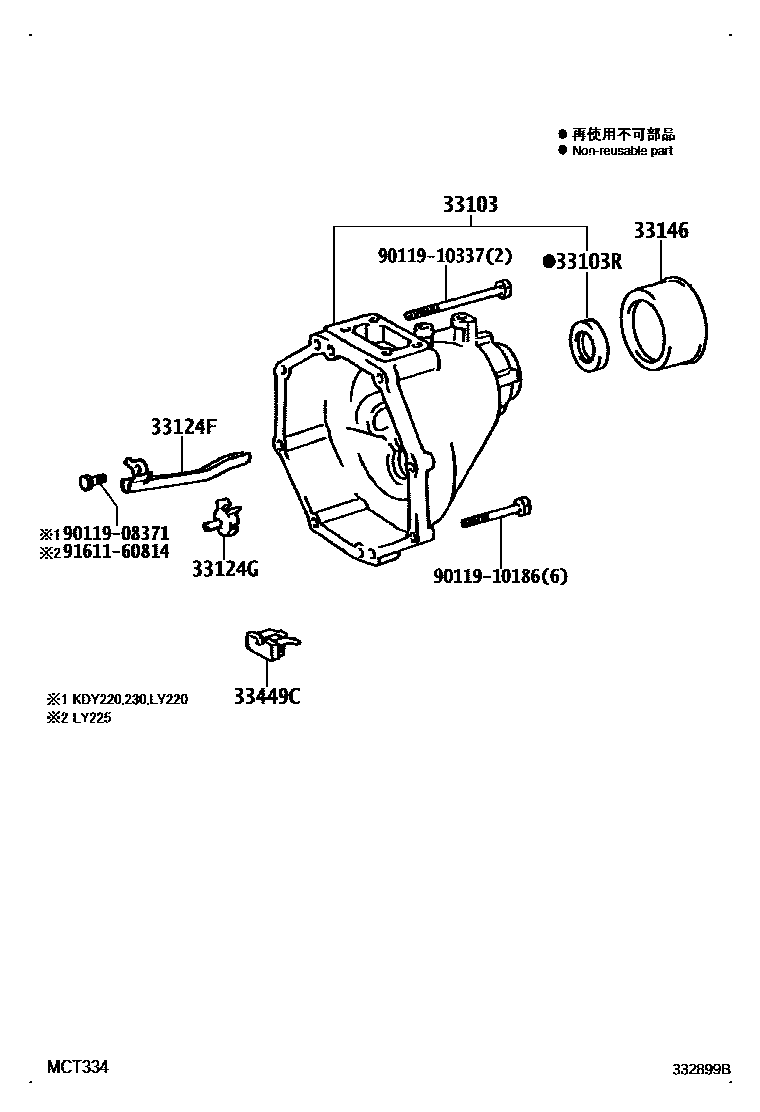

EXTENSION HOUSING (MTM)

0001 1G54 0002 1R451,R452 0003 1R351

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-25050iLY230..SA200107-202111

main33103-26070iKDY221,231..ST200609-201502

main33103-28031iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iKDY220..RHD..IV3200107-201102

main90311-38093iLY235;KDY221,23#,25#,26#,LY230..WT..(ARL,EUR,GEN)200107-202111

main90311-38094iLY225201102-201609

main90311-40001iKDY221,231..ST200609-200706

main90311-40032iKDY221,231..ST200706-201101

sub90311-40035

main90311-40035iKDY221,231..ST201101-201502

sub90311-40048

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-28011iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

main33124-35100iKDY231;KDY221,230,25#,26#,LY23#..(125T,15T,175T)..(ARL,EUR,GEN)200107-202111

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-25010iLY230..SA200107-202111

main33124-35090iKDY221,231..ST200609-201502

main33124-36010iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iKDY221,231..ST200609-201502

sub33146-30020

main33146-30020iKDY220..RHD..IV3200107-201609

33449CMAGNET, TRANSMISSION (MTM)

main33449-26010iKDY220..RHD..IV3200107-201609

9011908371

main90119-08371

9011910186

main90119-10186

9011910337

main90119-10337

9161160814

main91611-60814

10 parts on this diagram · 3 diagrams in section
