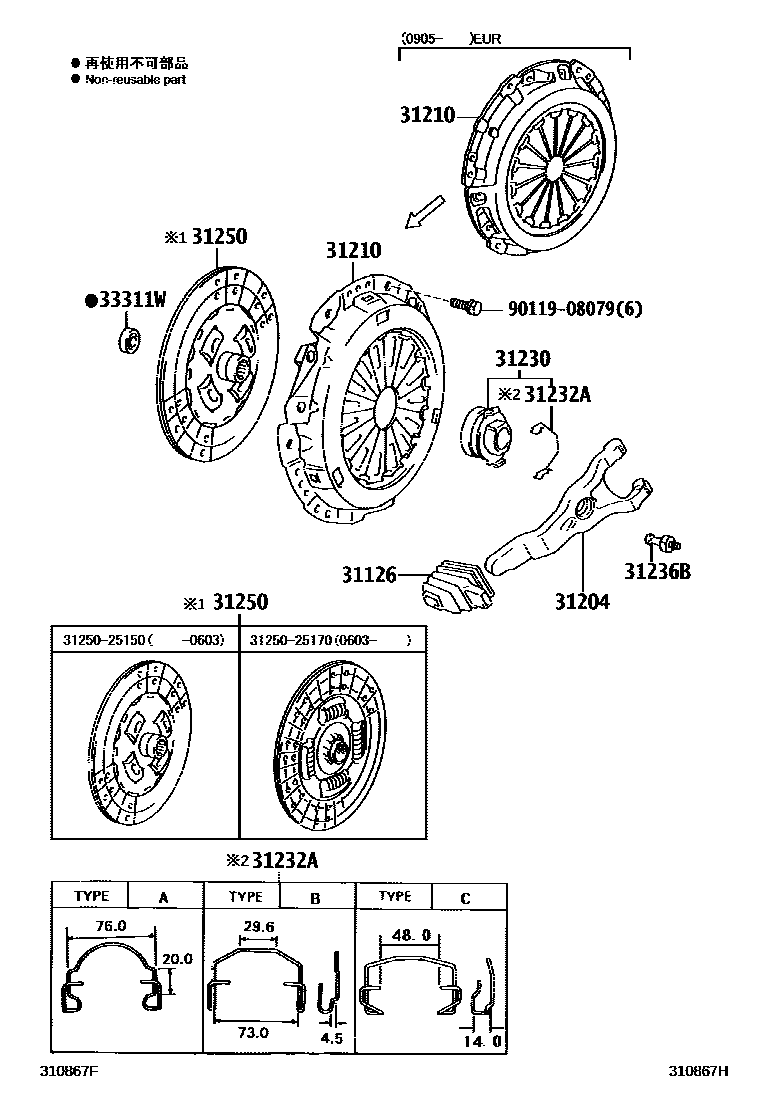

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iLY22#¥990200107-201609

main31126-34010iLY230..SA¥630200107-202111

main31126-60081iKDY220..RHD..IV3¥770200108-200609

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35031iLY23#..ARL,GEN¥1,440200107-202111

main31204-35050iLY22#¥1,590200107-201609

main31204-60090iKDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#¥3,810200108-200609

31210COVER ASSY, CLUTCH

main31210-26090iKDY230,250,260..WT¥21,100200108-200408

sub31210-26130¥21,100

main31210-26130iKDY230,250,260..WT¥21,100200408-200601

sub31210-26131¥16,600

main31210-26131iKDY231..GEN;KDY221,230,250,260..WT¥16,600200602-201310

main31210-26160iLY23#;KDY220,230,LY22#..ST¥16,900200408-200602

sub31210-26161¥16,900

main31210-26161iLY23#;KDY220,230,LY225..ST¥16,900200603-200702

sub31210-26162¥16,900

main31210-26162iLY225,23#¥16,900200703-200705

sub31210-26163¥16,900

main31210-26163iLY225,23#¥16,900200706-200902

sub31210-26164¥13,300

main31210-26164iLY225,23#¥13,300200903-202111

main31210-35122iLY23#;KDY220,230,LY22#..ST¥13,000200107-200407

sub31210-26160¥16,900

main31210-36350iKDY221,231..GEN¥17,700200905

31230BEARING ASSY, CLUTCH RELEASE

main31230-22100iKDY220,230..ST¥2,340200108-200609

sub31230-22101¥2,340

main31230-35060iLY22#,23#¥4,180200107-200302

sub31230-35061¥3,300

main31230-35061iLY230..SA¥3,300200302-202111

main31230-60170iKDY221,231,251,261..EUR¥1,880200108-201310

main31230-60221iKDY221,231,251,261..EUR¥5,800200905

31232ACLIP, RELEASE BEARING HUB

main31232-22020iKDY220,230..ST¥230200108-200609

TYPE C:REFER TO ILLUSTRATION

main31232-35020iLY22#,23#..ARL,GEN¥190200107-202012

TYPE A:REFER ILLUST.

main31232-35030iLY230..SA¥190200302-202111

TYPE B:REFER ILLUST.

main31232-36030iKDY231..GEN;KDY221,230,250,260..WT¥110200108-201310

TYPE A:REFER ILLUST.

main31232-60030iKDY23#,25#,26#..WT..IV3¥200200108-201109

TYPE B:REFER ILLUST.

main31232-60030iKDY221,231..ST¥200200905

main31232-71010iKDY221,231..GEN¥140200905-201310

TYPE B:REFER ILLUST.

31236BSUPPORT, RELEASE FORK

main31236-26010iLY22#¥460200110-201609

main31236-30060iLY22#¥740200107-200110

main31236-35030iLY230..SA¥330200107-202111

main31236-60060iKDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#¥580200108-200609

31250DISC ASSY, CLUTCH

main31250-25143iLY22#,23#¥23,300200107-200109

sub31250-25144¥18,300

main31250-25144iLY22#,23#¥18,300200109-202008

sub31250-26182¥18,300

main31250-25150iKDY220,230..ST¥23,300200108-200603

sub31250-25180¥23,300

main31250-25160iKDY230,250,260..WT¥19,800200108-200408

sub31250-26210¥19,900

main31250-25170iKDY220,230..ST200603-200610

main31250-26182iLY23#¥18,300202009-202111

main31250-26210iKDY231;KDY221,230,25#,26#..125T,15T¥19,900200408-200905

sub31250-26260¥15,700

main31250-26252iKDY221,231,251,261..EUR¥16,300200905-201910

sub31250-26253¥16,300

main31250-26253iKDY221,231¥16,300201911

main31250-26260iKDY221,231..GEN¥15,700200905-201310

sub31250-26261¥15,700

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iKDY22#,23#,25#,26#,LY22#,23#¥520200107-201808

sub90363-12024¥520

main90363-12024iKDY221,231,LY23#¥520201808-202111

9011908079

main90119-08079¥120

9 parts on this diagram · 2 diagrams in section
