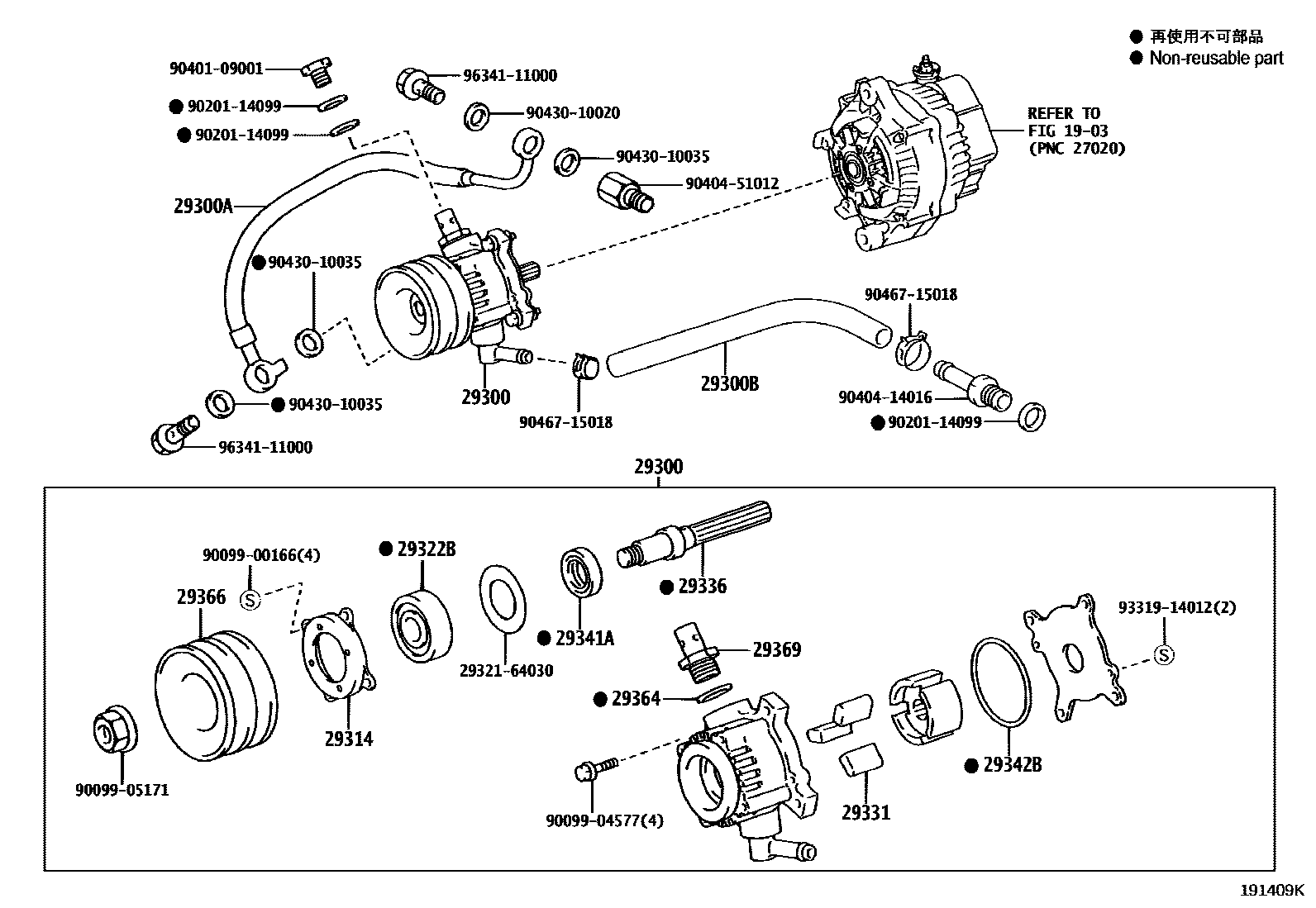

VACUUM PUMP

0001 1 0002 1

1903

29300PUMP ASSY, VACUUM

main29300-30020i1KDFTV..KDY221,231,251,261201008

main29300-54180i5L..LY22#,23#200107-202111

main29300-67020i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108-201008

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02120i5L..LY22#,23#200107-202111

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54050i5L..LY22#,23#200107-202111

29314RING, STOP

main29314-64030i5L..LY22#,23#200107-202111

29322BBEARING, VACUUM PUMP

main90099-10185i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

main90099-10199i5L..LY22#,23#200107-200611

main90099-10227i5L..LY225,23#200612-202111

29331BLADE, VACUUM PUMP, A

main29331-54130i5L..LY22#,23#200107-202111

main29331-67020i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

29336SHAFT, VACUUM PUMP

main29336-58050i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

main29336-64031i5L..LY22#,23#200107-202111

29341ASEAL, OIL

main29341-64030i5L..LY22#,23#200107-202111

29342PACKING, VACUUM PUMP

main29342-58010i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108-201008

NO.1

main29342-58040i1KDFTV..KDY221,231,251,261201008

NO.1

main29342-58060i1KDFTV..KDY221,231,251,261201008

NO.3

main29342-58070i1KDFTV..KDY221,231,251,261201008

NO.2

main29342-67020i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108-201008

NO.2

main29342-68010i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108-201008

NO.3

29342BRING, O

main29342-64030i5L..LY22#,23#200107-202111

29364WASHER, VACUUM PUMP

main29364-66010i5L..LY230..SA;5L..LY235..ST200107-202111

29366PULLEY, VACUUM PUMP

main29366-54110i5L..LY22#,23#200107-202111

29369VALVE SUB-ASSY, CHECK

main29369-64030i5L..LY230..SA;5L..LY235..ST200107-202111

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009900166

main90099-00166

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099

9040109001

main90401-09001

9040414016

main90404-14016

9040451012

main90404-51012

9043010020

main90430-10020

9043010035

main90430-10035

9046715018

main90467-15018

9331914012

main93319-14012

9634111000

main96341-11000

27 parts on this diagram · 2 diagrams in section
