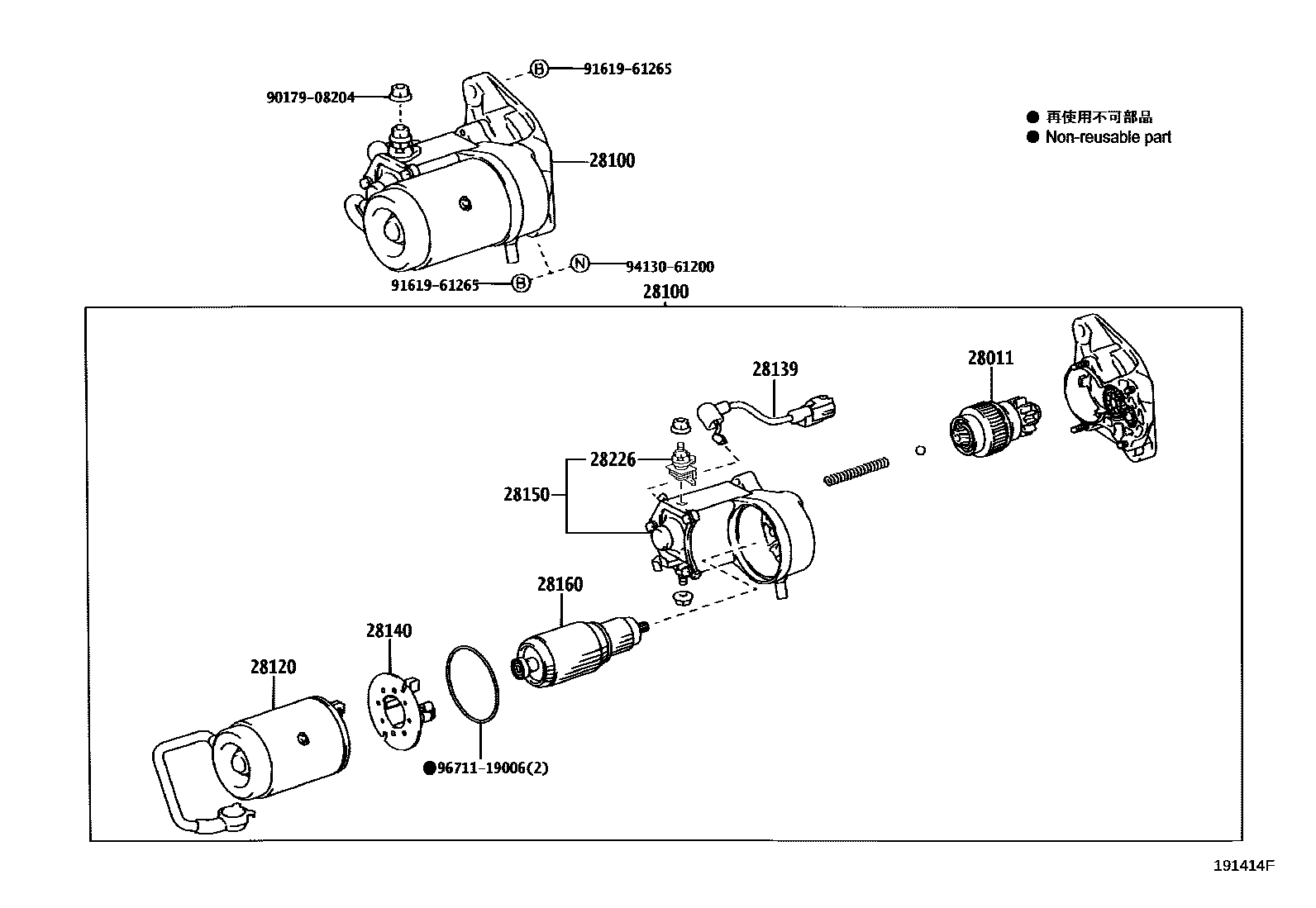

STARTER

0001 112V 2.0,2.2KW 0002 112V 2.0KW 0003 112V 2.7KW 0004 112V 3.0KW 0005 112V 2.2KW

28011CLUTCH SUB-ASSY, STARTER

main28011-30040i2KDFTV..KDY220,230,250,260¥17,800200108-200610

12V 2.0KW

main28011-30050i2KDFTV..KDY220,230,250,260¥19,200200408-200610

12V 2.7KW

main28011-30050i1KDFTV..KDY221,231,251,261..EUR¥19,200200609-201502

12V 3.0KW

main28011-54380i5L..LY235..WT¥25,700200107-200609

main28011-54450i5L..LY22#,230;5L..LY235..ST¥19,500200107-202111

main28011-67020i2KDFTV..KDY230,250..RHD;2KDFTV..KDY230,260..125T;2KDFTV..KDY220..RHD..CBU¥30,400200108-200408

12V 2.7KW

main28011-67030i1KDFTV..KDY221,231,251,261¥17,600200609

12V 2.2KW

28100STARTER ASSY

main28100-30040i2KDFTV..KDY220,230,250,260¥92,900200108-200610

12V 2.0KW

main28100-30051i1KDFTV..KDY221,231,251,261..EUR¥88,300201109-201502

12V 2.7KW

main28100-30070i1KDFTV..KDY221,231,251,261..EUR¥172,000200609-200905

12V 3.0KW

sub28100-30071¥143,000

main28100-30071i1KDFTV..KDY221,231,251,261..EUR¥143,000200906-201109

12V 3.0KW

main28100-30080i2KDFTV..KDY220,230,250,260¥141,000200408-200610

12V 2.7KW

sub28100-30081¥117,000

main28100-54380i5L..LY235..WT¥135,000200107-200609

12V 2.0KW

main28100-54450i5L..LY22#,230;5L..LY235..ST¥147,000200107-200910

12V 2.2KW

sub28100-54451¥102,000

main28100-54451i5L..LY225,23#¥102,000200911-202111

12V 2.2KW

main28100-67050i1KDFTV..KDY221,231,251,261¥147,000200609-200910

12V 2.2KW

sub28100-67051¥147,000

main28100-67051i1KDFTV..KDY221,231,251,261¥147,000200911-201408

12V 2.2KW

sub28100-67052¥92,200

main28100-67052i1KDFTV..KDY221,231,251,261¥92,200201409

12V 2.2KW

main28100-67070i2KDFTV..KDY250..LHD;2KDFTV..KDY220..IV3;2KDFTV..KDY220..LHD..CBU;2KDFTV..KDY230,260..LHD..(10T,15T)¥161,000200108-200408

12V 2.7KW

sub28100-30050¥141,000

28120YOKE ASSY, STARTER

main28120-54380i5L..LY235..WT;2KDFTV..KDY220,230,250,260200107-200610

12V 2.0KW

main28120-64040i5L..LY230..SA;5L..LY235..ST200107-202111

12V 2.2KW

main28120-67020i2KDFTV..KDY250..LHD;2KDFTV..KDY220..IV3;2KDFTV..KDY220..LHD..CBU;2KDFTV..KDY230,260..LHD..(10T,15T)200108-201502

12V 2.7KW

main28120-67090i1KDFTV..KDY221,231,251,261..EUR200609-201109

12V 3.0KW

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-54450i5L..LY225,23#200911-202111

28140HOLDER ASSY, STARTER BRUSH

main28140-54380i5L..LY235..WT;2KDFTV..KDY220,230,250,260200107-200610

12V 2.0KW

main28140-64040i5L..LY230..SA;5L..LY235..ST200107-202111

12V 2.2KW

main28140-67090i1KDFTV..KDY221,231,251,261..EUR200609-201109

12V 3.0KW

main28140-77090i1KDFTV..KDY221,231,251,261..EUR201109-201502

main28140-77090i2KDFTV..KDY250..LHD;2KDFTV..KDY220..IV3;2KDFTV..KDY220..LHD..CBU;2KDFTV..KDY230,260..LHD..(10T,15T)200108-200610

12V 2.7KW

28150SWITCH ASSY, MAGNET STARTER

main28150-30040i2KDFTV..KDY220,230,250,260¥14,600200108-200610

12V 2.0KW

main28150-30050i1KDFTV..KDY221,231,251,261..EUR¥15,700200408-201502

12V 2.7KW

main28150-30070i1KDFTV..KDY221,231,251,261..EUR¥16,500200609-201109

12V 3.0KW

main28150-54330i5L..LY22#,230;5L..LY235..ST¥14,500200107-202111

main28150-54380i5L..LY235..WT¥21,200200107-200609

main28150-67050i1KDFTV..KDY221,231,251,261¥14,500200609-202107

12V 2.2KW

main28150-67070i2KDFTV..KDY230,250..RHD;2KDFTV..KDY230,260..125T;2KDFTV..KDY220..RHD..CBU¥23,700200108-200408

12V 2.7KW

28160ARMATURE ASSY, STARTER

main28160-54140i1KDFTV..KDY221,231,251,261..EUR¥20,000201109-201502

main28160-54140i2KDFTV..KDY250..LHD;2KDFTV..KDY220..IV3;2KDFTV..KDY220..LHD..CBU;2KDFTV..KDY230,260..LHD..(10T,15T)¥20,000200108-200408

12V 2.7KW

main28160-54160i2KDFTV..KDY220,230,250,260¥26,600200408-200610

12V 2.7KW

main28160-54380i5L..LY235..WT;2KDFTV..KDY220,230,250,260200107-200610

12V 2.0KW

main28160-64041i5L..LY230..SA;5L..LY235..ST¥18,500200107-202111

12V 2.2KW

main28160-67090i1KDFTV..KDY221,231,251,261..EUR¥21,100200609-201109

12V 3.0KW

28226STARTER KIT, BATTERY TERMINAL

main28226-54340i5L..LY235..WT200107-200609

9017908204

main90179-08204¥140

9161961265

main91619-61265¥230

9413061200

main94130-61200¥100

9671119006

main96711-19006¥180

12 parts on this diagram · 5 diagrams in section
