WATER PUMP

0001 1 0003 1

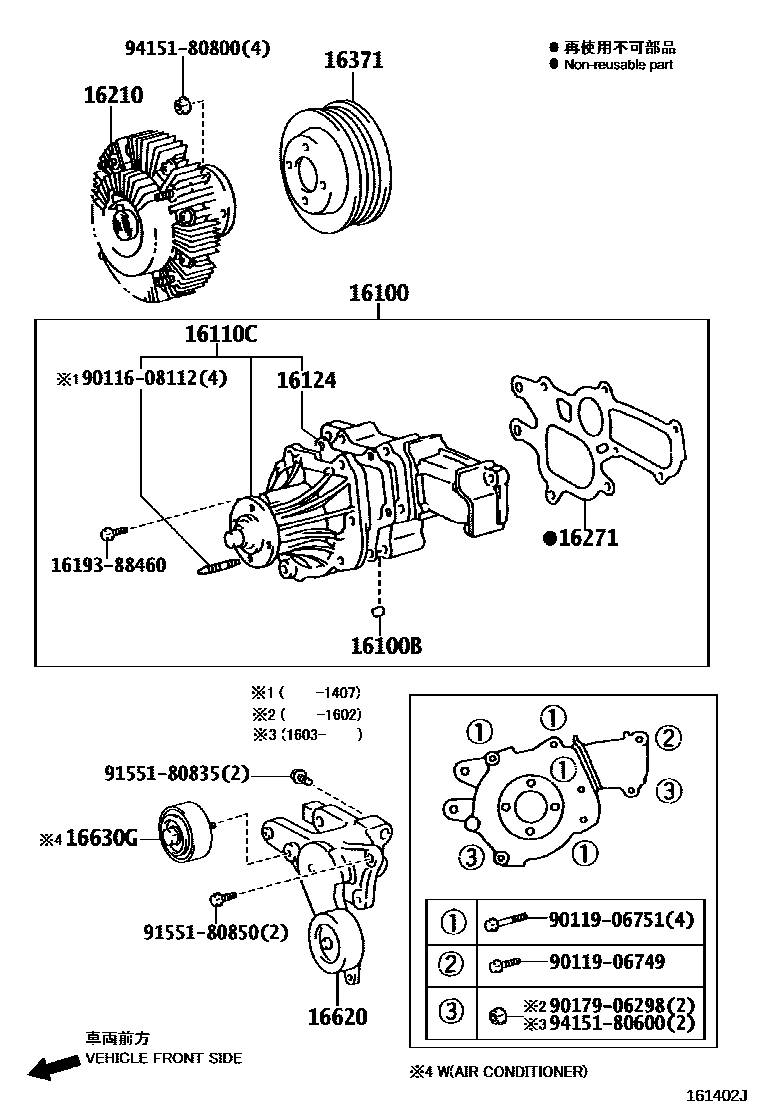

16100PUMP ASSY, ENGINE WATER

main16100-59257i5L..LY22#,23#200107-202111

main16100-69356i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108-201407

sub16100-69357

main16100-69357i1KDFTV..KDY221,231,251,261201407

16100BPIN, RING(FOR WATER PUMP SET)

main16159-70040i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108-200810

16110CPUMP ASSY, WATER, W/O COVER

main16110-69045i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

16124GASKET, WATER PUMP COVER

main16124-67010i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

16210COUPLING ASSY, FLUID

main16210-30010i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108-201508

sub16210-30011

main16210-30011i1KDFTV..KDY221,231201509

main16210-54220i5L..LY22#,23#200107-202111

16271GASKET, WATER PUMP

main16271-54030i5L..LY22#,23#200107-202111

main16271-67020i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

16371PULLEY, FAN

main16371-05010i5L..LY22#,23#200304-202111

(L)

main16371-30020i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

main16371-54030i5L..LY22#,23#200107-200304

main16371-54030i5L..LY22#,23#200304-202111

(J)

16620TENSIONER ASSY, V-RIBBED BELT

main16620-30020i2KDFTV..KDY220,230,250,260200108-200308

sub16620-30030

main16620-30030i2KDFTV..KDY220,230,250,260200308-200404

sub16620-30031

main16620-30031i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200404

16630GPULLEY ASSY, IDLER

main88440-35090i2KDFTV..KDY220,230,250,260200108-200308

main88440-35130i1KDFTV,2KDFTV..KDY22#,23#,25#,26#..EUR200308

1619388460BOLT, STUD(FOR WATER PUMP COVER)

main16193-88460

9011608112

main90116-08112

9011906749

main90119-06749

9011906751

main90119-06751

9017906298

main90179-06298

9155180835

main91551-80835

9155180850

main91551-80850

9415180600

main94151-80600

9415180800

main94151-80800

18 parts on this diagram · 2 diagrams in section
