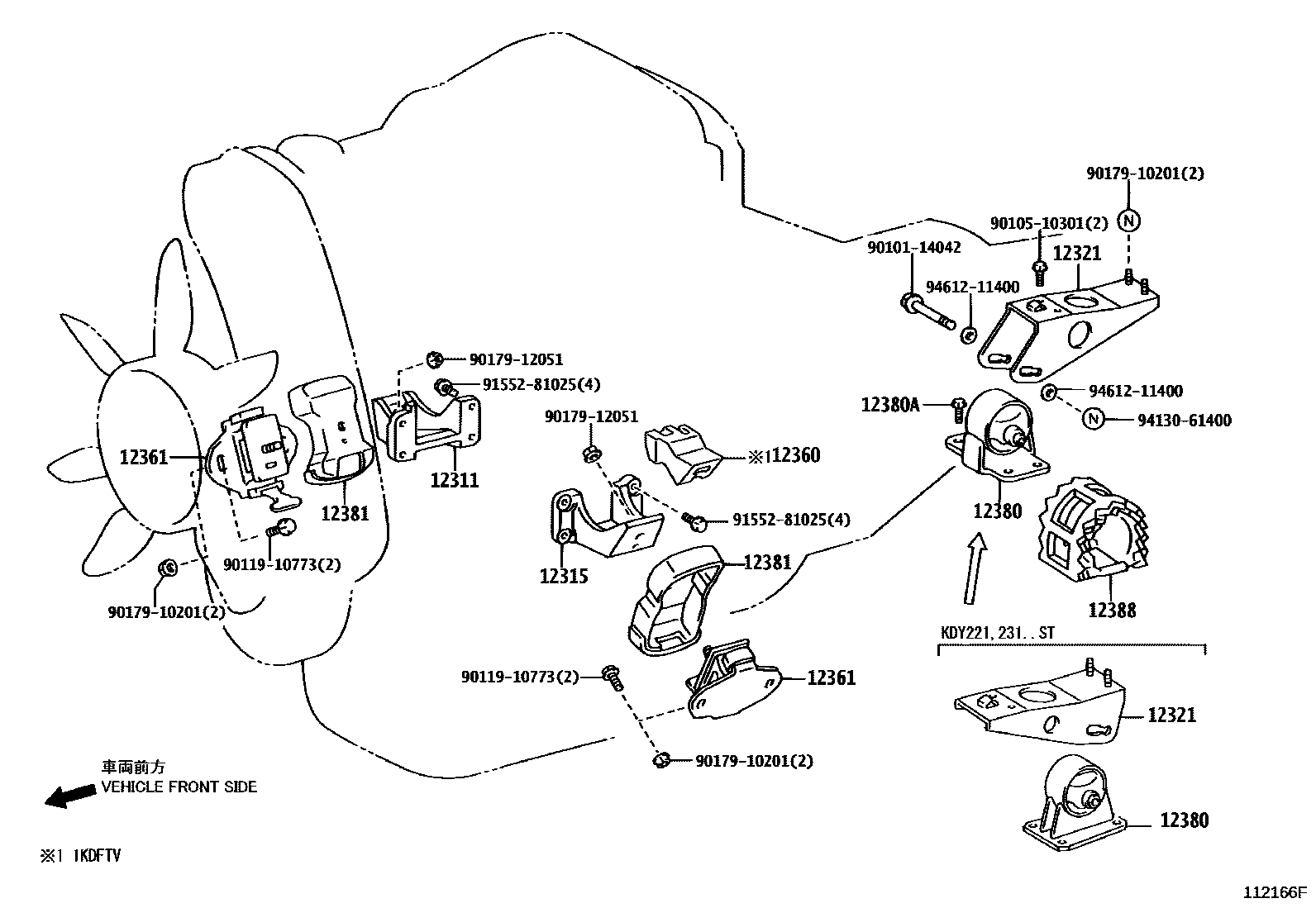

MOUNTING

0001 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-30090i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200608-200708

sub12311-30091

main12311-30091i1KDFTV..KDY221,231,251,261200708

main12311-54181i5L..LY22#,23#200107-202111

main12311-67021i2KDFTV..KDY220,230,250,260200108-200608

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-30090i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200608-200708

sub12315-30091

main12315-30091i1KDFTV..KDY221,231,251,261200708

main12315-67011i2KDFTV..KDY220,230,250,260200108-200608

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-30020i2KDFTV..KDY220,230..ST200108-200607

sub12321-30021

main12321-30021i2KDFTV..KDY220,230..ST200607-200610

main12321-30030i2KDFTV..KDY230,250,260..WT200108-200607

sub12321-30031

main12321-30031i1KDFTV,2KDFTV..KDY221,23#,25#,26#..WT200607

main12321-30041i1KDFTV..KDY221,231..ST200609-201502

main12321-54100i5L..LY22#200107-200607

sub12321-54101

main12321-54101i5L..LY225200607-201609

main12321-54110i5L..LY23#200107-200607

sub12321-54111

main12321-54111i5L..LY23#200607-202111

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12361-30070i1KDFTV..KDY221,231,251,261200609

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-54240i5L..LY22#,23#200107-200206

sub12361-54241

main12361-54241i5L..LY22#,23#200206-200707

sub12361-54242

main12361-54242i5L..LY225,23#200708-202111

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-54040i2KDFTV..KDY220,230..ST200107-201609

main12380-54050i5L..LY23#200107-202111

main12380-54071i1KDFTV..KDY221,231..ST200609-201502

12380ABOLT(FOR ENGINE MOUNTING INSURATOR)

main90105-08157i1KDFTV,2KDFTV..KDY22#,23#..ST200107-201609

main91513-H1025i5L..LY23#200107-202111

12381STABILIZER, ENGINE MOUNTING

main12381-54050i5L..LY22#,23#200107-200605

sub12381-54051

main12381-54051i5L..LY225,23#200606-200707

sub12381-54052

main12381-54052i5L..LY225,23#200708-202111

12388STOPPER, ENGINE MOUNTING BRACKET, REAR

main12388-67011i5L..LY22#,23#200107-202111

9010114042

main90101-14042

9010510301

main90105-10301

9011910773

main90119-10773

9017910201

main90179-10201

9017912051

main90179-12051

9155281025

main91552-81025

9413061400

main94130-61400

9461211400

main94612-11400

17 parts on this diagram · 2 diagrams in section
