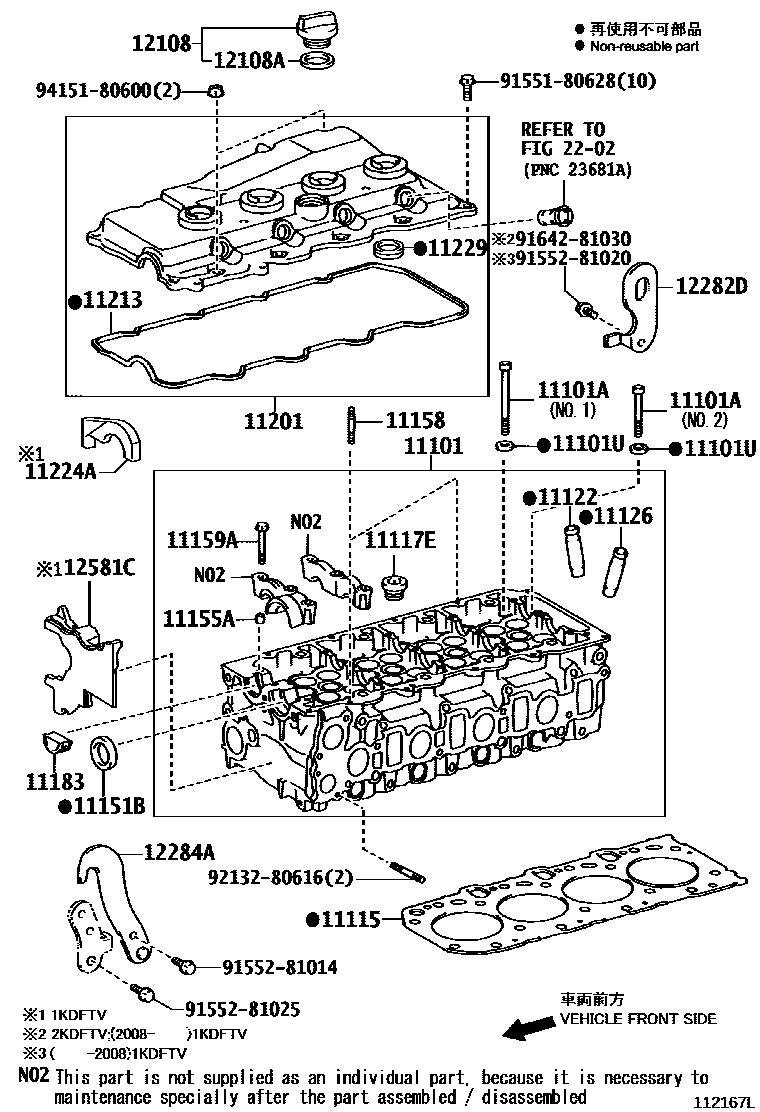

CYLINDER HEAD

0001 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-0L050i2KDFTV..KDY220,230,250,260200410-200610

(L)

sub11101-0L051

main11101-30040i2KDFTV..KDY220,230,250,260¥136,000200108-200206

sub11101-30041¥136,000

sub23770-30021¥5,300

sub23770-30031¥6,300

main11101-30041i2KDFTV..KDY220,230,250,260¥136,000200206-200405

sub11101-30060¥136,000

sub83420-26010¥3,700

sub90430-12221¥200

main11101-30051i1KDFTV..KDY221,231,251,261..EUR¥104,000201109-201405

sub11101-30081¥94,200

main11101-30060i2KDFTV..KDY220,230,250,260¥136,000200410-200610

(J)

sub11101-30071¥85,700

main11101-30060i2KDFTV..KDY220,230,250,260¥136,000200405-200410

sub11101-30071¥85,700

main11101-30090i1KDFTV..KDY221,231,251,261..EUR200609-201007

sub11101-30091

main11101-30091i1KDFTV..KDY221,231..GEN201007-201310

main11101-30100i1KDFTV..KDY221,231,251,261..EUR¥152,000200905-201007

sub11101-30101¥104,000

main11101-30101i1KDFTV..KDY221,231,251,261..EUR¥104,000201007-201109

sub11101-30081¥94,200

main11101-30130i1KDFTV..KDY221,231,251,261¥104,000201406-202105

sub11101-30170¥104,000

main11101-30170i1KDFTV..KDY221,231¥104,000202105

main11101-54150i5L..LY22#,23#¥84,800200107-202111

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02080i5L..LY22#,23#¥430200107-202111

NO.1

main90910-02081i5L..LY22#,23#¥380200107-202111

NO.2

main90910-02145i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥410200108

NO.2

main90910-02146i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥490200108

NO.1

11101USPACER(FOR CYLINDER HEAD SET BOLT)

main90560-13023i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥180200108

11115GASKET, CYLINDER HEAD

main11115-30031-A0i1KDFTV..KDY221,231,251,261200609-201007

MARK A,REFER REPAIR MANUAL

sub11115-30032¥6,600

main11115-30031-B0i1KDFTV..KDY221,231,251,261200609-201007

MARK B,REFER REPAIR MANUAL

sub11115-30032¥6,600

main11115-30031-C0i1KDFTV..KDY221,231,251,261200609-201007

MARK C,REFER REPAIR MANUAL

sub11115-30032¥6,600

main11115-30031-D0i1KDFTV..KDY221,231,251,261200609-201007

MARK D,REFER REPAIR MANUAL

sub11115-30032¥6,600

main11115-30031-E0i1KDFTV..KDY221,231,251,261200609-201007

MARK E,REFER REPAIR MANUAL

sub11115-30032¥6,600

main11115-30032-A0i1KDFTV..KDY221,231,251,261201007

MARK A,REFER REPAIR MANUAL

main11115-30032-B0i1KDFTV..KDY221,231,251,261201007

MARK B,REFER REPAIR MANUAL

main11115-30032-C0i1KDFTV..KDY221,231,251,261201007

MARK C,REFER REPAIR MANUAL

main11115-30032-D0i1KDFTV..KDY221,231,251,261201007

MARK D,REFER REPAIR MANUAL

main11115-30032-E0i1KDFTV..KDY221,231,251,261201007

MARK E,REFER REPAIR MANUAL

main11115-30040-A0i2KDFTV..KDY220,230,250,260200108-200610

MARK A,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-B0i2KDFTV..KDY220,230,250,260200108-200610

MARK B,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-C0i2KDFTV..KDY220,230,250,260200108-200610

MARK C,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-D0i2KDFTV..KDY220,230,250,260200108-200610

MARK D,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-30040-E0i2KDFTV..KDY220,230,250,260200108-200610

MARK E,REFER REPAIR MANUAL

sub11115-30041¥5,800

main11115-54121-B0i5L..LY22#,23#200107-200112

MARK B

sub11115-54130¥6,700

main11115-54121-D0i5L..LY22#,23#200107-200112

MARK D

sub11115-54130¥6,700

main11115-54121-F0i5L..LY22#,23#200107-200112

MARK F

sub11115-54130¥6,700

main11115-54130-B0i5L..LY22#,23#200112

MARK B

sub11115-54130¥6,700

main11115-54130-D0i5L..LY22#,23#200112

MARK D

sub11115-54130¥6,700

main11115-54130-F0i5L..LY22#,23#200112

MARK F

sub11115-54130¥6,700

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-14015i2KDFTV..KDY220,230,250,260¥120200405-200610

(J)

main90341-14015i2KDFTV..KDY220,230,250,260¥120200206-200405

main90341-T0005i2KDFTV..KDY220,230,250,260200410-200610

(L)

11122BUSH, INTAKE VALVE GUIDE

main11122-30020i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥550200108

O/S 0.05

main11122-54020i5L..LY22#,23#¥550200107-202111

STD

sub11122-17020¥550

main11123-30020i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥550200108

STD

main11123-54020i5L..LY22#,23#¥550200107-202111

O/S 0.05

sub11123-17020¥550

11126BUSH, EXHAUST VALVE GUIDE

main11122-30020i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥550200108

O/S 0.05

main11122-54020i5L..LY22#,23#¥550200107-202111

STD

sub11122-17020¥550

main11123-30020i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥550200108

STD

main11123-54020i5L..LY22#,23#¥550200107-202111

O/S 0.05

sub11123-17020¥550

11151BSEAL, OIL(FOR CAMSHAFT SETTING)

main90311-32019i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥350200108-201008

main90311-32025i1KDFTV..KDY221,231,251,261¥350201008

11155APIN, RING W/HEAD

main90253-10004i2KDFTV..KDY220,230,250,260¥120200206-200405

main90253-10004i2KDFTV..KDY220,230,250,260¥120200405-200610

(J)

main90253-T0001i2KDFTV..KDY220,230,250,260200410-200610

(L)

11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)

main90116-06149i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥90200108

S=9 & 16,L=37

main92122-80616i5L..LY22#,23#¥80200107-202111

S=9 & 9,L=25

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-08166i5L..LY22#,23#¥90200107-202111

main90119-07011i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥90200206

11183PLUG, SEMICIRCULAR

main11183-54020i5L..LY22#,23#¥430200107-202111

main11183-67020i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥490200108

11201COVER SUB-ASSY, CYLINDER HEAD

main11210-30090i2KDFTV..KDY220,230,250,260¥18,100200108-200610

main11210-30130i1KDFTV..KDY221,231..GEN¥16,200200609-201310

main11210-30150i1KDFTV..KDY221,231,251,261..EUR¥11,300201109

main11210-54032i5L..LY220,230..ARL¥13,400200107-200412

main11210-54042i5L..LY225,23#..GEN,SA¥8,500200107-202111

11213GASKET, CYLINDER HEAD COVER

main11213-30020i2KDFTV..KDY220,230,250,260¥1,450200108-200610

sub11213-30021¥900

main11213-30040i1KDFTV..KDY221,231,251,261¥1,000200609

main11213-54050i5L..LY22#,23#¥1,470200107-202111

11224SILENCER, CYLINDER HEAD COVER

main11224-54030i5L..LY220,230..ARL¥7,700200107-200412

11224ASILENCER, CYLINDER HEAD COVER, NO.1

main11224-30010i1KDFTV..KDY221,231,251,261¥650200609-200911

sub11224-30020¥540

main11224-30020i1KDFTV..KDY221,231,251,261¥540200911

11229GASKET, CYLINDER HEAD COVER, NO.3

main23682-30020i1KDFTV..KDY221,231..GEN;2KDFTV..KDY220,230,250,260¥490200108-201310

main23682-30040i1KDFTV..KDY221,231,251,261..EUR¥940201109

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥1,020200108-201304

main12180-38010i1KDFTV..KDY221,231,251,261¥640201304

main12180-70020i5L..LY225,23#..GEN,SA¥1,040200107-200312

main12180-73011i5L..LY220,230..ARL¥650200309-202111

12108AGASKET(FOR OIL FILLER CAP)

main12195-70010i5L..LY220,230..ARL¥430200107-200312

main12195-73010i5L..LY220,230..ARL¥310200309-202111

main90430-35001i1KDFTV..KDY221,231,251,261¥120201304

main90430-37140i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥210200108-201304

12282DHANGER, ENGINE, NO.2

main12282-67030i1KDFTV..KDY221,231¥3,710200108-201908

12284AHANGER, ENGINE, NO.1 UPPER

main12284-30020i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥1,550200108-201908

12581CINSULATOR, CYLINDER BLOCK

main12581-30010i1KDFTV..KDY221,231,251,261¥1,700200609

2202

9155180628

main91551-80628¥60

9155281014

main91552-81014¥80

9155281020

main91552-81020¥100

9155281025

main91552-81025¥100

9164281030

main91642-81030¥170

9213280616

main92132-80616¥80

9415180600

main94151-80600¥60

30 parts on this diagram · 3 diagrams in section
