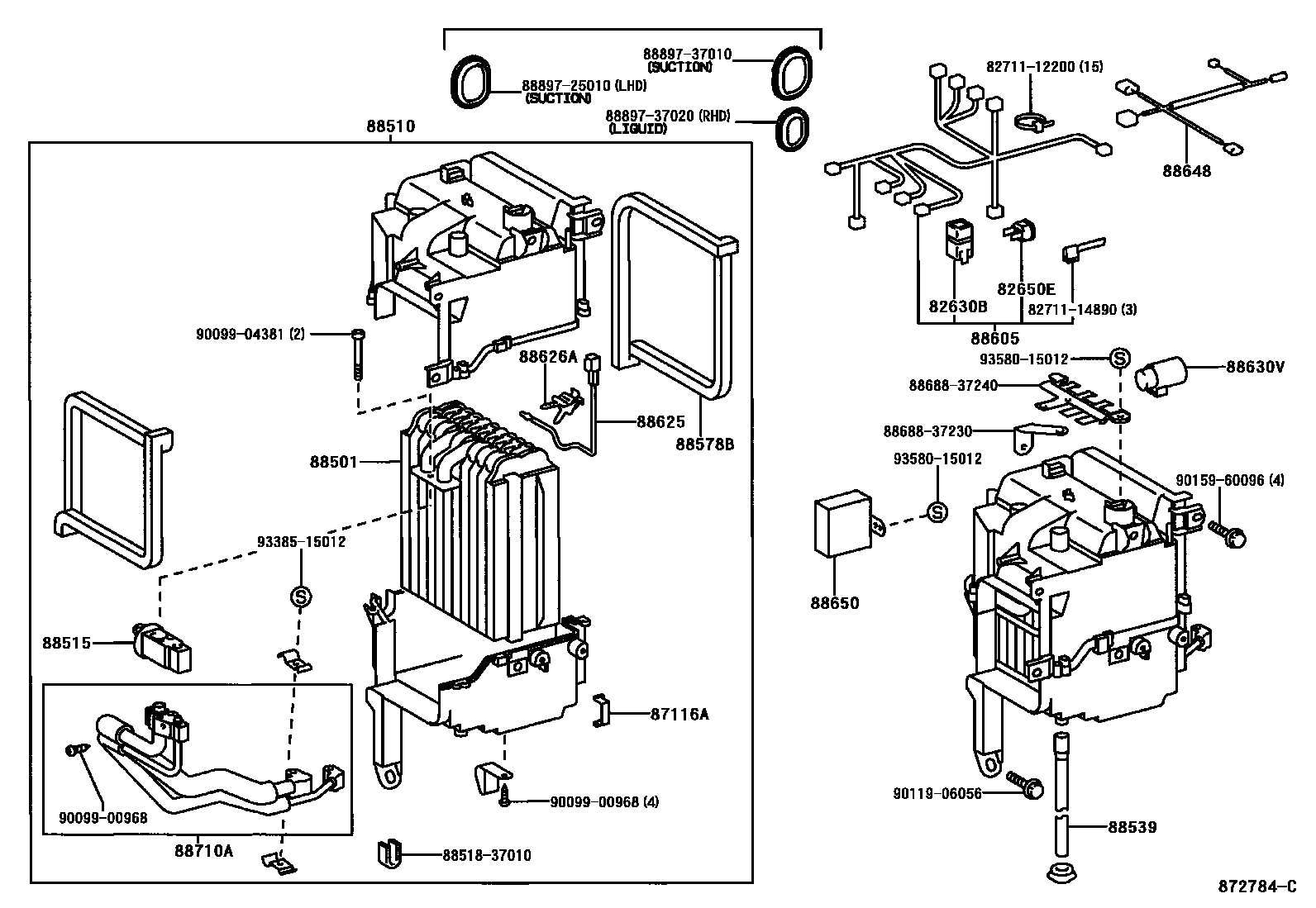

HEATING & AIR CONDITIONING - COOLER UNIT
82630BHOLDER ASSY, FUSE
82650EBREAKER ASSY, WIRING CIRCUIT
14A
87116ASPRING, HOLDING (FOR COOLER UNIT CASE)
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
W(FR HEATER & *AIC---DEALER OPT)
sub88501-35021
sub88501-35021
W(FR HEATER & *AIC---DEALER OPT)
W(FR HEATER & *AIC---MAKER OPT)
88515VALVE, COOLER EXPANSION
sub88515-22240
88539HOSE, COOLER UNIT DRAIN, NO.1
W(FR HEATER & *AIC)
W(FR HEATER & *AIC---MAKER OPT)
88578BPACKING, COOLING UNIT, NO.1
88605HARNESS SUB-ASSY, COOLER WIRING, NO.1
W(HEATER & *AIC) OR W(BOOST VENTILATOR & *AIC---DEALER OPT)
W(*BV & *AIC---MAKER OPT)
W(HEATER & *AIC---MAKER OPT)
W(*BV & *AIC---MAKER OPT)
FR HEATER & *AIC
W(HEATER & *AIC) OR W(BOOST VENTILATOR & *AIC---DEALER OPT)
W(*BV & *AIC---MAKER OPT)
W(HEATER & *AIC---MAKER OPT)
W(*BV & *AIC---MAKER OPT)
88625THERMISTOR, COOLER, NO.1
sub88625-3A090
88626AHOLDER, THERMISTOR
88630RELAY ASSY, COOLER
88630VRELAY ASSY
88648WIRING, COOLER, NO.1
DEALER OPTION
W(FR HEATER & *AIC)
MAKER OPTION
88650AMPLIFIER ASSY, COOLER STABILIZER
W(FR HEATER & *AIC---MAKER OPT)
W(FR HEATER & *AIC---MAKER OPT)
W(FR HEATER & *AIC---DEALER OPT)
W(FR HEATER & *AIC---DEAKER OPT)
W(FR HEATER & *AIC---DEALER OPT)
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14890
8851837010HOLDER, COOLING UNIT DOOR
main88518-37010
8868837230BRACKET, COOLER DIAPHRAGM
main88688-37230
8868837240BRACKET, COOLER DIAPHRAGM
main88688-37240
8889725010VALVE, COOLER MAGNET
main88897-25010
8889737010VALVE, COOLER MAGNET
main88897-37010
8889737020VALVE, COOLER MAGNET
main88897-37020
9009900968
main90099-00968
9009904381
main90099-04381
9011906056
main90119-06056
9015960096
main90159-60096
9338515012
main93385-15012
9358015012
main93580-15012
30 parts on this diagram · 3 diagrams in section
