SWITCH & RELAY & COMPUTER

0001 1E/G,T/M,T/F 0002 1E/G ROOM 0003 1INSTRUMENT PANEL SWITCH 0004 1INSTRUMENT PANEL SWITCH 0005 1INSTRUMENT PANEL & COWL 0006 1INSTRUMENT PANEL & COWL 0008 1INSTRUMENT PANEL & COWL 0009 1INSTRUMENT PANEL & COWL 0010 1COMBINATION SWITCH 0011 1DOOR, ROOF & FLOOR 0012 1REAR BODY

28621RESISTOR, GLOW PLUG

main28621-54080i3L..LY211..EUR199505-199605

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iLY21#,YY211199505

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14070iYY211199505-199601

sub83530-28010

main83530-28020iYY211199803

main83530-30060iLY211199505-199803

sub83530-60030

main83530-30090iYY211199601-199803

sub83530-60020

main83530-60030iLY21#199803

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iLY21#,YY211199505

sub84210-52050

89422ASENSOR, WATER TEMPERATURE

main89422-20010iLY211..EUR199505-199610

89491SENSOR, ENGINE OIL LEVEL

main89491-25010iLY211..EUR199505-199708

sub89491-25011

main89491-25011iLY21#199708

main89491-26090iLY211..ARL,GEN199505-199708

sub89491-26091

main89491-36100iYY211199505

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iLY21#199708

1987766010

main19877-66010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

9011606041

main90116-06041

9011606095

main90116-06095

9017905032

main90179-05032

9017906158

main90179-06158

9043012221

main90430-12221

9043018008

main90430-18008

9043027001

main90430-27001

9165160614

main91651-60614

9461310601

main94613-10601

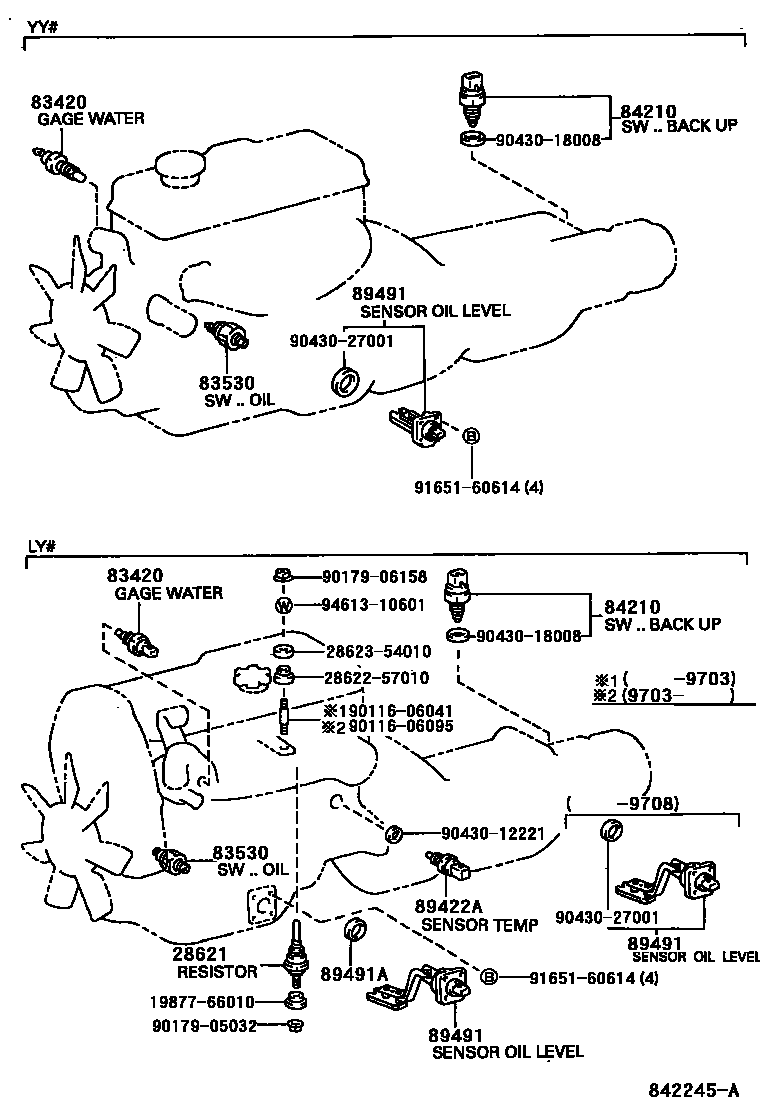

19 parts on this diagram · 11 diagrams in section
