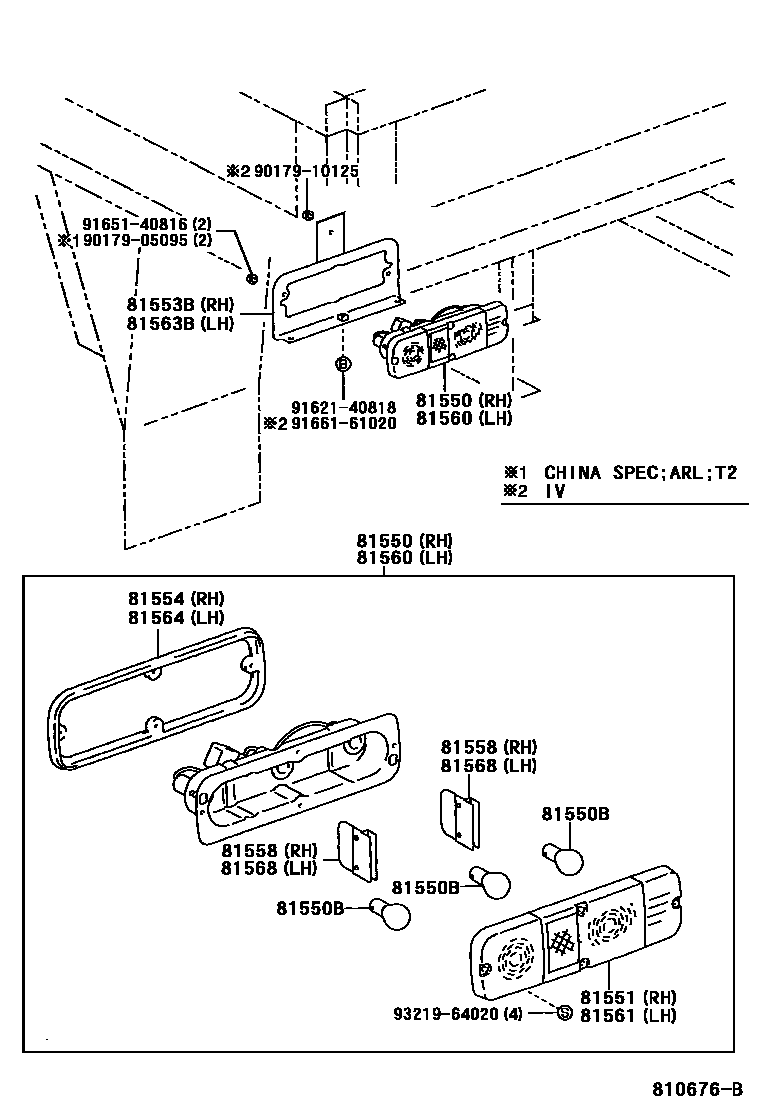

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-25100iLY211,YY211..ST..GEN¥7,100199505-199705

main81550-25101iLY21#,YY211..WT..CBU¥7,100199705

main81550-25110iLY21#..ARL,SA¥7,100199505-200002

main81550-25110iYY211..LHD¥7,100199708

CHINA SPEC

main81550-37041iLY212..IV¥11,800199505-200002

sub81550-37042¥7,400

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iLY21#,YY211..WT..CBU¥170199705

12V 21W,BACK UP

main99132-11210iLY21#,YY211..WT..CBU¥170199505-199705

12V 21W,TURN & BACK UP

main99132-11270iLY21#,YY211..WT..CBU¥210199705

12V 27W,TURN SIGNAL

main99132-21210iLY211,YY211¥190199505-199705

12V 21/5W,TAIL & STOP

main99132-21270iLY21#,YY211..WT..CBU¥270199705

12V 27/8W,TAIL & STOP

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iLY21#,YY211..GEN¥1,860199505

main81551-35061iLY211..ARL¥1,070199505-200002

main81551-35061iYY211..LHD¥1,070199708

CHINA SPEC

main81551-60442iLY21#..EUR¥1,970199505-200002

81553BBRACKET SUB-ASSY, RR COMB LAMP, RH

main75103-25011iLY211..IV¥2,560199505-200002

main75135-95412iLY212..IV¥2,130199505-200002

main75135-95A00iYY211..LHD..15T¥2,490199708-199905

main75135-95A01iYY211..ST..125¥2,260199708

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-25060iLY21#,YY211..GEN¥1,260199505

main81552-26040iLY211..ARL¥630199505-200002

main81552-26040iYY211..LHD¥630199708

CHINA SPEC

main81552-95400iLY21#..EUR¥510199505-200002

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iLY21#,YY211..GEN¥750199505

main81557-26040iLY21#..ARL,SA¥270199505-200002

main81557-26040iYY211..LHD¥270199708

CHINA SPEC

81560LAMP ASSY, REAR COMBINATION, LH

main81560-25090iLY211,YY211..ST..GEN¥7,100199505-199705

main81560-25091iLY21#,YY211..WT..CBU¥7,100199705

main81560-25100iLY21#..ARL,SA¥7,100199505-200002

main81560-25100iYY211..LHD¥7,100199708

CHINA SPEC

main81560-37061iLY21#..EUR¥11,800199505-200002

sub81560-37062¥7,400

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLY21#,YY211..GEN¥1,860199505

main81561-35061iYY211..LHD¥1,070199708

CHINA SPEC

main81561-35061iLY21#..ARL,SA¥1,070199505-200002

main81561-60372iLY212..IV¥1,970199505-200002

81563BBRACKET SUB-ASSY, RR COMB LAMP, LH

main75104-25011iLY21#..(ARL,GEN,SA)..IV¥1,420199505-200002

main75135-95412iLY21#..EUR¥2,130199505-200002

main75135-95A00iYY211..LHD..15T¥2,490199708-199905

main75135-95A01iYY211..ST..125¥2,260199708

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-95400iLY21#..EUR¥510199505-200002

main81562-25040iLY21#,YY211..GEN¥1,260199505

main81562-26040iLY21#..ARL,SA¥630199505-200002

main81562-26040iYY211..LHD¥630199708

CHINA SPEC

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iLY21#,YY211..GEN¥750199505

main81557-26040iLY21#..ARL,SA¥270199505-200002

main81557-26040iYY211..LHD¥270199708

CHINA SPEC

9017905095

main90179-05095¥240

9017910125

main90179-10125¥180

9162140818

main91621-40818¥80

9165140816

main91651-40816¥80

9166161020

main91661-61020¥190

9321964020

main93219-64020¥130

17 parts on this diagram · 2 diagrams in section
