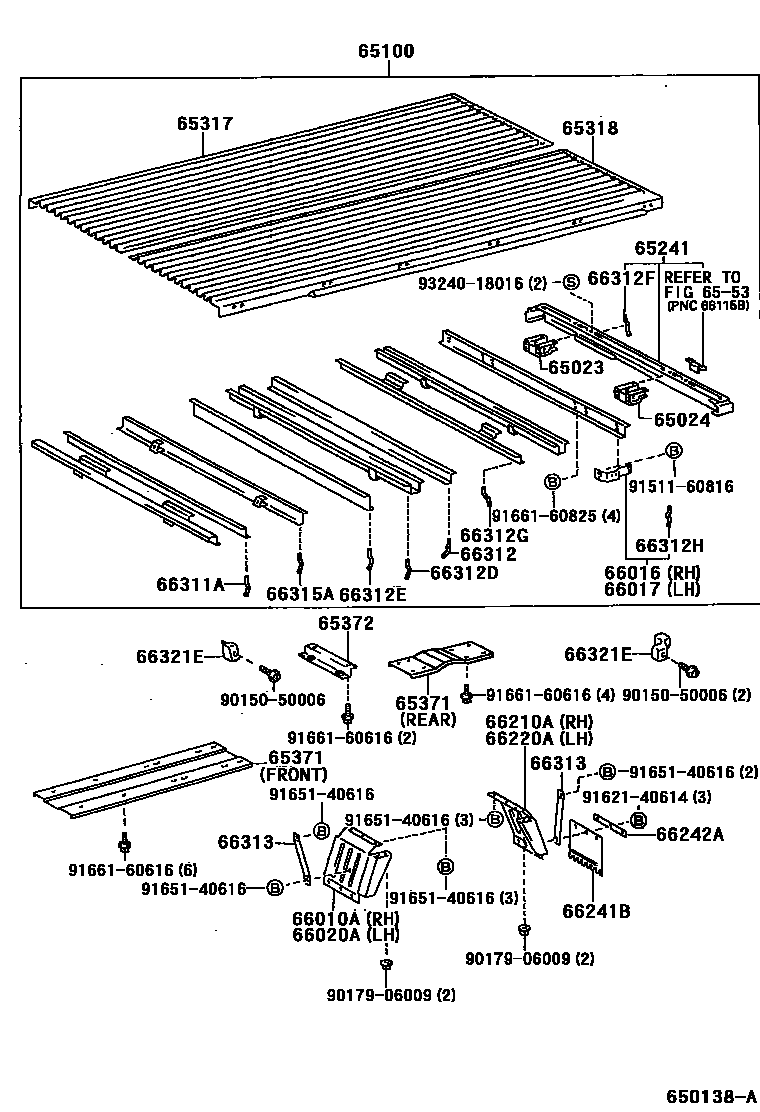

REAR BODY FLOOR & FENDER
65023BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, RH
sub65023-95010
65024BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, LH
sub65023-95010
65241SILL, REAR CROSS
CHINA SPEC
65317PANEL, FLOOR SIDE, RH
65318PANEL, FLOOR SIDE, LH
65371INSULATOR, REAR FLOOR
RR
SINGAPORE SPEC
FR
65372STAY, REAR FLOOR INSULATOR
6553
66016GUSSET SUB-ASSY, GATE HINGE, RH
66017GUSSET SUB-ASSY, GATE HINGE, LH
66242APLATE, BAFFLE RUBBER
RH
LH
L=310
L=250.0
66311AHOOK, ROPE, NO.1
sub66311-95011
66312DHOOK, ROPE, NO.2
sub66311-95011
66312EHOOK, ROPE, NO.2
sub66311-95011
66312FHOOK, ROPE, NO.2
RH
LH
66312GHOOK, ROPE, NO.2
RH
LH
66312HHOOK, ROPE
66313SUPPORT, REAR FENDER
REAR
REAR
FRONT
FRONT
66315AHOOK, ROPE
sub66311-95011
66321BUMPER, GATE RUBBER
9015050006
main90150-50006
9017906009
main90179-06009
9151160816
main91511-60816
9162140614
main91621-40614
9165140616
main91651-40616
9166160616
main91661-60616
9166160825
main91661-60825
9324018016
main93240-18016
36 parts on this diagram · 4 diagrams in section
