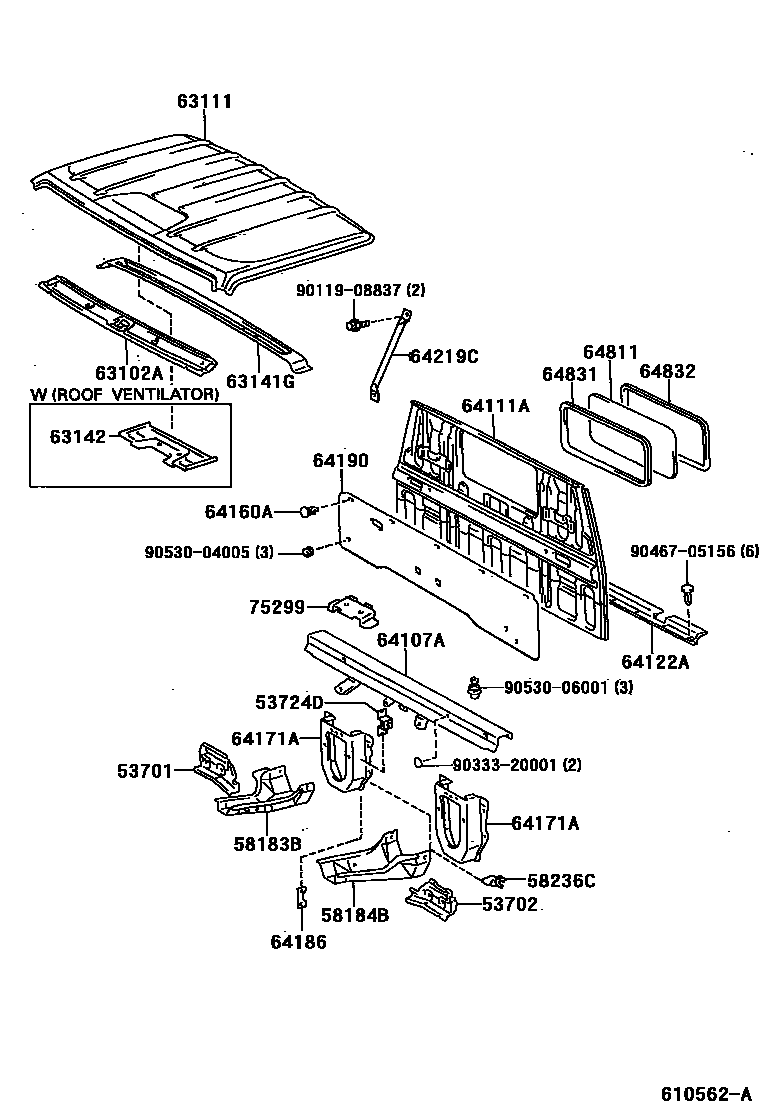

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

53701APRON SUB-ASSY, FRONT FENDER, RH

main53717-25010iLY21#,YY211..15T199505

main53717-37020iLY21#,YY211..125199505

53702APRON SUB-ASSY, FRONT FENDER, LH

main53718-25010iLY21#,YY211..15T199505

main53718-37020iLY21#,YY211..125199505

53724DBRACKET, CLAMP

main53724-95010iYY211199505

58183BREINFORCEMENT, REAR MOUNTING, RH

main58102-25010iLY21#,YY211199505

sub58102-25020

main58102-25020iYY211..LHD199708

CHINA SPEC

58184BREINFORCEMENT, REAR MOUNTING, LH

main58103-25010iLY21#,YY211199505

58236CBRACKET, CLUTCH TUBE

main58236-25010iLY21#,YY211..15T199505

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63132-95418iLY21#,YY211199505

sub63132-37010

main63132-95420iLY21#,YY211..ARL,EUR,GEN199505

W(ROOF VENTILATOR)

sub63132-37010

63111PANEL, ROOF

main63111-37010iLY21#,YY211..15T199505

main63111-37020iLY21#,YY211..15T..(ARL,EUR,GEN)199505

W(ROOF VENTILATOR)

main63111-95416iLY21#,YY211..125199505

W(ROOF VENTILATOR)

main63111-95417iLY21#,YY211..125199505

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37010iLY21#,YY211..15T199505

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95400iLY21#,YY211..15T..(ARL,EUR,GEN)199505

64107AFRAME SUB-ASSY, BACK

main64107-25022iYY211..RHD..15T199505-200002

main64107-25042iLY211..RHD..15T..GEN199505

main64107-25053iLY211..ARL199505

main64107-25053iLY211..ST..15T..CBU199505-199508

HONG KONG SPEC

main64107-25053iLY211..ST..15T..CBU199508

W(FRONT SEAT BELT=ELR)

main64107-25092iYY211..WT..125199505-199905

main64107-25102iLY211..WT..125199505-199905

main64107-25110iLY211..15T..EUR199505-199805

sub64107-25111

sub90333-20001

main64107-25112iLY212..15T..EUR199805

main64107-25140iYY211..ST..125199505-199805

sub64107-25141

sub90333-20001

main64107-25141iYY211..ST..125199805

main64107-25170iLY211..ST..125..CBU199505-199805

sub64107-25171

sub90333-20001

main64107-25171iLY211..ST..125199805-199905

main64107-25180iLY211..125..IV199605-199805

sub64107-25181

sub90333-20001

main64107-25182iLY212..125199805

main64107-25210iYY211..LHD..15T199505-199805

sub64107-25211

sub90333-20001

main64107-25211iYY211..LHD..15T199805-199905

main64107-25220iLY211..LHD..GEN..IV199505-199805

sub64107-25221

sub90333-20001

main64107-25221iLY211..LHD..IV199805

main64107-25260iLY212..SA199909

main64107-25270iLY212..CBU200002

64111APANEL, BACK

main64100-25100iLY211..WT..IV199508-199606

NORWAY SPEC

sub64100-25101

sub64160-37010

main64100-25101iLY21#..WT..15T..IV199606-199806

NORWAY SPEC

sub64111-25010

sub63218-95400

sub64105-95A06

sub64149-95A00

sub71962-95400

main64100-25102iLY212..WT..15T..EUR199806-200007

NORWAY SPEC

sub64111-25011

sub63218-95400

sub64105-95A06

sub64149-95A00

sub71962-95400

main64100-25103iLY212..WT..15T..EUR200007-200108

NORWAY SPEC

sub64111-25011

sub63218-95400

sub64105-95A06

sub64149-95A00

sub71962-95400

main64100-25110iLY212..WT..15T..EUR200007-200108

sub64111-37260

sub63218-95400

sub64105-95412

sub71962-95400

main64100-25280iLY211,YY211..ST..125..CBU199708-199905

ROUGH ROAD PACKAGE

sub64111-95412

sub63218-95402

sub64116-95A01

sub64117-95400

sub64119-95A01

main64100-37290iLY211..ARL;LY211,YY211..WT..15T..CBU199505-199606

W(FRONT HEAD REST=PASSENGER SEAT)

sub64100-37291

sub64160-37010

main64100-37291iLY211..ARL;LY21#,YY211..WT..15T..CBU199606-200107

W(FRONT HEAD REST=PASSENGER SEAT)

sub64111-37260

sub63218-95400

sub64105-37030

sub71962-95400

main64100-37300iLY211,YY211..RHD..ST..GEN199505-199606

sub64100-37301

sub64160-37010

main64100-37301iLY212..SA;LY211,YY211..RHD..ST..GEN199606-200110

sub64111-37260

sub63218-95400

sub64105-37030

main64100-37310iLY211..15T..EUR199505-199606

W(FRONT HEAD REST=PASSENGER SEAT)

sub64100-37311

sub64160-37010

main64100-37311iLY212..ST;LY211..15T..EUR199606-200108

sub64111-37260

sub63218-95400

sub64105-95A06

sub71962-95400

main64100-37311iLY211,YY211..LHD..15T..GEN199606-200107

W(FRONT HEAD REST=PASSENGER SEAT)

sub64111-37260

sub63218-95400

sub64105-95A06

sub71962-95400

main64100-37311iLY212..WT..15T..EUR200007-200108

PORTUGAL SPEC

sub64111-37260

sub63218-95400

sub64105-95A06

sub71962-95400

main64100-37320iLY211,YY211..LHD..15T..GEN199505-199606

sub64100-37321

sub64160-37010

main64100-37321iLY211,YY211..LHD..15T..GEN199606-200107

sub64111-37260

sub63218-95400

sub64105-95A06

main64100-95450iLY21#,YY211..125199505-200108

sub64111-95412

sub63218-95402

sub64116-95A01

sub64117-95400

sub64119-95A01

64122ABAFFLE, DUST REAR BODY

main64122-25011iLY21#,YY211..WT..15T..CBU199505

main64122-25030iLY211,YY211..ST..15T..CBU199505

main64122-37061iLY211,YY211..125..CBU199505

64160ACLIP(FOR BACK PANEL UPPER SILENCER)

main90467-06171-C0iLY21#..15T..(ARL,EUR)199505-200108

BLACK,TRIM1#

sub90467-06171

64171ABRACKET SUB-ASSY, REAR MOUNTING

main64025-25011iLY21#,YY211..15T199505

main64171-95410iLY21#,YY211..125199505

64186RETAINER, REAR MOUNTING BRACKET

main64186-95A00iLY21#..ARL,EUR,SA;LY211..ST..15T..CBU199505-199610

main64186-95A00iLY211..ST..15T..CBU199505-199508

HONG KONG SPEC

main64186-95A00iLY211..ST..15T..CBU199508-199610

W(FRONT SEAT BELT=ELR)

64190SILENCER ASSY, BACK PANEL

main64190-25020iLY211..ARL199505

main64190-25040iLY211..15T..EUR199505-199805

main64190-25060iLY212..15T..EUR199805

64219CSTAY, BACK PANEL

main64219-25010iLY21#..RHD..15T199505

64811GLASS, BACK WINDOW

main64811-37070iLY211..WT..IV;LY212..WT..15T;LY211,YY211..15T..(ARL,GEN)199610

*TEM,T=3.5,GREEN

main64811-37080iLY212,YY211..125199610-199905

*TEM,T=3.5,GREEN

main64811-95409iLY21#..15T..EUR199505-199610

*TEM,T=3.5

main64811-95410iLY21#..125..IV199505-199610

*TEM,T=3.5

sub64811-37080

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37050iLY21#,YY211199905

sub64831-37051

main64831-95406iLY21#,YY211199505-199905

sub64831-37050

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-37040iLY21#,YY211199905

main64832-95013iLY21#,YY211199505-199905

sub64832-37040

75299BASE, JACK HOLDER

main75209-25010iLY21#,YY211..15T199505

9011908837

main90119-08837

9033320001

main90333-20001

9046705156

main90467-05156

9053004005

main90530-04005

9053006001

main90530-06001

27 parts on this diagram · 3 diagrams in section
