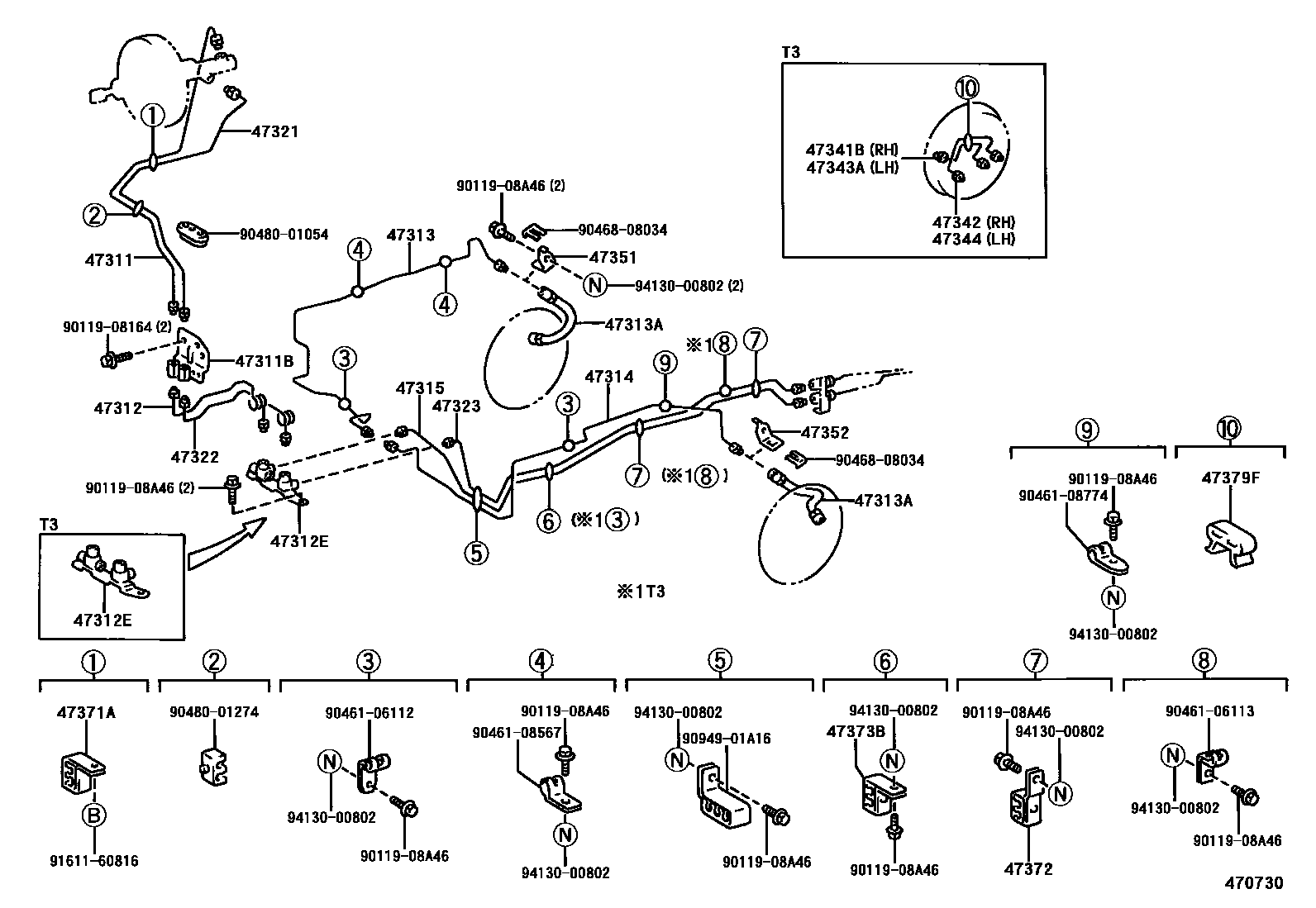

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47311TUBE, FRONT BRAKE, NO.1

main47311-25210iLY211,YY211..LHD..GEN199505

W(FRONT DISC BRAKE)

main47311-25220iLY211,YY211..LHD..GEN199505

main47311-25230iLY21#,YY211..RHD..GEN199505

main47311-25240iLY21#..ARL,SA199505

W(FRONT DISC BRAKE)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90904-12018iLY21#,YY211199505

47312TUBE, FRONT BRAKE, NO.2

main47312-25110iLY21#,YY211..RHD199505

main47312-25120iLY21#,YY211..LHD199505

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10222iLY212;LY211,YY211..WT;LY211..ST..(ARL,EUR)199505

main90412-10223iLY211,YY211..ST..GEN199505

47313TUBE, FRONT BRAKE, NO.3

main47313-25120iLY21#,YY211199505-199905

main47313-25151iLY21#,YY211199905

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02856iLY211,YY211..ST..GEN199505

main90947-02B24iLY21#,YY211..T2;LY21#..ST..(ARL,EUR)199905

W(FRONT DISC BRAKE)

main90947-02B25iLY212..WT..EUR199905

main96940-33555iLY21#..WT..IV199505-199905

main96940-33955iLY21#..ST..(ARL,EUR);LY211,YY211..WT..CBU199505-199905

W(FRONT DISC BRAKE)

47314TUBE, FRONT BRAKE, NO.4

main47314-25150iLY21#,YY211199505

47315TUBE, FRONT BRAKE, NO.5

main47315-25080iLY212;LY211,YY211..WT;LY211..ST..(ARL,EUR)199505

47321TUBE, REAR BRAKE, NO.1

main47321-25070iLY21#..EUR199505

W(FRONT DISC BRAKE)

main47321-25080iLY211,YY211..LHD..GEN199505

main47321-25090iLY21#,YY211..RHD..GEN199505

main47321-25100iLY21#..ARL,SA199505

W(FRONT DISC BRAKE)

47322TUBE, REAR BRAKE, NO.2

main47322-25090iLY21#,YY211..LHD199505

main47322-25100iLY21#,YY211..RHD199505

47323TUBE, REAR BRAKE, NO.3

main47323-25120iLY21#,YY211199505

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-25020iLY211,YY211..ST..GEN199505

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-25021iLY211,YY211..ST..GEN199505

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-25010iLY211,YY211..ST..GEN199505

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47344-25021iLY211,YY211..ST..GEN199505

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-25081iLY21#,YY211199505

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-25091iLY21#,YY211199505

47371ACLAMP, BRAKE TUBE, NO.1

main47373-25010iLY21#,YY211199505

47372CLAMP, BRAKE TUBE, NO.2

main47372-25010iLY212;LY211,YY211..WT;LY211..ST..(ARL,EUR)199505

47373BCLAMP, BRAKE TUBE, NO.3

main47373-25010iLY212;LY211,YY211..WT;LY211..ST..(ARL,EUR)199505

47379FDAMPER, TUBE(FOR FRONT)

main47379-36010iLY211,YY211..ST..GEN199505

9011908164

main90119-08164

9011908A46

main90119-08A46

9046106112

main90461-06112

9046106113

main90461-06113

9046108567

main90461-08567

9046108774

main90461-08774

9046808034

main90468-08034

9048001054

main90480-01054

9048001274

main90480-01274

9094901A16

main90949-01A16

9161160816

main91611-60816

9413000802

main94130-00802

33 parts on this diagram · 4 diagrams in section
