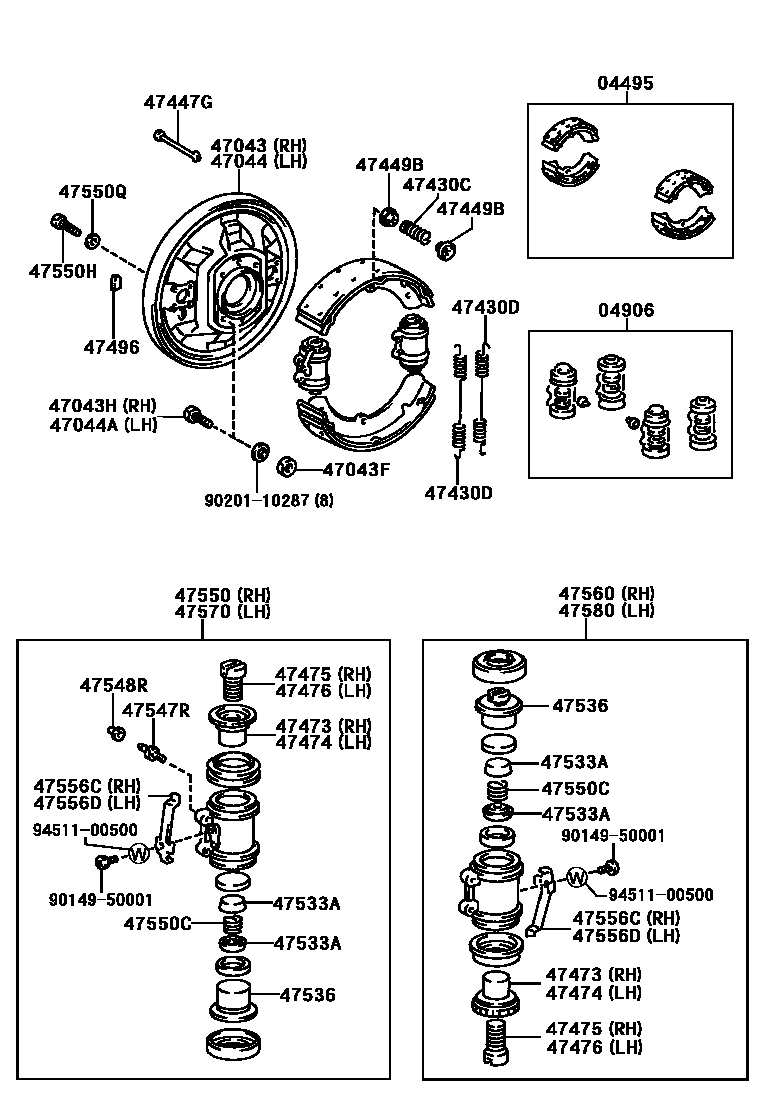

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1W(FRONT DISC BRAKE) 0005 1

04495SHOE KIT, REAR BRAKE

main04494-25020iLY211,YY211..ST..GEN199505-199701

sub04494-25060

main04494-25040iLY21#,YY211..RHD..WT199505-200110

main04494-25060iLY211,YY211..ST..GEN199701-200107

main04494-25080iLY21#,YY211..ST199505-200108

MARK NBK LN508,W(FRONT DISC BRAKE)

main04495-25130iLY21#..WT..EUR199505-200108

MARK NBK LN503

04906CUP KIT, REAR WHEEL CYLINDER

main04906-25050iLY211,YY211..WT..CBU199505-199607

sub04906-25051

main04906-25051iLY21#,YY211..RHD..WT199607

main04906-25070iLY211,YY211..ST..GEN199505-199905

W(FRONT DISC BRAKE)

main04906-36130iLY21#..WT..IV199505-199905

main04906-36200iLY211,YY211..ST..GEN199505

main04906-37070iLY212..WT..EUR199905

main04906-60032iLY211,YY211..ST..GEN199905

W(FRONT DISC BRAKE)

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-25080iLY21#,YY211..RHD..WT199505

main47043-25100iLY211,YY211..ST..GEN199505-199909

sub47043-25101

main47043-25101iLY211,YY211..ST..GEN199909

main47043-25110iLY21#..WT..EUR199505

main47043-25120iLY21#..ST..(ARL,EUR)199505-199909

W(FRONT DISC BRAKE)

sub47043-25121

main47043-25121iLY21#..ST..(ARL,EUR)199909

W(FRONT DISC BRAKE)

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10021iLY21#,YY211..RHD..WT199505

main90170-10178iLY211..WT..IV199505-199802

sub94130-01002

main94110-71000iLY21#,YY211..ST199505

main94130-01002iLY21#..WT..EUR199802

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main42184-35011iLY21#,YY211..ST199505

main90101-10028iLY21#,YY211..RHD..WT199505

main90114-10019iLY21#..WT..IV199505-199907

sub90114-10063

main90114-10063iLY212..WT..EUR199907

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-25050iLY21#,YY211..RHD..WT199505

main47044-25070iLY211,YY211..ST..GEN199505-199909

sub47044-25071

main47044-25071iLY211,YY211..ST..GEN199909

main47044-25080iLY21#..WT..EUR199505

main47044-25090iLY211,YY211..ST..GEN199505-199909

W(FRONT DISC BRAKE)

sub47044-25091

main47044-25091iLY211,YY211..ST..GEN199909

W(FRONT DISC BRAKE)

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main42184-35011iLY21#,YY211..ST199505

main90101-10028iLY21#,YY211..RHD..WT199505

main90114-10019iLY21#..WT..IV199505-199907

sub90114-10063

main90114-10063iLY212..WT..EUR199907

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iLY21#,YY211..WT199505

main90501-20756iLY21#..ST..(ARL,EUR)199505

W(FRONT DISC BRAKE)

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26007iLY21#,YY211..RHD..WT199505

main90506-26009iLY21#,YY211..ST199505

main90507-29002iLY21#..WT..EUR199505

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010iLY212;LY211,YY211..WT;LY211..ST..(ARL,EUR)199505

W(FRONT DISC BRAKE)

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iLY21#,YY211199505

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47551-25070iLY21#,YY211..RHD..WT199505

main47551-25090iLY21#,YY211..ST199505

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47552-25070iLY21#,YY211..RHD..WT199505

main47552-25090iLY21#,YY211..ST199505

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-25040iLY21#,YY211..RHD..WT199505

main47553-36021iLY21#,YY211..ST199505

main47553-36070iLY21#..WT..EUR199505

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-25040iLY21#,YY211..RHD..WT199505

main47554-36021iLY21#,YY211..ST199505

main47554-36070iLY21#..WT..EUR199505

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

sub47491-36020

47533ASEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-40013iLY21#..WT..IV199505-199905

main47533-60011iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-25020iLY21#,YY211..RHD..WT199505

main47531-60030iLY21#,YY211..ST199505

main47536-36020iLY21#..WT..IV199505-199905

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010iLY21#,YY211199505-199905

main47547-27020iLY212..WT..EUR199905

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iLY21#,YY211199505

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-25012iLY211,YY211..ST..GEN199505

main47550-25070iLY21#,YY211..RHD..WT199505

main47550-25090iLY211,YY211..ST..GEN199505

W(FRONT DISC BRAKE)

main47550-36130iLY21#..WT..IV199505-199905

main47550-37090iLY212..WT..EUR199905

sub47550-37091

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09735iLY21#,YY211199505-199905

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-08081iLY21#,YY211199505

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-08002iLY21#,YY211199505

47556CSPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE)

main47555-36020iLY21#,YY211..ST199505

main47555-36030iLY21#,YY211..RHD..WT199505

47556DSPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE)

main47555-36020iLY21#,YY211..ST199505

main47555-36030iLY21#,YY211..RHD..WT199505

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-25012iLY211,YY211..ST..GEN199505

main47560-25070iLY21#,YY211..RHD..WT199505

main47560-25090iLY21#..ST..(ARL,EUR)199505

W(FRONT DISC BRAKE)

main47560-36130iLY21#..WT..IV199505-199905

main47560-37061iLY212..WT..EUR199905

sub47560-37062

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-25012iLY211,YY211..ST..GEN199505

main47570-25070iLY21#,YY211..RHD..WT199505

main47570-25090iLY211,YY211..ST..GEN199505

W(FRONT DISC BRAKE)

main47570-36130iLY21#..WT..IV199505-199905

main47570-37050iLY212..WT..EUR199905

sub47570-37051

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-25012iLY211,YY211..ST..GEN199505

main47580-25070iLY21#,YY211..RHD..WT199505

main47580-25090iLY211,YY211..ST..GEN199505

W(FRONT DISC BRAKE)

main47580-36130iLY21#..WT..IV199505-199905

main47580-37051iLY212..WT..EUR199905

sub47580-37052

9014950001

main90149-50001

9020110287

main90201-10287

9451100500

main94511-00500
