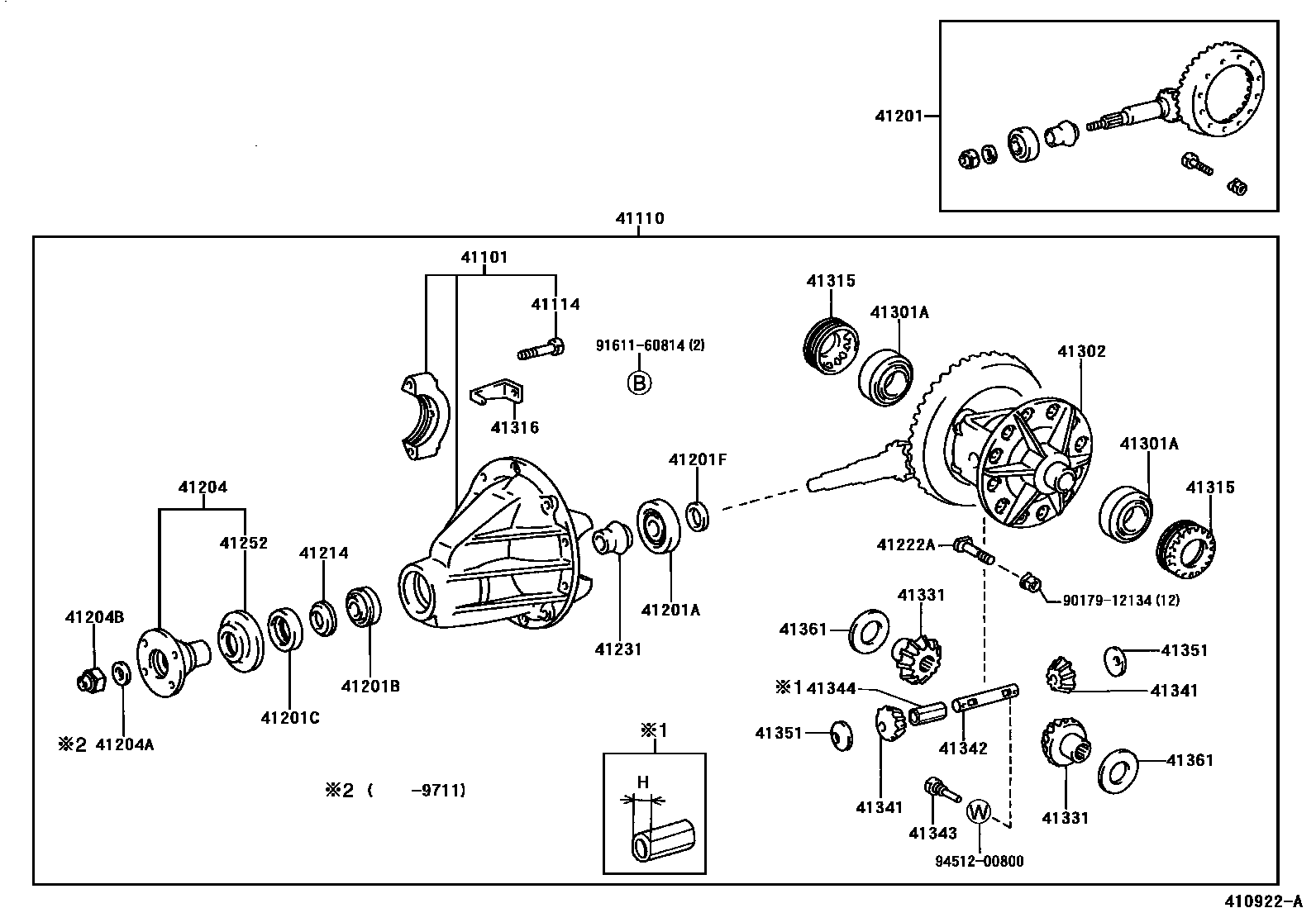

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35031iYY211..WT¥45,800199505-200002

main41101-35071iLY211..WT..CBU¥44,300199505-199511

sub41101-35170¥46,400

main41101-35170iLY21#..RHD..WT¥46,400199511-200110

sub41101-35171¥46,400

sub41115-35010¥200

main41101-36030iLY21#..WT..IV¥57,000199505-199905

sub41101-37010¥42,600

main41101-37010iLY212..WT..EUR¥42,600199905-200108

main41101-60130iLY21#,YY211..ST¥55,900199505-200108

sub41101-25020¥38,600

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-25083iYY211..WT¥178,000199505-199601

*FGR=39:10=3.900

sub41110-35411¥178,000

main41110-25102iYY211..ST¥244,000199505

*FGR=37:7=5.286

sub41110-25103¥244,000

main41110-25160iLY211..ST..(ARL,GEN)¥237,000199505

*FGR=39:8=4.875

sub41110-25161¥240,000

main41110-25191iLY211..WT..CBU¥184,000199505-199511

*FGR=41:11=3.727

sub41110-35870¥186,000

main41110-25210iLY21#..ST..EUR¥211,000199505

*FGR=41:9=4.555

sub41110-25211¥213,000

main41110-25280iYY211..WT¥176,000199610-200002

*FGR=43:11=3.909

sub41110-26620¥179,000

main41110-35411iYY211..WT¥178,000199601-199610

*FGR=39:10=3.900

sub41110-35A80¥178,000

main41110-35870iLY21#..WT..CBU¥186,000199511

*FGR=41:11=3.727

sub41110-35871¥155,000

main41110-35890iLY212..SA¥186,000199909

*FGR=41:10=4.100

sub41110-35891¥117,000

main41110-36381iLY21#..WT..IV¥278,000199505-199905

*FGR=37:8=4.625

sub41110-37080¥247,000

main41110-37080iLY212..WT..EUR¥247,000199905

*FGR=37:8=4.625

sub41110-37081¥171,000

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA¥260199505

main90105-16022iLY21#..WT..EUR¥410199505

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29436iLY21#..WT..IV¥84,600199505-199905

*FGR=37:8=4.625

sub41201-29437¥84,600

main41201-29775iYY211..WT¥66,600199505-199610

*FGR=39:10=3.900

sub41201-29517¥66,700

sub41204-35081¥5,900

sub41214-26011¥280

main41201-69365iLY21#..ST..EUR¥81,700199505

*FGR=41:9=4.556

sub41201-69366¥81,700

sub41204-35082¥5,800

sub41214-26011¥280

main41201-80068iLY212..SA¥68,600199909

*FGR=41:10=4.100

sub41201-80179¥68,900

sub41204-35081¥5,900

sub41214-26011¥280

main41201-80091iLY211..WT..CBU¥68,300199505-199511

*FGR=41:11=3.727

sub41201-80099¥68,600

main41201-80092iLY211..ST..(ARL,GEN)¥81,500199505

*FGR=39:8=4.875

sub41201-80206¥81,500

sub41204-35080¥5,900

sub41214-26011¥280

main41201-80093iYY211..ST¥81,500199505

*FGR=37:7=5.286

sub41201-80207¥81,500

sub41204-35080¥5,900

sub41214-26011¥280

main41201-80099iLY21#..WT..CBU¥68,600199511

*FGR=41:11=3.727

sub41201-80174¥68,600

sub41204-35081¥5,900

sub41214-26011¥280

main41201-80100iYY211..WT¥68,600199610-200002

*FGR=43:11=3.909

sub41201-80177¥68,900

sub41204-35081¥5,900

sub41214-26011¥280

main41201-80149iLY212..WT..EUR¥90,300199905

*FGR=37:8=4.625

sub41201-80590¥90,000

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35028iLY211..WT..CBU¥4,460199505-199511

sub90366-35087¥3,500

main90366-35044iYY211..WT¥2,550199505-200002

main90366-35087iLY21#..RHD..WT¥3,500199511

main90366-40001iLY21#..WT..IV¥7,700199505-199905

sub90366-40100¥7,700

main90366-40059iLY211,YY211..ST¥2,830199505-199711

main90366-40088iLY21#,YY211..ST¥2,880199711

main90366-40100iLY212..WT..EUR¥7,700199905

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iYY211..WT¥1,850199505-200002

sub90366-30078¥2,200

main90366-30025iLY211..WT..CBU¥1,860199505-199511

sub90366-30067¥2,970

main90366-30038iLY211,YY211..ST¥1,910199505-199711

main90366-30067iLY21#..RHD..WT¥2,970199511

main90366-30071iLY21#,YY211..ST¥1,960199711

main90366-35023iLY21#..WT..IV¥2,550199505-199905

main90366-35108iLY212..WT..EUR¥3,300199905

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38035iLY211,YY211..ST¥420199505-199603

sub90311-38047¥450

main90311-38047iLY21#,YY211..RHD..WT¥450199511-199801

main90311-38066iLY21#,YY211..ST¥420199801

main90311-38133iLY211,YY211..WT..CBU¥430199505-199601

sub90311-38047¥450

main90311-48019iLY212..WT..EUR¥600199905

sub90311-48024¥770

main90311-48135iLY21#..WT..IV¥600199505-199905

sub90311-48019¥600

41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)

main90201-35497iLY21#,YY211..RHD..WT¥180199505

OD=47,T=1.70

main90201-35498iLY21#,YY211..RHD..WT¥180199505

OD=47,T=1.73

main90201-35499iLY21#,YY211..RHD..WT¥180199505

OD=47,T=1.76

main90201-35500iLY21#,YY211..RHD..WT¥180199505

OD=47,T=1.79

main90201-35501iLY21#,YY211..RHD..WT¥180199505

OD=47,T=1.82

main90201-35502iLY21#,YY211..RHD..WT¥180199505

OD=47,T=1.85

main90201-35503iLY21#,YY211..RHD..WT¥180199505

OD=47,T=1.88

main90201-35504iLY21#,YY211..RHD..WT¥180199505

OD=47,T=1.91

main90201-35505iLY21#,YY211..RHD..WT¥180199505

OD=47,T=1.94

main90201-35506iLY21#,YY211..RHD..WT¥180199505

OD=47,T=1.97

main90201-35507iLY21#,YY211..RHD..WT¥180199505

OD=47,T=2.00

main90201-35508iLY21#,YY211..RHD..WT¥180199505

OD=47,T=2.03

main90201-35509iLY21#,YY211..RHD..WT¥180199505

OD=47,T=2.06

main90201-35510iLY21#,YY211..RHD..WT¥180199505

OD=47,T=2.09

main90201-35511iLY21#,YY211..RHD..WT¥180199505

OD=47,T=2.12

main90201-35512iLY21#,YY211..RHD..WT¥180199505

OD=47,T=2.15

main90201-35513iLY21#,YY211..RHD..WT¥180199505

OD=47,T=2.18

main90201-35514iLY21#,YY211..RHD..WT¥180199505

OD=47,T=2.21

main90201-35515iLY21#,YY211..RHD..WT¥120199505

OD=47,T=2.24,MARK 01

main90201-35516iLY21#,YY211..RHD..WT¥120199505

OD=47,T=2.27,MARK 02

main90201-35517iLY21#,YY211..RHD..WT¥120199505

OD=47,T=2.30,MARK 03

main90201-35518iLY21#,YY211..RHD..WT¥120199505

OD=47,T=2.33,MARK 04

main90201-40551iLY211,YY211..(T3,TW1,TW2)..TS¥300199505-199610

T=1.05

sub90564-40004¥170

main90201-40552iLY211,YY211..(T3,TW1,TW2)..TS¥300199505-199610

T=1.10

sub90564-40007¥170

main90201-40553iLY211,YY211..(T3,TW1,TW2)..TS¥330199505-199610

T=1.15

sub90564-40009¥190

main90201-40554iLY211,YY211..(T3,TW1,TW2)..TS¥330199505-199610

T=1.20

sub90564-40011¥190

main90201-40555iLY211,YY211..(T3,TW1,TW2)..TS¥330199505-199610

T=1.25

sub90564-40013¥190

main90201-40556iLY211,YY211..(T3,TW1,TW2)..TS¥330199505-199610

T=1.30

sub90564-40015¥190

main90201-40557iLY211,YY211..(T3,TW1,TW2)..TS¥330199505-199610

T=1.35

sub90564-40017¥190

main90201-40558iLY211,YY211..(T3,TW1,TW2)..TS¥330199505-199610

T=1.40

sub90564-40019¥190

main90201-40559iLY211,YY211..(T3,TW1,TW2)..TS¥330199505-199610

T=1.45

sub90564-40021¥190

main90201-40560iLY211,YY211..(T3,TW1,TW2)..TS¥330199505-199610

T=1.50

sub90564-40023¥190

main90201-40561iLY211,YY211..(T3,TW1,TW2)..TS¥330199505-199610

T=1.55

sub90564-40025¥190

main90564-40004iLY21#,YY211..(T3,TW1,TW2)..TS¥170199610

T=1.05

main90564-40006iLY21#,YY211..(T3,TW1,TW2)..TS¥200199610

T=1.075

main90564-40007iLY21#,YY211..(T3,TW1,TW2)..TS¥170199610

T=1.10

main90564-40008iLY21#,YY211..(T3,TW1,TW2)..TS¥200199610

T=1.125

main90564-40009iLY21#,YY211..(T3,TW1,TW2)..TS¥190199610

T=1.15

main90564-40010iLY21#,YY211..(T3,TW1,TW2)..TS¥200199610

T=1.175

main90564-40011iLY21#,YY211..(T3,TW1,TW2)..TS¥190199610

T=1.20

main90564-40012iLY21#,YY211..(T3,TW1,TW2)..TS¥200199610

T=1.225

main90564-40013iLY21#,YY211..(T3,TW1,TW2)..TS¥190199610

T=1.25

main90564-40014iLY21#,YY211..(T3,TW1,TW2)..TS¥200199610

T=1.275

main90564-40015iLY21#,YY211..(T3,TW1,TW2)..TS¥190199610

T=1.30

main90564-40016iLY21#,YY211..(T3,TW1,TW2)..TS¥200199610

T=1.325

main90564-40017iLY21#,YY211..(T3,TW1,TW2)..TS¥190199610

T=1.35

main90564-40018iLY21#,YY211..(T3,TW1,TW2)..TS¥200199610

T=1.375

main90564-40019iLY21#,YY211..(T3,TW1,TW2)..TS¥190199610

T=1.40

main90564-40020iLY21#,YY211..(T3,TW1,TW2)..TS¥200199610

T=1.425

main90564-40021iLY21#,YY211..(T3,TW1,TW2)..TS¥190199610

T=1.45

main90564-40022iLY21#,YY211..(T3,TW1,TW2)..TS¥200199610

T=1.475

main90564-40023iLY21#,YY211..(T3,TW1,TW2)..TS¥190199610

T=1.50

main90564-40024iLY21#,YY211..(T3,TW1,TW2)..TS¥200199610

T=1.525

main90564-40025iLY21#,YY211..(T3,TW1,TW2)..TS¥190199610

T=1.55

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35040iYY211..WT¥7,200199505-200002

main41204-35080iLY211..WT..CBU¥5,900199511-200110

main41204-36050iLY21#..WT..IV¥8,600199505-199905

main41204-37010iLY212..WT..EUR¥6,800199905-200108

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-22007iLY211,YY211..ST¥330199505-199711

main90201-23002iLY21#..WT..EUR¥370199505

41204BNUT (FOR REAR DRIVE PINION)

main90179-20018iLY21#,YY211..RHD..WT¥220199505

OD=37

main90179-22003iLY21#..WT..EUR¥360199505

main90179-22011iLY211,YY211..ST¥270199505-199711

sub90179-22016¥220

main90179-22016iLY21#,YY211..ST¥220199711

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA¥460199505

main41214-36030iLY21#..WT..IV¥330199505-199905

sub41214-37010¥300

main41214-37010iLY212..WT..EUR¥300199905

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iLY21#,YY211..RHD..WT¥200199505

main41222-36020iLY21#..WT..EUR¥400199505

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main41226-35010iLY21#,YY211..ST¥300199505

main90101-11353iLY21#,YY211..RHD..WT¥120199505

main90101-14315iLY21#..WT..EUR¥110199505

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iLY21#..RHD..WT¥640199505

main41231-36040iLY21#..WT..EUR¥520199505

main41231-40011iYY211..WT¥3,160199505-200002

main41231-60030iLY21#,YY211..ST¥910199505

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35020iYY211;LY211..ST¥2,370199505-200002

main41252-35040iLY211..ST..EUR;LY212,YY211..ST;LY21#..ARL,GEN,SA¥750199511-200110

main41252-36010iLY21#..WT..IV¥580199505-199905

sub41252-37020¥540

main41252-37020iLY212..WT..EUR¥540199905-200108

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iLY21#..RHD..WT¥2,690199505

main90366-50054iLY21#,YY211..ST¥2,200199711

sub90366-50177¥2,200

main90366-52004iLY212..WT..EUR¥2,800199905

main90368-45066iYY211..WT¥2,360199505-200002

main90368-50024iLY211,YY211..ST¥2,940199505-199711

main90368-52043iLY21#..WT..IV¥3,680199505-199905

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-36030iLY21#..WT..EUR¥38,900199505

main41302-35020iLY21#..RHD..WT¥23,900199505

sub41302-26010¥18,100

main41311-40020iYY211..WT¥21,600199505-200002

sub41311-40021¥28,300

sub90105-11063¥100

main41311-60070iLY21#,YY211..ST¥29,800199505

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iLY21#,YY211..ST¥450199505

main41315-35010iYY211..WT¥520199505-200002

main41315-35020iLY21#..RHD..WT¥370199505

main41315-36011iLY21#..WT..EUR¥590199505

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iLY211,YY211..ST¥110199505-199711

main41316-30010iLY21#,YY211..ST¥110199711

SINGLE TYPE

main41316-35010iLY21#,YY211..RHD..WT¥90199505

main41316-36011iLY21#..WT..EUR¥170199505

SINGLE TYPE

main41317-30010iLY21#,YY211..ST¥130199711

DOUBLE TYPE

main41317-36011iLY21#..WT..EUR¥280199505

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-25010iLY21#,YY211..ST¥6,400199505

main41331-35011iYY211..WT¥3,630199505-200002

main41331-35040iLY21#..RHD..WT¥5,700199505-200005

sub41039-34060¥26,300

sub41039-34080¥16,600

main41331-36020iLY21#..WT..EUR¥4,260199505

41341PINION, REAR DIFFERENTIAL

main41341-25010iLY21#,YY211..ST¥3,160199505

main41341-30020iLY21#..RHD..WT¥2,830199505-200005

sub41341-30050¥2,830

main41341-35020iYY211..WT¥1,690199505-200002

main41341-55012iLY211..WT..IV¥2,690199505-199710

sub41341-55013¥1,750

main41341-55013iLY21#..WT..EUR¥1,750199710

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39610iYY211..WT¥810199505-200002

main41342-55010iLY21#,YY211..ST¥1,550199505

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main41343-60030iLY21#,YY211..ST¥410199505

main90250-06085iYY211..WT¥110199505-200002

41344SPACER, DIFFERENTIAL PINION SHAFT

main41344-35010iLY21#,YY211..ST¥940199505

H=29.8

main41345-35010iLY21#,YY211..ST¥940199505

H=30.2

main41346-35010iLY21#,YY211..ST¥990199505

H=30.6

main41347-35010iLY21#,YY211..ST¥1,130199505

H=29.0

main41348-35010iLY21#,YY211..ST¥1,130199505

H=29.4

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-25010iLY21#,YY211..ST¥760199505

main41351-30052iYY211..WT¥140199505-200002

main41351-30060iLY21#..RHD..WT¥140199505

main41351-35011iLY21#..WT..EUR¥520199505

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-24010iLY211..WT..CBU¥410199505-199509

T=0.90

sub41361-60E10¥430

main41361-24020iLY211..WT..CBU¥410199505-199509

T=1.00

sub41361-60E50¥430

main41361-24030iLY211..WT..CBU¥410199505-199509

T=1.10

sub41361-60E90¥440

main41361-24040iLY211..WT..CBU¥410199505-199509

T=1.20

sub41361-60F30¥450

main41361-24050iLY211..WT..CBU¥410199505-199509

T=1.30

sub41361-60F70¥510

main41361-35310iLY21#..RHD..WT¥250199509

T=0.9

main41361-35320iLY21#..RHD..WT¥250199509

T=1.0

main41361-35330iLY21#..RHD..WT¥270199509

T=1.1

main41361-35340iLY21#..RHD..WT¥310199509

T=1.2

main41361-35350iLY21#..RHD..WT¥330199509

T=1.3

main41361-40021iYY211..WT¥380199505-200002

T=1.6

main41361-60010iLY211,YY211..(T3,TW1,TW2)..TS¥1,350199505-199606

T=1.60

sub41361-60011¥350

main41361-60011iLY21#,YY211..(T3,TW1,TW2)..TS¥350199606

T=1.60

main41361-60020iLY211,YY211..(T3,TW1,TW2)..TS¥1,530199505-199606

T=1.75

sub41361-60021¥390

main41361-60021iLY21#,YY211..(T3,TW1,TW2)..TS¥390199606

T=1.75

main41361-60030iLY211,YY211..(T3,TW1,TW2)..TS¥1,620199505-199608

T=1.90

sub41361-60031¥430

main41361-60031iLY21#,YY211..(T3,TW1,TW2)..TS¥430199608

T=1.90

main41361-60040iLY211,YY211..(T3,TW1,TW2)..TS¥1,700199505-199608

T=2.05

sub41361-60041¥460

main41361-60041iLY21#,YY211..(T3,TW1,TW2)..TS¥460199608

T=2.05

main41361-60480iLY21#,YY211..(T3,TW1,TW2)..TS¥340199609

T=1.55

main41361-60490iLY21#,YY211..(T3,TW1,TW2)..TS¥370199609

T=1.65

main41361-60500iLY21#,YY211..(T3,TW1,TW2)..TS¥380199609

T=1.70

main41361-60510iLY21#,YY211..(T3,TW1,TW2)..TS¥390199609

T=1.80

main41361-60520iLY21#,YY211..(T3,TW1,TW2)..TS¥410199609

T=1.85

main41361-60530iLY21#,YY211..(T3,TW1,TW2)..TS¥440199609

T=1.95

main41361-60540iLY21#,YY211..(T3,TW1,TW2)..TS¥440199609

T=2.00

main41361-60550iLY21#,YY211..(T3,TW1,TW2)..TS¥510199609

T=2.10

main41362-40021iYY211..WT¥380199505-200002

T=1.7

main41363-40021iYY211..WT¥380199505-200002

T=1.8

9017912134

main90179-12134¥540

9161160814

main91611-60814¥100

9451200800

main94512-00800¥80

30 parts on this diagram · 7 diagrams in section
