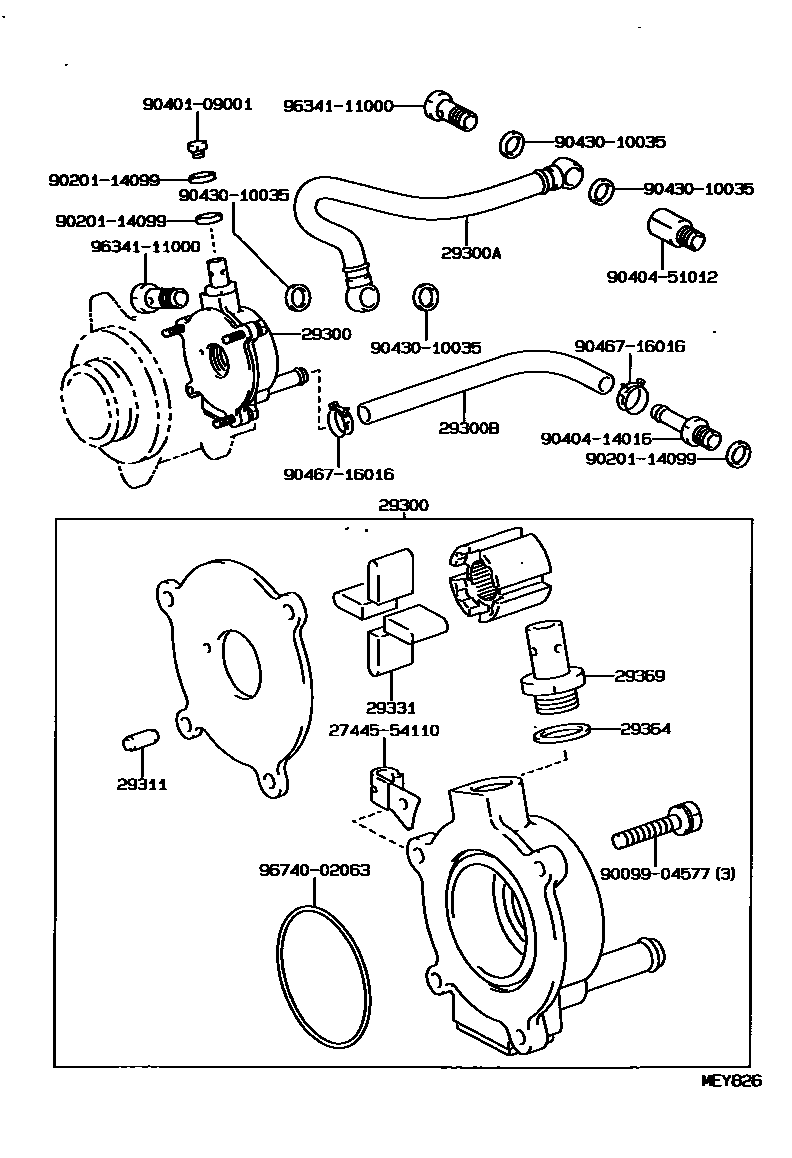

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-54061i3L,5L..LY21#199505-199905

main29300-54180i3L,5L..LY21#199905

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02117i3L,5L..LY21#199505-199905

main90923-02118i3L,5L..LY21#199905

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54030i3L,5L..LY21#199505-199905

main29611-54050i3L,5L..LY21#199905

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i3L,5L..LY21#199505-199905

29331BLADE, VACUUM PUMP, A

main29331-54130i3L,5L..LY21#199905

main29331-78010i3L,5L..LY21#199505-199905

29364WASHER, VACUUM PUMP

main29364-66010i3L,5L..LY21#199505

29369VALVE SUB-ASSY, CHECK

main29369-56070i3L,5L..LY21#199505-199905

main29369-64030i3L,5L..LY21#199905

2744554110

main27445-54110

9009904577

main90099-04577

9020114099

main90201-14099

9040109001

main90401-09001

9040414016

main90404-14016

9040451012

main90404-51012

9043010035

main90430-10035

9046715016

main90467-15016

9046716016

main90467-16016

9634111000

main96341-11000

9674002063

main96740-02063

18 parts on this diagram · 2 diagrams in section
