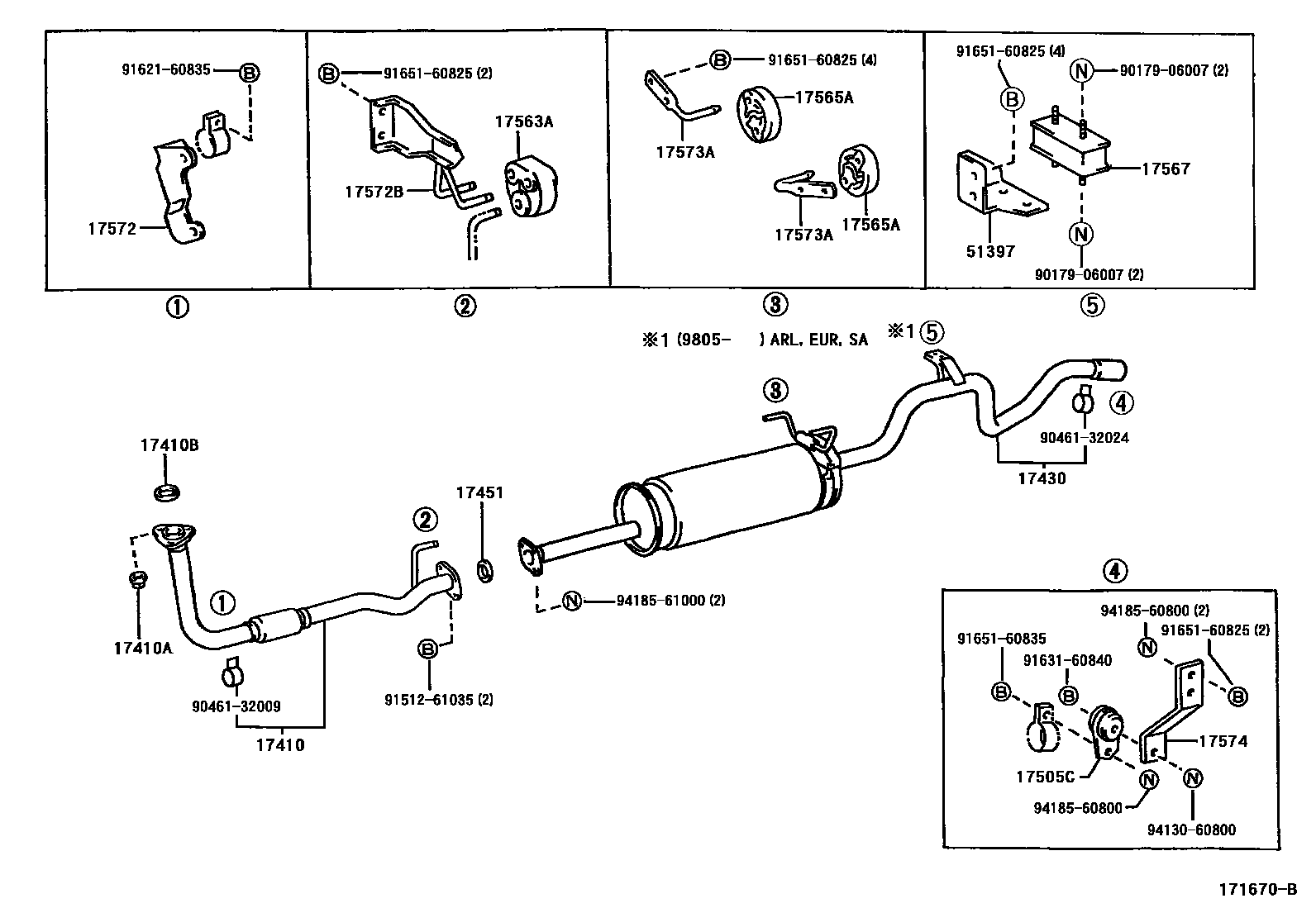

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1SINGAPORE SPEC

17410PIPE ASSY, EXHAUST, FRONT

main17410-5B210i3L,5L..LY21#..ARL,EUR199505-199905

main17410-5B220i3L..LY211..GEN199505

sub17410-5B210

main17410-5B380i5L..LY212;3L..LY211..ARL199905

main17410-73600i3Y..YY211..RHD..ST199505-199508

SINGAPORE SPEC

main17410-73600i3Y..YY211..WT199505-200002

main17410-73610i3Y..YY211..ST199505

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i3L,5L,3Y..LY21#,YY211199505

17410BGASKET, EXHAUST PIPE

main90917-06064i3Y..YY211199505

main90917-06066i3L,5L..LY21#199505

17430PIPE ASSY, EXHAUST, TAIL

main17430-5B700i3Y..YY211..WT199505-200002

sub17430-5B701

main17430-5B700i3Y..YY211..RHD..ST199505-199508

SINGAPORE SPEC

sub17430-5B701

main17430-5B710i3Y..YY211..ST199505

main17430-5B730i3L..LY211..ARL199505-199610

sub17430-5B740

main17430-5B740i3L..LY211..ARL,EUR199505-199805

sub17430-5B741

main17430-5B750i3L..LY211..GEN199505-200103

sub17430-5B751

main17430-5B751i3L..LY211..GEN200103

main17430-5D060i5L..LY212;3L..LY211..ARL199805-200103

sub17430-5D061

main17430-5D061i5L..LY212;3L..LY211..ARL200103

17451GASKET, EXHAUST PIPE

main90917-06039i3Y..YY211199505-200107

REAR

main90917-06045i3Y..YY211199505-200107

FRONT

main90917-06045i3Y..YY211..RHD..ST199505-199508

SINGAPORE SPEC

main90917-06045i3L,5L..LY21#199505-200110

17505CCUSHION, EXHAUST PIPE(FOR HEAT INSULATOR)

main90917-08009i3L,5L,3Y..LY21#,YY211199505

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-54030i3L,5L..LY21#;3Y..YY211..ST199505

main17565-63030i3Y..YY211..RHD..ST199505-199508

SINGAPORE SPEC

main17565-63030i3Y..YY211..WT199505-200002

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-63030i3L,5L,3Y..LY21#,YY211199505

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-61010i3Y..YY211..WT199505-199805

main17567-61010i3Y..YY211..RHD..ST199505-199508

SINGAPORE SPEC

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17571-54460i3L,5L..LY21#199505

main17571-71040i3Y..YY211199505

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17562-72111i3Y..YY211..RHD..ST199505-199508

SINGAPORE SPEC,PIPE SIDE

main17562-72111i3Y..YY211..WT199505-200002

PIPE SIDE

main17572-54220i3L,5L..LY21#;3Y..YY211..ST199505

main17572-72040i3Y..YY211..WT199505-200002

BODY SIDE

main17572-72040i3Y..YY211..RHD..ST199505-199508

SINGAPORE SPEC,BODY SIDE

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17575-54040i3L,5L,3Y..LY21#,YY211199505

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-54060i3L,5L,3Y..LY21#,YY211199505

51397BRACKET, EXHAUST PIPE CLAMP, NO.3

main51397-25010iYY211..RHD..ST199505-199508

SINGAPORE SPEC

main51397-25010iLY21#..ST..(ARL,EUR)199805

main51397-25020iLY212,YY211..WT199505

9017906007

main90179-06007

9046132009

main90461-32009

9046132024

main90461-32024

9151261035

main91512-61035

9162160835

main91621-60835

9163160840

main91631-60840

9165160825

main91651-60825

9165160835

main91651-60835

9413060800

main94130-60800

9418560800

main94185-60800

9418561000

main94185-61000

25 parts on this diagram · 4 diagrams in section
