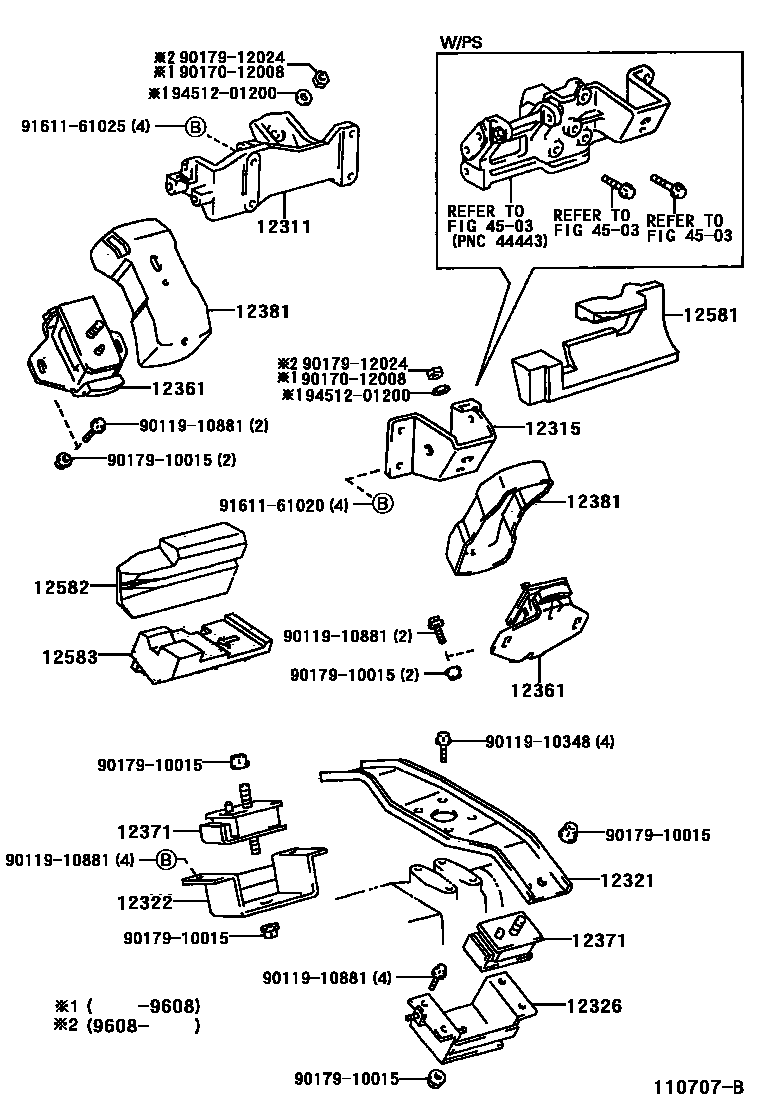

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-54091i3L,5L..LY21#199505-199905

main12311-54260i3L,5L..LY21#199905

main12311-71010i3Y..YY211199505

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54021i3L..LY211..ARL,GEN199505-199610

main12315-71010i3Y..YY211199505

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-73010i3Y..YY211199505

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-71070i3L,5L..LY21#199505

12326BRACKET, ENGINE MOUNTING STAY

main12326-71010i3L,5L..LY21#199505

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-54121i3L,5L..LY21#199505

main12361-71020i3Y..YY211199505

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-54070i3L,5L..LY21#199505

12381STABILIZER, ENGINE MOUNTING

main12381-54040i3L,5L..LY21#199505

main12381-71030i3Y..YY211199505

12581INSULATOR, CYLINDER BLOCK, NO.1

main12581-54010i3L,5L..LY21#..EUR199505

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-54020i3L..LY211..EUR199505-199509

sub12582-54021

main12582-54021i3L,5L..LY21#..EUR199509

12583INSULATOR, CYLINDER BLOCK, NO.3

main12583-54030i3L,5L..LY21#..EUR199505

4503

9011910348

main90119-10348

9011910881

main90119-10881

9017012008

main90170-12008

9017910015

main90179-10015

9017912024

main90179-12024

9161161020

main91611-61020

9161161025

main91611-61025

9451201200

main94512-01200

20 parts on this diagram · 2 diagrams in section
