HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

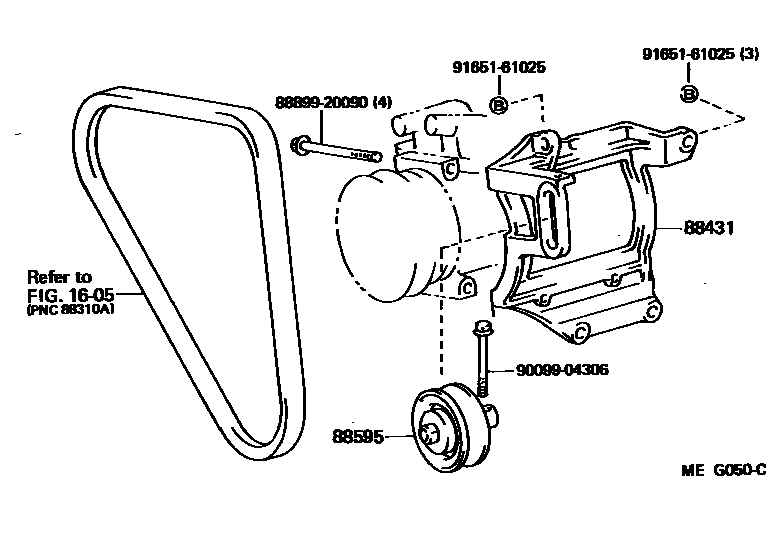

1605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-28050iYY6#..RHD198508-198703

DEALER OPTION

sub88431-22200

main88431-28070iYY5#,6#..LHD198508-198708

MAKER OPTION

main88431-28070iYY6#..RHD198703-198708

DEALER OPTION

main88431-35100iLY60..ARL,GEN198508-198708

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-35010iLY60..ARL,GEN198508-198708

main88440-35020iYY5#,6#..GEN198508-198708

8889920090COVER, EVAPORATOR

main88899-20090

9009904306

main90099-04306

9165161025

main91651-61025

6 parts on this diagram · 4 diagrams in section
