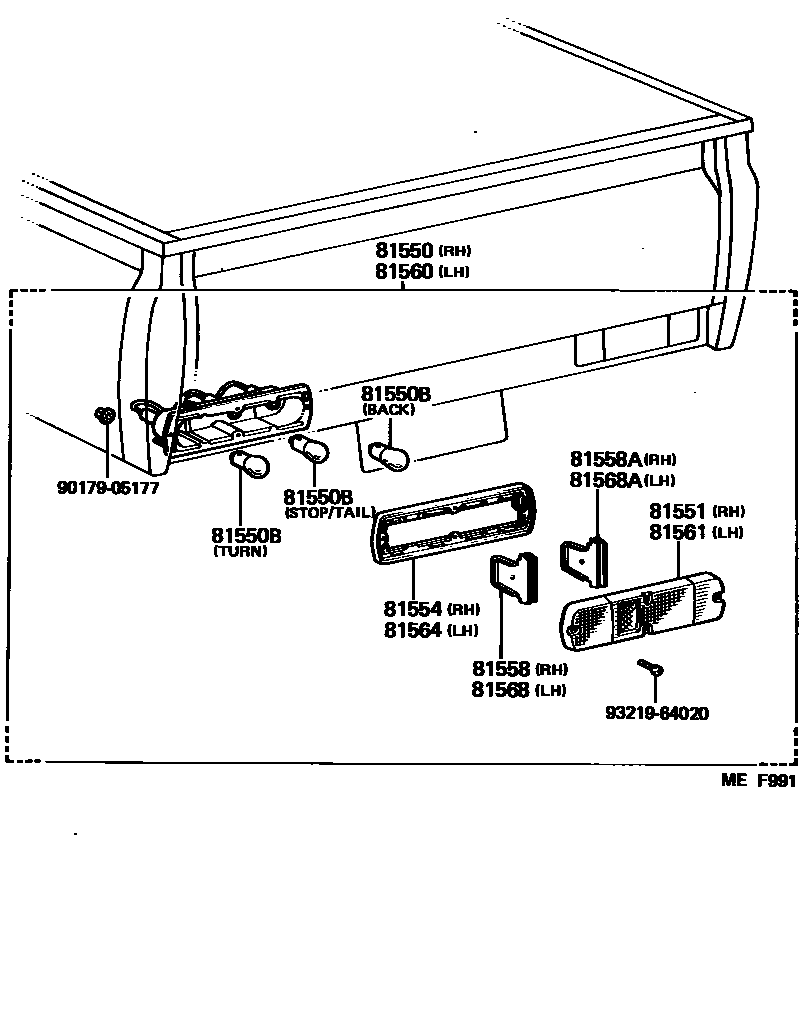

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-39475iLY60,YY61..EUR¥12,100198508-198708

sub81550-95418¥14,600

main81550-95012iLY60,YY5#,6#..ARL,GEN¥9,300198508-198708

sub81550-95A10¥8,700

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iLY60,YY61..EUR¥170198508-198708

12V 21W,12V 21W(TURN OR BACK)

main99132-11230iLY60,YY5#,6#..ARL,GEN198508-198708

12V 23W,12V 23W(TURN OR BACK)

main99132-21210iLY60,YY5#,6#¥190198508-198708

12V 21/5W,12V 21/5W(STOP/TAIL)

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iLY60,YY5#,6#..ARL,GEN¥1,860198508-198708

main81551-95403iLY60,YY61..EUR¥3,130198508-198708

sub81551-95417¥3,120

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-25060iLY60,YY5#,6#..ARL,GEN¥1,260198508-198708

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iLY60,YY5#,6#..ARL,GEN¥750198508-198708

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81557-25060iLY60,YY5#,6#..ARL,GEN¥750198508-198708

81560LAMP ASSY, REAR COMBINATION, LH

main81560-39445iLY60,YY61..EUR¥12,100198508-198708

sub81560-95419¥14,600

main81560-95012iLY60,YY5#,6#..ARL,GEN¥9,300198508-198708

sub81560-95A10¥8,700

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLY60,YY5#,6#..ARL,GEN¥1,860198508-198708

main81561-95403iLY60,YY61..EUR¥3,130198508-198708

sub81561-95418¥3,130

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-25040iLY60,YY5#,6#..ARL,GEN¥1,260198508-198708

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iLY60,YY5#,6#..ARL,GEN¥750198508-198708

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81557-25060iLY60,YY5#,6#..ARL,GEN¥750198508-198708

9017905177

main90179-05177¥120

9321964020

main93219-64020¥130

13 parts on this diagram · 2 diagrams in section
