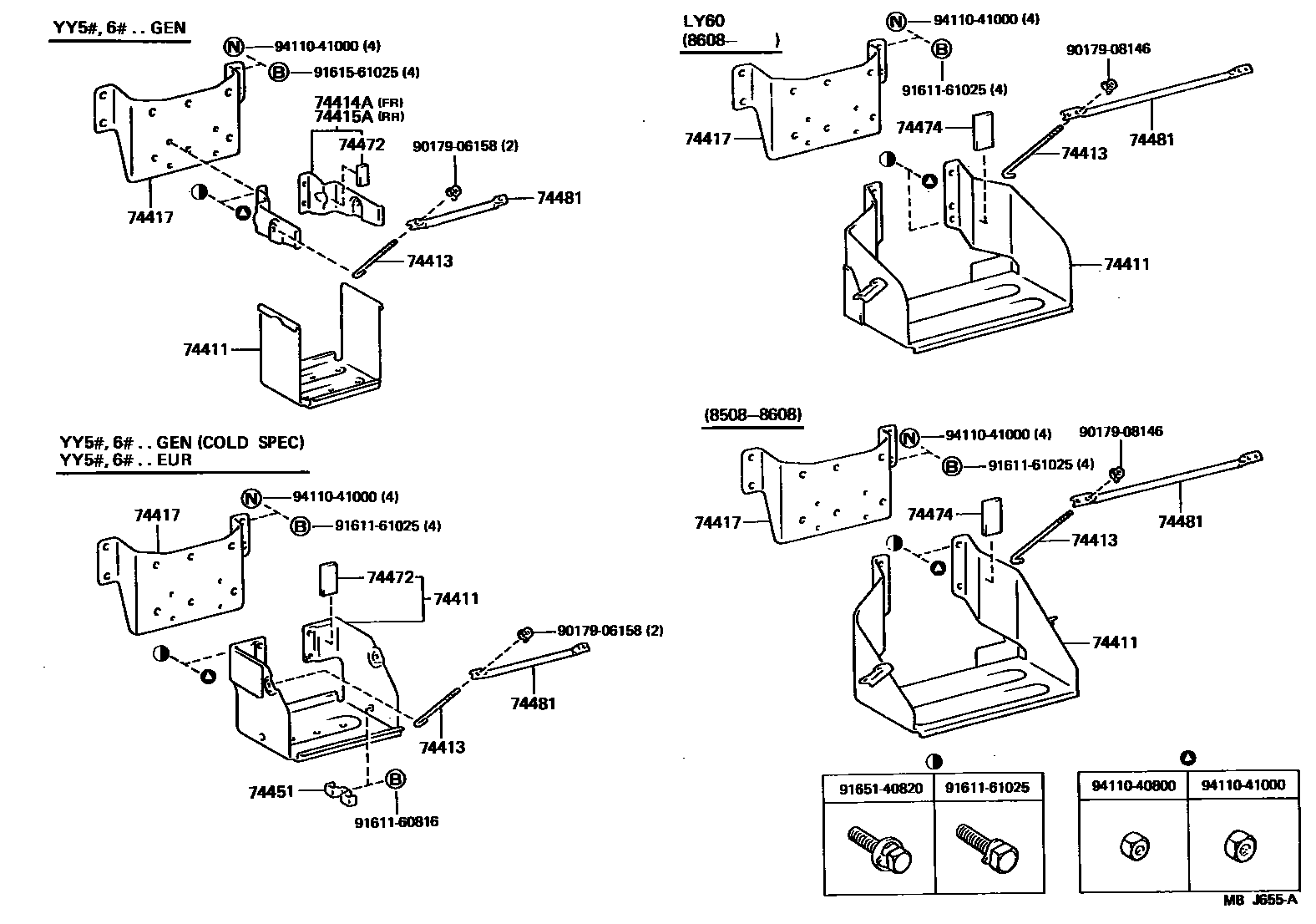

BATTERY CARRIER

74411CARRIER, BATTERY

main74042-25020iLY60..TW198508-198708

sub74042-25021

main74042-25030iLY60..EUR198608-198708

COLD SPEC

main74042-36020iLY60..T2,T3198508-198708

main74042-36041iLY60..EUR198508-198608

COLD SPEC

main74421-25020iYY5#,6#..GEN198508-198708

COLD SPEC

sub74421-26020

main74421-26010iYY5#,6#..GEN198508-198708

74413BOLT, BATTERY CLAMP

main74451-25020iYY5#,6#198508-198708

main74451-36070×2iLY60198508-198708

74414ABRACKET, BATTERY, NO.1

main74411-25011iYY5#,6#..GEN198508-198708

74415ABRACKET, BATTERY, NO.2

main74412-25011iYY5#,6#..GEN198508-198708

74417BRACKET, BATTERY CARRIER

main74417-25020iYY6#..T2,T3198508-198708

main74417-25030iLY60..T2,T3198508-198708

74451PLATE, BATTERY CARRIER SUPPORT

main74451-25050iYY51,6#198508-198708

74472PAD, BATTERY SIDE

main74472-25010iYY5#,6#..GEN198508-198708

main74472-25020×2iYY5#,6#..GEN198508-198708

COLD SPEC

74474PAD, BATTERY

main74475-36040iLY60198508-198708

74481CLAMP, BATTERY HOLD DOWN

main74453-25080iYY5#,6#..GEN198508-198708

main74453-25090iYY5#,6#..GEN198508-198708

COLD SPEC

main74453-25100iLY60198508-198708

main74453-36050iLY60..EUR198508-198708

COLD SPEC

sub74453-36060

9017906158

main90179-06158

9017908146

main90179-08146

9161160816

main91611-60816

9161161025

main91611-61025

9161561025

main91615-61025

9165140820

main91651-40820

9411040800

main94110-40800

9411041000

main94110-41000

17 parts on this diagram · 1 diagram in section
