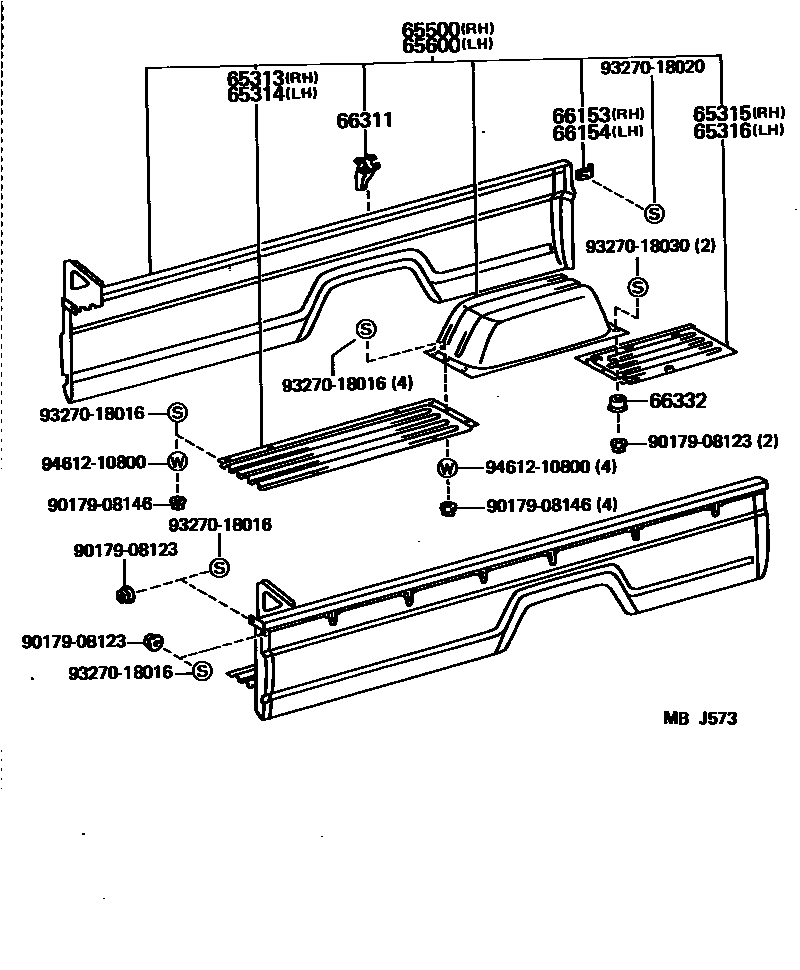

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-95405iLY60,YY6#..TW198508-198708

main65313-95A05iYY5#198508-198708

65314PANEL, FLOOR FRONT CORNER, LH

main65314-95404iLY60,YY6#..TW198508-198708

main65314-95A03iYY5#198508-198708

65315PANEL, FLOOR REAR CORNER, RH

main65315-95405iLY60,YY5#,6#..TW198508-198708

sub65315-25010

65316PANEL, FLOOR REAR CORNER, LH

main65316-95405iLY60,YY5#,6#..TW198508-198708

sub65316-25010

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-95067iLY60,YY6#..TW198508-198708

main65500-95069iLY60,YY6#..(T2,T3)..GEN198508-198708

sub65500-25040

main65500-95411iLY60,YY61..EUR198508-198708

sub65500-95432

main65500-95A09iYY5#198508-198708

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-95069iLY60,YY6#..TW198508-198708

main65600-95071iLY60,YY6#..(T2,T3)..GEN198508-198708

sub65600-25040

main65600-95409iLY60,YY61..EUR198508-198708

sub65600-95424

main65600-95A08iYY5#198508-198708

66153LATCH, TAIL GATE FEMALE, RH

main66153-95012iLY60,YY5#,6#..TW198508-198708

main66153-95111iLY60,YY61..EUR198508-198708

main66153-95A00iLY60,YY6#..(T2,T3)..GEN198508-198707

sub66153-95A01

main66153-95A01iLY60,YY6#..(T2,T3)..GEN198707-198708

66154LATCH, TAIL GATE FEMALE, LH

main66153-95012iLY60,YY5#,6#..TW198508-198708

main66154-95111iLY60,YY61..EUR198508-198708

main66154-95A00iLY60,YY6#..(T2,T3)..GEN198508-198707

sub66154-95A01

main66154-95A01iLY60,YY6#..(T2,T3)..GEN198707-198708

66311HOOK, ROPE

main66311-95010iLY60,YY5#,6#..TW198508-198708

sub66311-90K00

main66311-95400iLY60,YY61..EUR198508-198708

sub66311-37010

66332CUSHION, RUBBER

main66332-95A00iLY60,YY5#,6#..TW198508-198708

9017908123

main90179-08123

9017908146

main90179-08146

9327018016

main93270-18016

9327018020

main93270-18020

9327018030

main93270-18030

9461210800

main94612-10800

16 parts on this diagram · 3 diagrams in section
