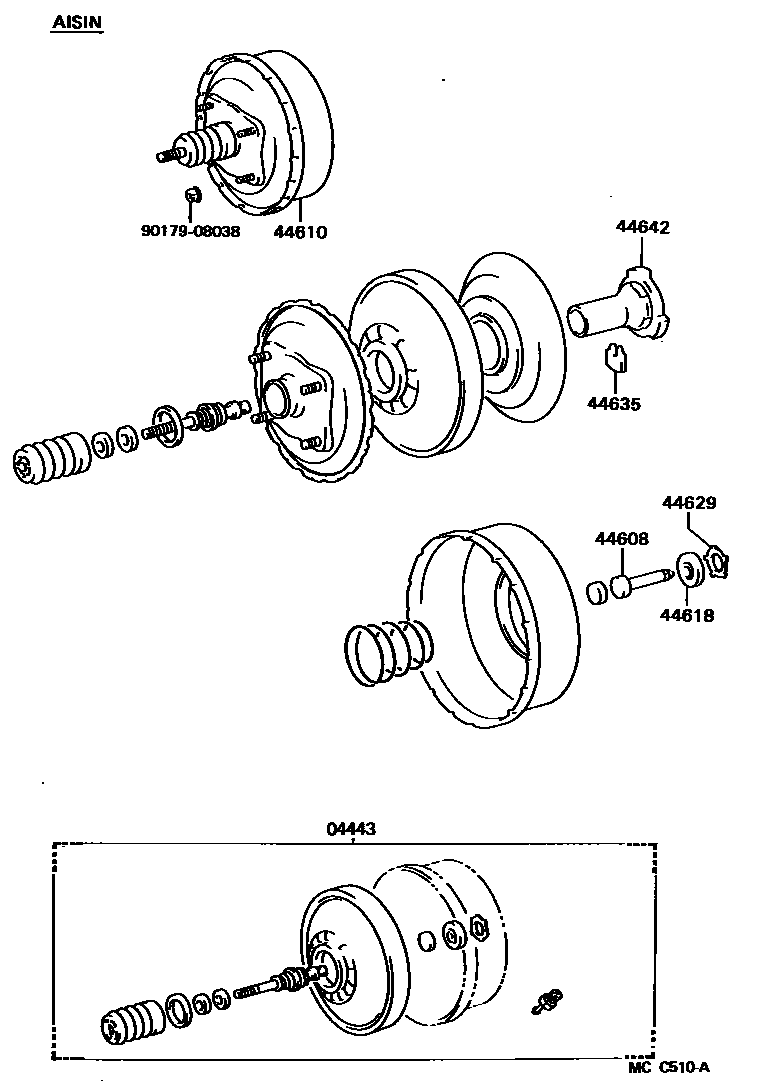

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-25110iLY60..WT..GEN¥11,400198508-198708

9INCHES BOOSTER

main04443-25120iYY61..WT¥11,400198508-198708

9INCHES BOOSTER

main04443-25130iYY51,6#..GEN¥12,900198508-198708

10.5INCHES BOOSTER

main04443-25140iLY60..LHD¥12,900198508-198708

10.5INCHES BOOSTER

main04443-25150iLY60..EUR¥12,800198508-198608

10.5INCHES BOOSTER

main04443-25160iYY5#,6#..ST¥11,400198508-198708

9INCHES BOOSTER

main04443-25170iLY60..GEN¥11,400198508-198708

9INCHES BOOSTER

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-36240iLY60,YY5#,6#..GEN¥1,970198508-198708

main44608-25150iLY60,YY5#,6#..T3,TW198508-198708

10.5INCHES BOOSTER

44610BOOSTER ASSY, BRAKE

main44610-25130iLY60,YY61..WT..GEN¥45,700198508-198708

9INCHES BOOSTER

main44610-25140iLY60,YY5#,6#..LHD..GEN¥45,700198508-198708

9INCHES BOOSTER

main44610-25150iLY60,YY6#..RHD..ST¥51,000198508-198708

10.5INCHES BOOSTER

main44610-25160iLY60,YY51,60..LHD..GEN¥51,000198508-198708

10.5INCHES BOOSTER

main44610-25170iLY60..EUR¥50,800198508-198608

10.5INCHES BOOSTER

main44610-25180iLY60,YY6#..RHD..ST..GEN¥45,700198508-198708

9INCHES BOOSTER

44618SEAL, BOOSTER BODY

main44621-28120iLY60,YY5#,6#..GEN¥590198508-198708

44629RING, CIRCULAR INTERNAL

main44628-28120iLY60,YY5#,6#..GEN¥390198508-198708

44635RETAINER, HYDRAULIC VALVE

main44635-36240iLY60,YY5#,6#..GEN¥200198508-198708

44642PISTON, BRAKE BOOSTER

main44642-36240iLY60,YY5#,6#..ARL,GEN¥3,460198508-198708

main44642-36260iLY60,YY61..WT..GEN¥3,460198508-198708

9017908038

main90179-08038¥130

8 parts on this diagram · 4 diagrams in section
