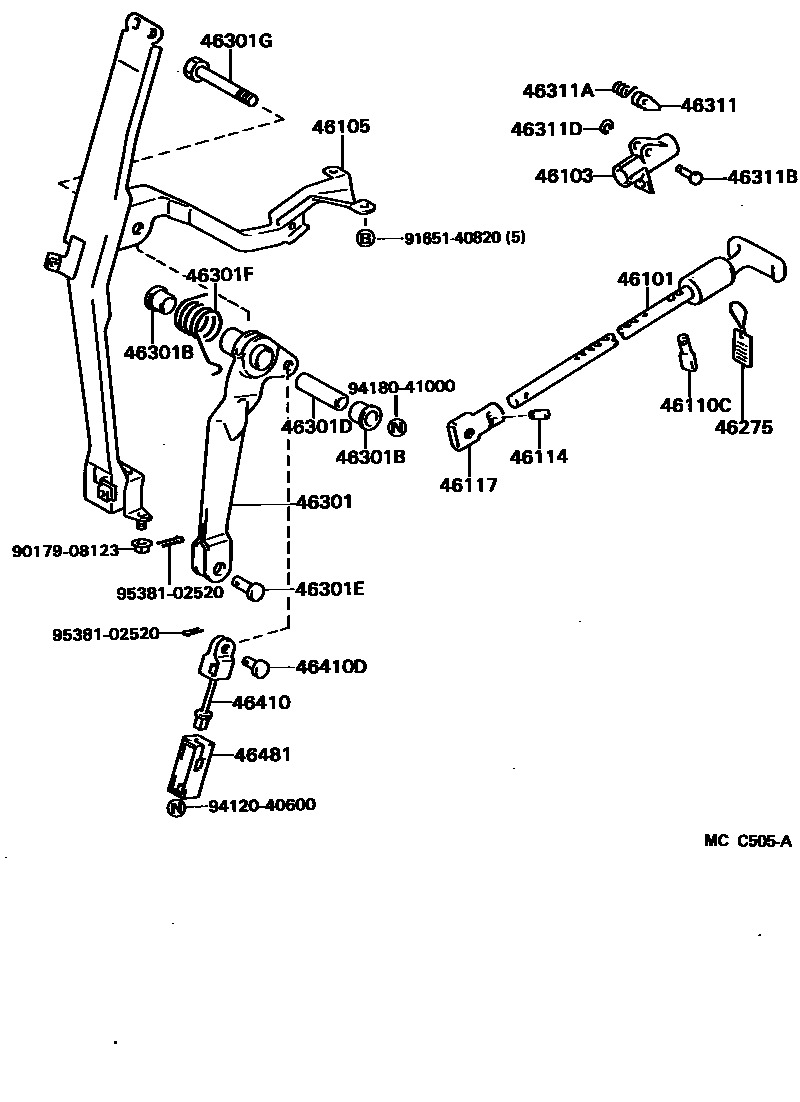

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46101-36180-01iLY60,YY6#..RHD198508-198708

BLACK,BLACK

sub46101-36180

main46101-36190-01iLY60,YY5#,6#..LHD198508-198708

BLACK,BLACK

sub46101-36190

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-36140iLY60,YY6#..RHD198508-198708

main46103-36150iLY60,YY5#,6#..LHD198508-198708

46105BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL

main46105-25010iLY60,YY6#..RHD198508-198708

sub46105-25011

main46105-25020iLY60,YY5#,6#..LHD198508-198708

sub46105-25021

46110CPIN(FOR PARKING BRAKE HANDLE SET)

main46114-20010iLY60,YY5#,6#198508-198708

46114PIN, PARKING BRAKE PLUNGER

main46114-30010iLY60,YY5#,6#198508-198708

46117SLEEVE, PARKING BRAKE PLUNGER

main46117-30010iLY60,YY6#..RHD198508-198708

main46117-30020iLY60,YY5#,6#..LHD198508-198708

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-26010iLY60,YY5#,6#198508-198708

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-36070iLY60,YY5#,6#198508-198708

46301BBUSH(FOR INTERMEDIATE LEVER)

main90386-13007iLY60,YY5#,6#198508-198708

46301DCOLLAR(FOR INTERMEDIATE LEVER)

main90387-10004iLY60,YY5#,6#198508-198708

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08010iLY60,YY5#,6#198508-198708

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-35024iLY60,YY5#,6#198508-198708

46301GBOLT(FOR INTERMEDIATE LEVER)

main91111-71070iLY60,YY5#,6#198508-198708

46311PAWL, PARKING BRAKE

main46311-26010iLY60,YY5#,6#198508-198708

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08041iLY60,YY5#,6#198508-198708

46311BPIN, PARKING BRAKE PAWL PIVOT

main90249-05010iLY60,YY5#,6#198508-198708

46311DWASHER, TYPE C(FOR PARKING BRAKE PAWL)

main90213-03007iLY60,YY5#,6#198508-198708

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-36121iLY60,YY5#,6#198508-198708

sub46410-36350

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90240-08094iLY60,YY5#,6#198508-198708

46481CONNECTOR, PARKING CABLE

main46481-36012iLY60,YY5#,6#198508-198708

9017908123

main90179-08123

9165140820

main91651-40820

9412040600

main94120-40600

9418041000

main94180-41000

9538102520

main95381-02520

25 parts on this diagram · 4 diagrams in section
