STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-25080-01iLY60,YY5#,6#198508-198708

BLACK,BLACK

sub45100-25080

45125MARK, STEERING WHEEL PAD

main45125-25030-01iLY60,YY5#,6#198508-198708

BLACK,BLACK

sub45125-25030

45129BUTTON, HORN, NO.2

main45129-36010iLY60,YY5#,6#198508-198708

45130BUTTON ASSY, HORN

main45130-25060-01iLY60,YY5#,6#198508-198708

BLACK,BLACK

sub45130-25060

45131BUTTON, HORN, NO.1

main45131-36050iLY60,YY5#,6#198508-198708

45136PLATE, HORN BUTTON CONTACT

main45136-26020iLY60,YY5#,6#198508-198708

45136ACORD(FOR HORN CONTACT RING)

main90945-02040iLY60,YY5#,6#198508-198708

45146SPRING, HORN BUTTON CONTACT

main45146-36010iLY60,YY5#,6#198508-198708

45201PNUT, STEERING WHEEL SET

main90179-12086iLY60,YY5#,6#198508-198708

45207RING, HORN CONTACT

main45176-20030iLY60,YY5#,6#198508-198708

9331915014

main93319-15014

9351013010

main93510-13010

9351015014

main93510-15014

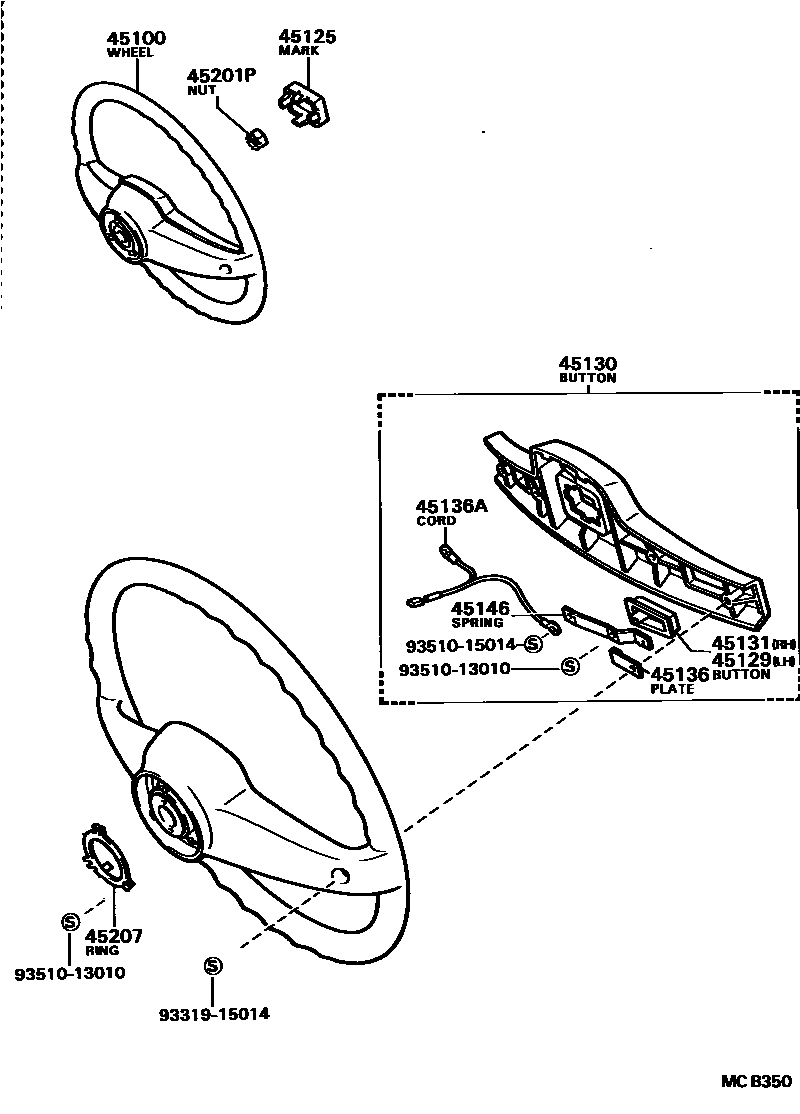

13 parts on this diagram · 1 diagram in section
