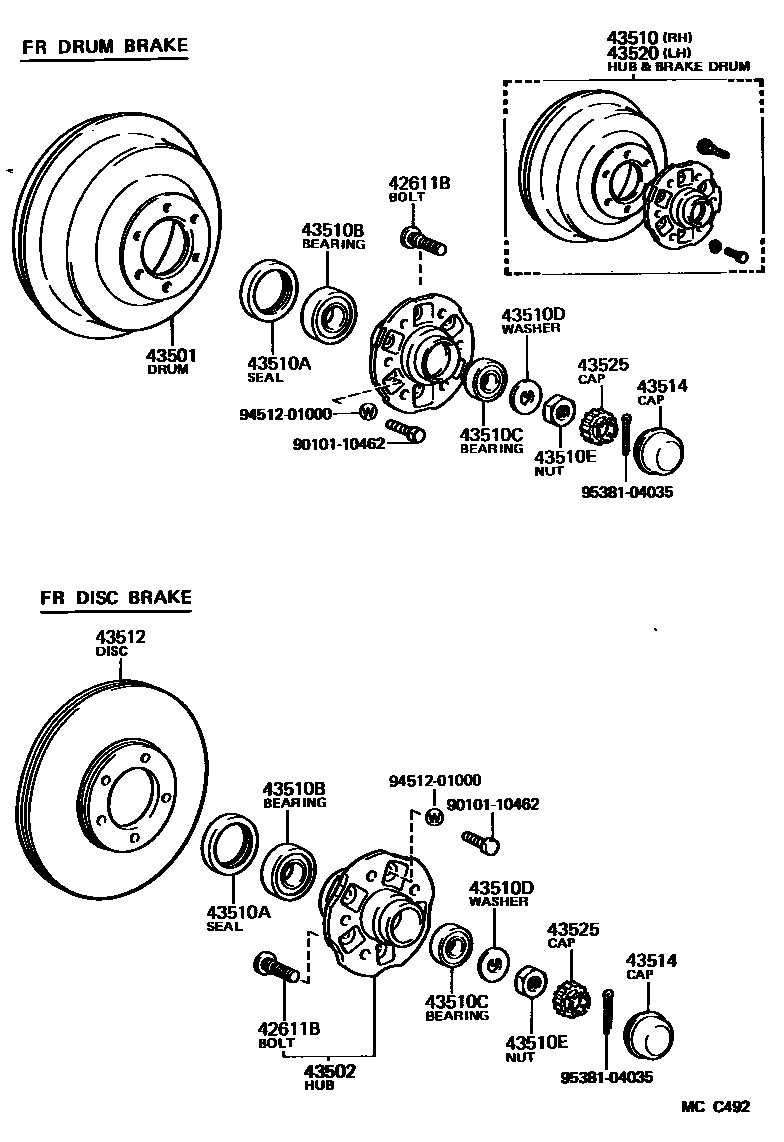

FRONT AXLE HUB

0001 1 0002 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iLY60,YY61..WT..GEN198508-198708

main90942-02050iLY60..EUR198508-198608

main90942-02058iLY60,YY5#,6#..ST198508-198708

sub90942-02112

main90942-02061iLY60,YY61..EUR198608-198708

RH

main90942-02062iLY60,YY61..EUR198608-198708

LH

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-25030iLY60,YY5#,6#..ST..GEN198508-198708

main43512-36090iLY60..EUR198508-198608

43502HUB SUB-ASSY, FRONT AXLE

main43501-25010iLY60,YY61..EUR198608-198708

sub43501-37020

main43502-25010iLY60,YY61..WT..GEN198508-198708

sub43502-29065

main43502-25020iLY60,YY5#,6#..ST198508-198708

sub43502-29075

main43511-36110iLY60..EUR198508-198608

sub43511-37903

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-25060iLY60,YY5#,6#..ST..GEN198508-198708

main43510-36120iLY60..EUR198508-198608

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50003iLY60,YY5#,6#..ARL,GEN198508-198708

main90311-68001iLY60,YY61..EUR198508-198708

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90366-35004iLY60,YY5#,6#..ARL,GEN198508-198708

main90368-42045iLY60,YY61..EUR198508-198708

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-22007iLY60,YY5#,6#..ARL,GEN198508-198708

sub90366-22002

main90368-28001iLY60,YY61..EUR198508-198708

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-23004iLY60,YY5#,6#..ARL,GEN198508-198708

main90214-27001iLY60,YY61..EUR198508-198708

43510ENUT (FOR STEERING KNUCKLE)

main90170-22003iLY60,YY5#,6#..ARL,GEN198508-198708

main90170-26001iLY60,YY61..EUR198508-198708

43512DISC, FRONT

main43512-25020iLY60,YY5#,6#..ARL,GEN198508-198708

main43512-25050iLY60,YY61..EUR198608-198708

43514CAP, FRONT HUB GREASE

main43514-25010iLY60,YY5#,6#..ARL,GEN198508-198708

main43514-36030iLY60,YY61..EUR198508-198708

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-25060iLY60,YY5#,6#..ST..GEN198508-198708

main43520-36120iLY60..EUR198508-198608

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-25010iLY60,YY5#,6#..ARL,GEN198508-198708

main43525-36010iLY60,YY61..EUR198508-198708

9010110462

main90101-10462

9451201000

main94512-01000

9538104035

main95381-04035

16 parts on this diagram · 2 diagrams in section
