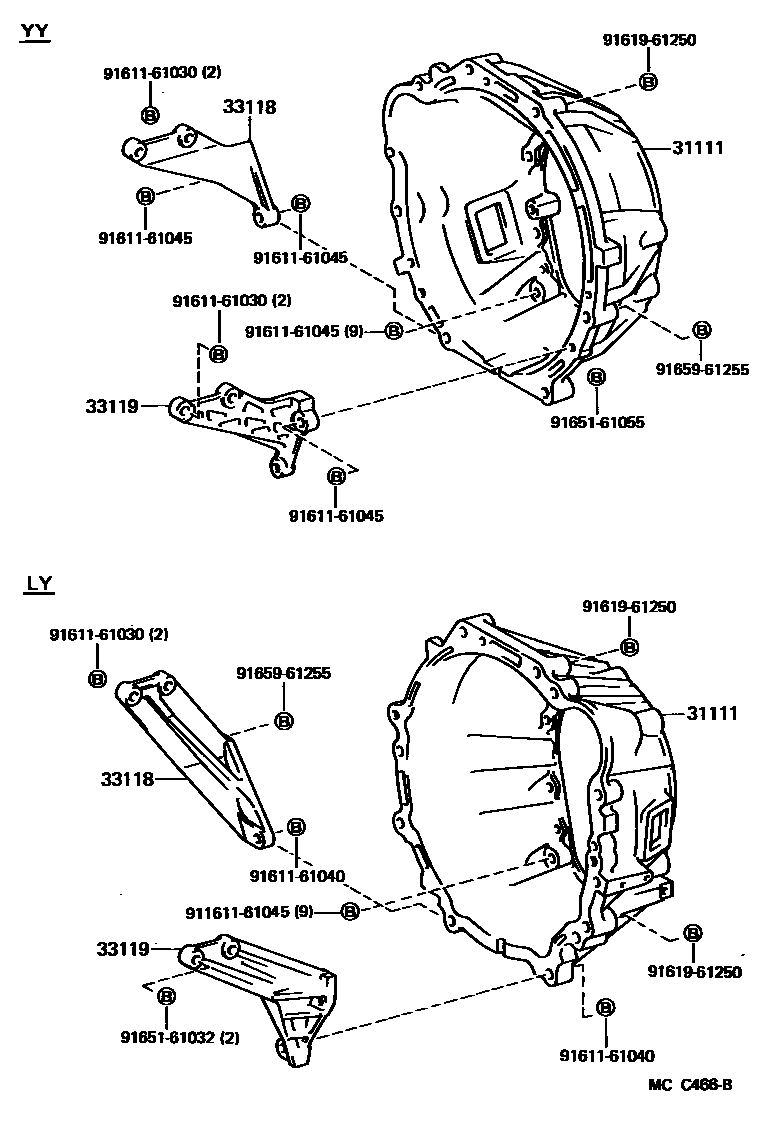

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31111HOUSING, CLUTCH

main31111-25030iLY60198508-198708

main31111-25040iYY5#,6#198508-198708

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLY60198508-198708

main33118-36031iYY5#,6#198508-198708

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLY60198508-198708

main33119-36030iYY5#,6#198508-198708

9161161030

main91611-61030

9161161040

main91611-61040

9161161045

main91611-61045

9161961250

main91619-61250

9165161032

main91651-61032

9165161055

main91651-61055

9165961255

main91659-61255

10 parts on this diagram · 2 diagrams in section
