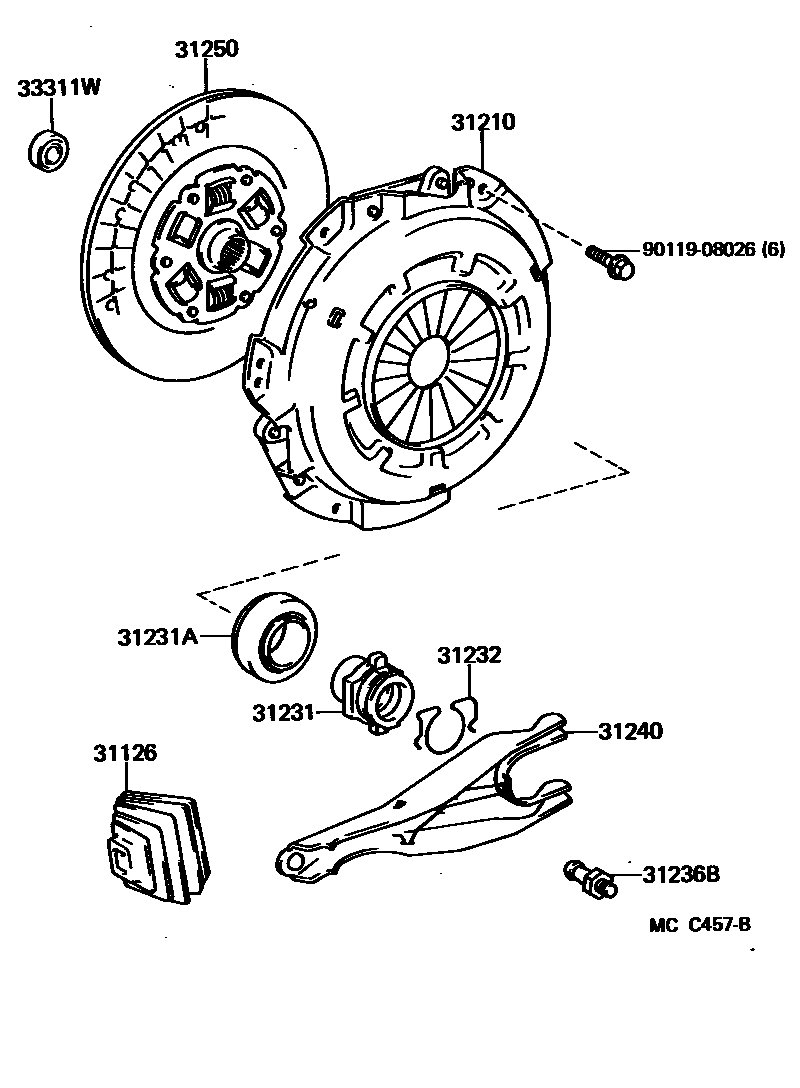

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLY60,YY5#,6#198508-198708

31210COVER ASSY, CLUTCH

main31210-14130iLY60,YY5#,6#198508-198708

sub31210-35090

31231HUB, CLUTCH RELEASE BEARING

main31231-35030iLY60,YY5#,6#198508-198708

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iLY60,YY5#,6#198508-198708

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-35010iLY60,YY5#,6#198508-198708

31236BSUPPORT, RELEASE FORK

main31236-35030iLY60,YY5#,6#198508-198708

31240FORK ASSY, CLUTCH RELEASE

main31204-35030iLY60,YY5#,6#198508-198708

sub31204-35031

31250DISC ASSY, CLUTCH

main31250-25110iLY60198508-198708

sub31250-25111

main31250-25120iYY5#,6#198508-198702

sub31250-25121

main31250-25121iYY52,6#198702-198708

sub31250-25122

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLY60,YY5#,6#198508-198708

sub90363-12024

9011908026

main90119-08026

10 parts on this diagram · 1 diagram in section
