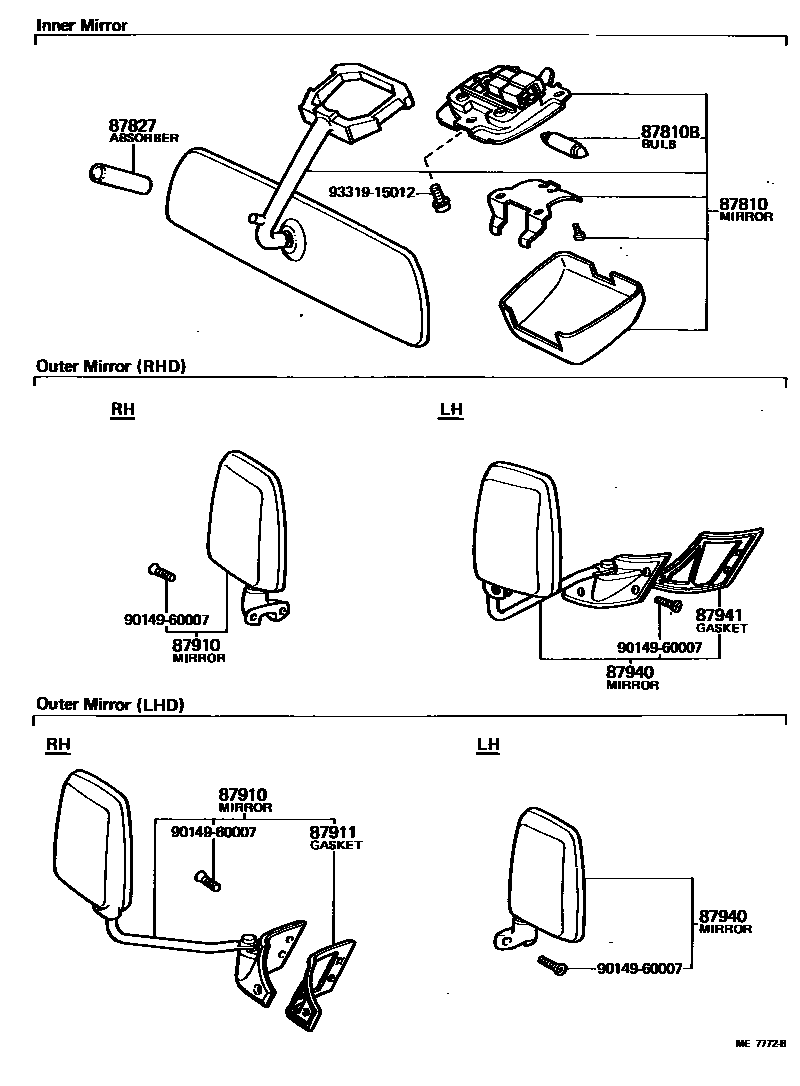

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-95016iJY30,LY20,30,RY20,3#197903-198201

main87810-95018iJY30,LY3#,RY20,3#198201-198507

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027iJY30,LY20,3#,RY20,3#197903-198507

12V 10W,12V 10W

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-30010iJY30,LY20,3#,RY20,3#197903-198507

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-29345iJY30,LY20,3#,RY20,3#..RHD..GEN197903-198507

main87910-29355iJY30,RY20,3#..LHD197903-198507

main87910-29475iLY3#..CBU..ARL198201-198507

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87926-95014iJY30,RY20,3#..LHD197903-198507

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-29355iJY30,LY20,3#,RY20,3#..RHD..GEN197903-198507

main87940-29365iJY30,RY20,3#..LHD197903-198507

main87940-29485iRY31..ARL198005-198201

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87926-95013iJY30,LY20,30,RY20,3#..RHD197903-198201

9014960007

main90149-60007

9331915012

main93319-15012

9 parts on this diagram · 1 diagram in section
