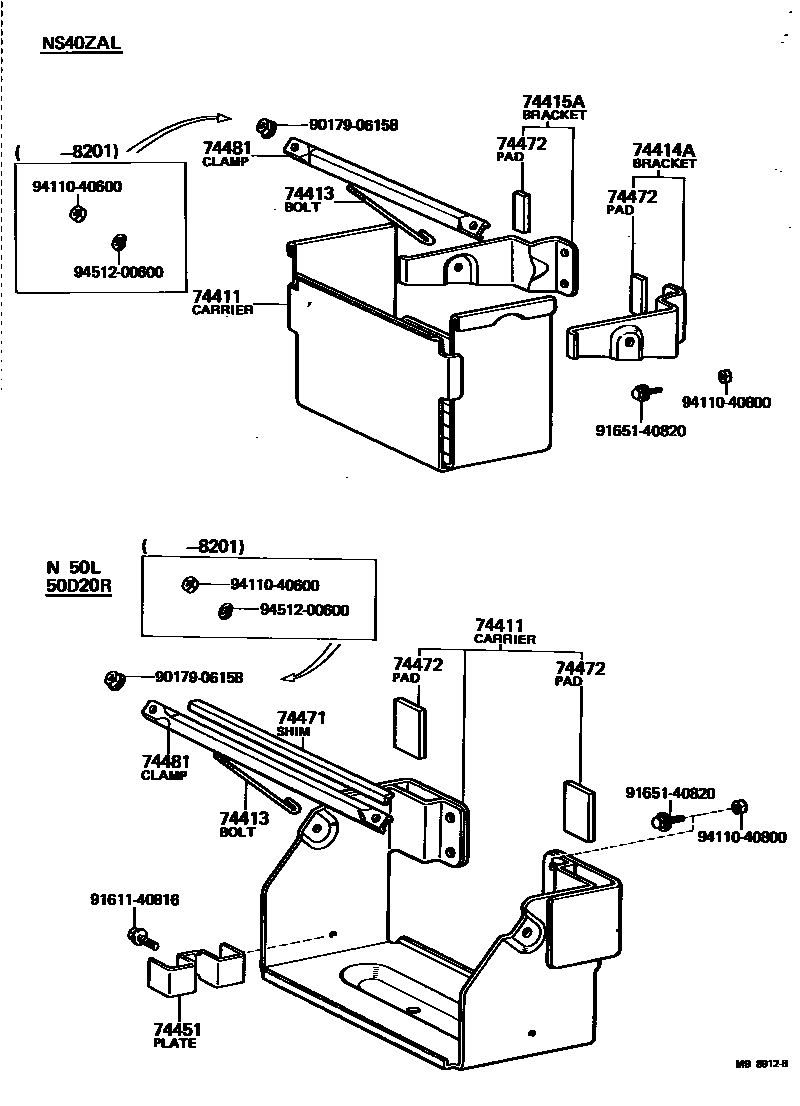

BATTERY CARRIER

0001 1 0002 1 0003 1 0004 1

74411CARRIER, BATTERY

main74411-25020iRY20,3#197903-198201

N50

main74421-25010iRY20,3#197903-198507

NS40ZAL

main74421-25020iLY3#,RY20,3#198201-198507

50D20R,75D26R

sub74421-26020

main74421-36010iLY20,30197903-198109

NX120-7L

main74421-36040iJY30197903-198201

N100Z

main74421-36090iLY20,30198109-198201

NX120-7L

sub74408-36010

main74421-36091iJY30198204-198308

85D31R

74413BOLT, BATTERY CLAMP

main74451-25020×2iLY3#198201-198507

75D26R

main74451-25030iJY30198201-198204

85D31R

main74451-36070iJY30198204-198308

85D31R

main90101-08132iLY20,30197903-198201

NX120-7L

main90101-08133iJY30197903-198201

N100Z

74414ABRACKET, BATTERY, NO.1

main74401-25060iJY30198201-198204

85D31R

main74401-25061iJY30198204-198308

85D31R

main74401-36011iLY20,30197903-198201

NX120-7L

main74401-36170iJY30197903-198201

N100Z

main74411-25011iRY20,3#197903-198507

NS40ZAL

74415ABRACKET, BATTERY, NO.2

main74402-25060iJY30198201-198204

85D31R

main74402-25061iJY30198204-198308

85D31R

main74402-36011iLY20,30197903-198201

NX120-7L

main74402-36110iJY30197903-198201

N100Z

main74412-25011iRY20,3#197903-198507

NS40ZAL

74451PLATE, BATTERY CARRIER SUPPORT

main74451-25050×2iRY20,3#198201-198507

50D20R

main74451-36040×2iLY20,30197903-198201

NX120-7L

74471SHIM, BATTERY SET ANGLE

main74471-35010iRY20,3#197903-198201

N50L

74472PAD, BATTERY SIDE

main74472-25010×2iRY20,3#197903-198507

NS40ZAL

main74472-25020iJY30198201-198308

85D31R

74481CLAMP, BATTERY HOLD DOWN

main74404-25010iLY3#198201-198507

75D26R

sub74453-25090

main74404-25020iJY30198201-198204

85D31R

main74404-25021iJY30198204-198308

85D31R

main74413-36010iRY20,3#197903-198201

N50

main74453-25020iRY20,3#197903-198507

NS40ZAL

sub74453-25080

9017906158

main90179-06158

9161140816

main91611-40816

9165140820

main91651-40820

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

14 parts on this diagram · 4 diagrams in section
