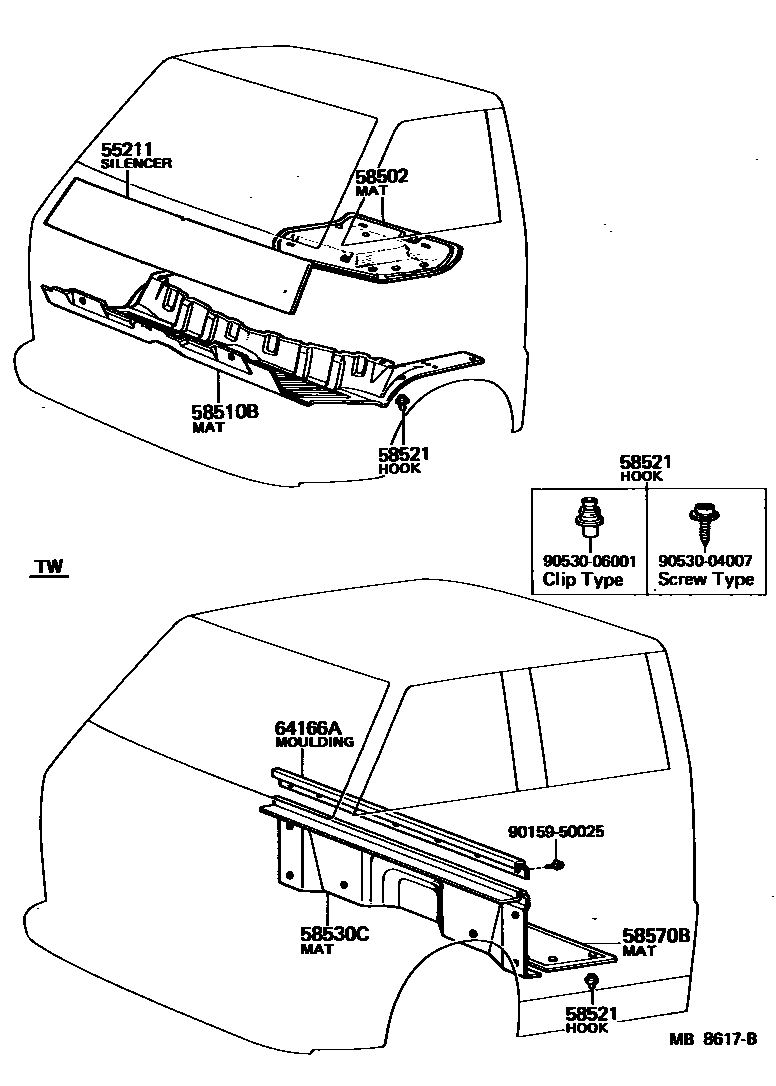

FLOOR MAT & SILENCER PAD

0001 1 0002 1

55211SILENCER, FRONT PANEL

main55211-95013iJY30,LY20,30197903-198002

sub55211-95014

main55211-95014iJY30,LY20,30198002-198201

main55211-95015iJY30,LY3#198201-198507

58502MAT ASSY, ENGINE SERVICE HOLE COVER

main58504-95011iJY30,LY20,30,RY20,3#..RHD197903-198201

main58504-95012iJY30,RY20,3#..LHD197903-198201

main58504-95016iLY31..GEN198201-198507

main58504-95018iJY30,RY20,3#..LHD198201-198507

main58504-95019iLY31..ARL198407-198507

FR

main58576-95013iLY31..IV198407-198507

RR

58510BMAT, FRONT FLOOR, FRONT

main58501-95012iJY30,LY20,30,RY20,3#..RHD197903-198009

main58501-95014iJY30,RY20,3#..LHD197903-198009

main58501-95018iJY30,LY20,30,RY20,3#..RHD198009-198201

main58501-95020iJY30,RY20,3#..LHD198009-198201

main58501-95023iJY30,LY30,RY20,3#..RHD198201-198308

main58501-95025iJY30,RY20,3#..LHD198201-198308

main58501-95028iLY31,RY20,31..RHD198308-198507

main58501-95029iLY31..ARL198407-198507

main58501-95030iRY20,30..LHD198308-198507

58521HOOK, MALE, NO.1

main90530-04007iLY3#,RY30..125197903-198507

SCREW TYPE

main90530-06001iJY30,LY20,3#,RY20,3#197903-198507

CLIP TYPE

58530CMAT, FRONT FLOOR, REAR

main58505-95013iRY30..125197903-198201

main58505-95014iLY31..CBU..ARL198407-198507

main58505-95015iLY3#,RY30..125198201-198507

58570BMAT ASSY, REAR FLOOR

main58551-95012iRY30..125197903-198201

main58551-95013iLY3#,RY30..125198201-198507

64166AMOULDING, FRAME BACK

main64166-95010iRY30..125197903-198201

main64166-95011iLY3#,RY30..125198201-198507

9015950025

main90159-50025

9053004007

main90530-04007

9053006001

main90530-06001

10 parts on this diagram · 2 diagrams in section
