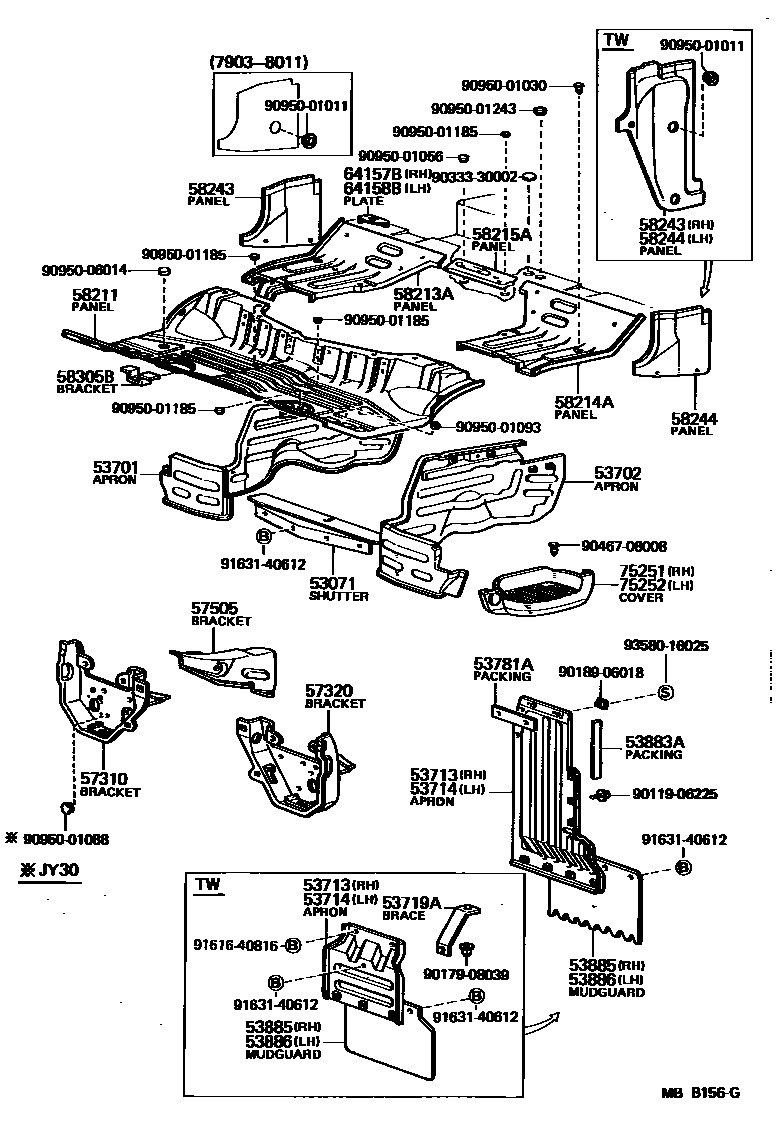

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

53071SHUTTER SUB-ASSY, HOT AIR, UPPER

main53071-95010iJY30,LY20,30,RY31197903-198009

main53071-95011iJY30,LY20,30,RY31198009-198308

main53071-95012iRY31198308-198507

main53071-95013iLY31198308-198507

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-95016iJY30,RY20,3#197903-198507

main53701-95018iLY20,30197903-198308

main53701-95021iLY31198308-198507

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-95015iJY30,LY20,3#,RY20,3#197903-198507

53713APRON, FENDER SIDE, RH

main53703-95013iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

main53703-95014iLY3#,RY30..125197903-198507

53714APRON, FENDER SIDE, LH

main53703-95014iLY3#,RY30..125197903-198507

main53704-95015iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

53719ABRACE, FENDER APRON

main53719-95012iLY3#,RY30..125197903-198507

53781APACKING, FRAME BACK

main53781-95010iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

53883APACKING, FRONT MUDGUARD, UPPER

main53879-95010iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

53885MUDGUARD, FRONT RH

main53881-95010iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

main53881-95011iLY3#,RY30..125197903-198507

53886MUDGUARD, FRONT LH

main53881-95010iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

main53881-95011iLY3#,RY30..125197903-198507

57310BRACKET ASSY, FRONT MOUNTING, RH

main57310-95018iLY20,30,RY20,3#197903-198201

sub57310-95024

main57310-95019iJY30197903-198201

sub57310-95025

main57310-95021iLY30,RY20,3#198201-198507

main57310-95022iJY30198201-198308

main57310-95023iLY31198308-198309

main57310-95027iLY31198309-198507

57320BRACKET ASSY, FRONT MOUNTING, LH

main57320-95012iLY20,30,RY20,3#197903-198201

sub57320-95016

main57320-95013iJY30197903-198201

sub57320-95017

main57320-95014iLY30,RY20,3#198201-198308

main57320-95015iJY30198201-198308

main57320-95019iLY31,RY20,3#198308-198507

57505BRACKET SUB-ASSY, PARKING BRAKE, NO.1

main57505-95014iJY30,LY20,3#,RY20,3#..RHD197903-198507

main57505-95015iJY30,RY20,3#..LHD197903-198507

58211PANEL, FRONT FLOOR

main58101-95029iJY30,LY30,RY20,3#..RHD198201-198308

main58101-95034iJY30,RY20,3#..LHD198201-198308

main58101-95043iRY20,30..RHD198308-198507

main58101-95044iLY31..ARL198407-198507

main58101-95046iRY31;LY31..GEN198308-198507

main58101-95050iRY20,30..LHD198308-198507

main58211-95042iJY30,LY20,30,RY20,3#..RHD197903-198006

sub58211-95051

sub90530-06001

main58211-95044iJY30,RY20,3#..LHD197903-198006

sub58211-95053

sub90530-06001

main58211-95051iJY30,LY20,30,RY20,3#..RHD198006-198201

sub58101-95029

sub58101-95032

sub91131-40670

sub94120-40600

main58211-95053iJY30,RY20,3#..LHD198006-198201

sub58101-95034

sub91131-40670

sub94120-40600

58213APANEL, SEAT FLOOR, RH

main58204-95016iJY30,LY20,3#,RY20,3#..RHD197903-198507

main58213-95014iJY30,RY20,3#..LHD197903-198507

58214APANEL, SEAT FLOOR, LH

main58205-95011iJY30,RY20,3#..LHD197903-198507

main58214-95015iJY30,LY20,3#,RY20,3#..RHD197903-198507

58215APANEL, SEAT FLOOR SIDE

main58215-95011iLY31..ARL198407-198507

main58215-95012iLY31..GEN198201-198507

58243PANEL, REAR FLOOR SIDE, RH

main58243-95010iJY30,LY20,30,RY20,3#..(15T,20T)..GEN197903-198201

sub58243-95013

main58243-95011iLY3#,RY30..125197903-198507

main58243-95013iRY31..ARL198005-198507

58244PANEL, REAR FLOOR SIDE, LH

main58244-95010iJY30,LY20,30,RY20,3#..(15T,20T)..GEN197903-198201

sub58244-95013

main58244-95011iLY3#,RY30..125197903-198507

main58244-95013iRY31..ARL198005-198507

58305BBRACKET ASSY, HEATER HOSE

main58305-95600iJY30,LY20,3#,RY20,3#..RHD197903-198507

64157BPLATE, BACK FRAME, REAR SIDE, RH

main64157-95011iLY3#,RY30..125198110-198507

64158BPLATE, BACK FRAME, REAR SIDE, LH

main64158-95011iLY3#,RY30..125198110-198507

75251COVER, STEP PLATE FRONT, RH

main51771-95015iJY30,LY20,30,RY20,3#197903-198507

main51771-95016iLY31198308-198507

sub51771-95015

75252COVER, STEP PLATE FRONT, LH

main51772-95016iJY30,LY20,3#,RY20,3#197903-198507

9011906225

main90119-06225

9017908039

main90179-08039

9018906018

main90189-06018

9033330002

main90333-30002

9046708008

main90467-08008

9095001011

main90950-01011

9095001030

main90950-01030

9095001056

main90950-01056

9095001088

main90950-01088

9095001093

main90950-01093

9095001185

main90950-01185

9095001243

main90950-01243

9095006014

main90950-06014

9161640816

main91616-40816

9163140612

main91631-40612

9358016025

main93580-16025

40 parts on this diagram · 4 diagrams in section
