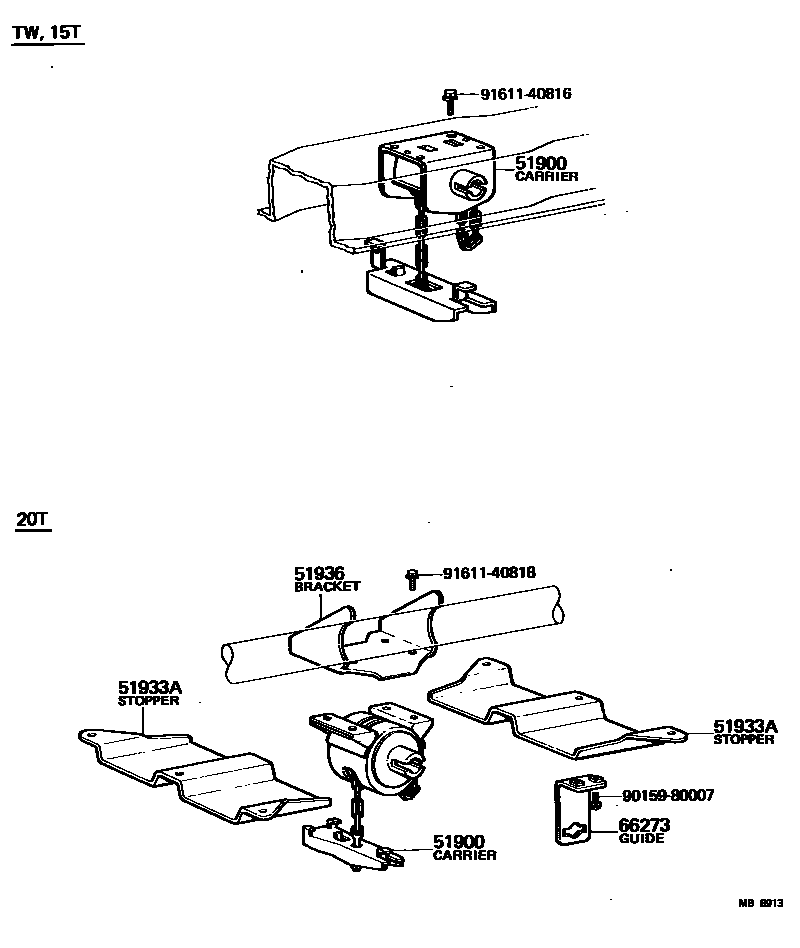

SPARE WHEEL CARRIER

0001 1 0002 1

51900CARRIER ASSY, SPARE WHEEL

main51900-25040iLY20,30,RY20,3#..125,15T197903-198201

sub51900-27090

main51900-27090iLY3#,RY20,3#..ST..(125,15T)..CBU198201-198507

main51900-27090iRY30..WT198409-198507

FR

main51900-35140iRY30..WT198409-198507

RR

main51900-36030iJY30,RY31..20T197903-198308

sub51900-36071

main51900-36071iRY31198308-198507

sub51900-36072

51933ASTOPPER, SPARE WHEEL, NO.1

main51933-25040iRY30..WT198409-198507

main51933-36040iJY30,RY31..20T197903-198507

51936BRACKET, SPARE WHEEL CARRIER

main51943-36020iJY30,RY31..20T197903-198507

main51944-25030iRY30..WT198409-198507

66273GUIDE, SPARE TIRE CARRIER

main66273-95011iJY30,RY31..T1..20T197903-198308

main66273-95014iRY30..WT198409-198507

FR TIRE

main66273-95400iRY30..WT198409-198507

RR TIRE

9015980007

main90159-80007

9161140816

main91611-40816

9161140818

main91611-40818

7 parts on this diagram · 2 diagrams in section
