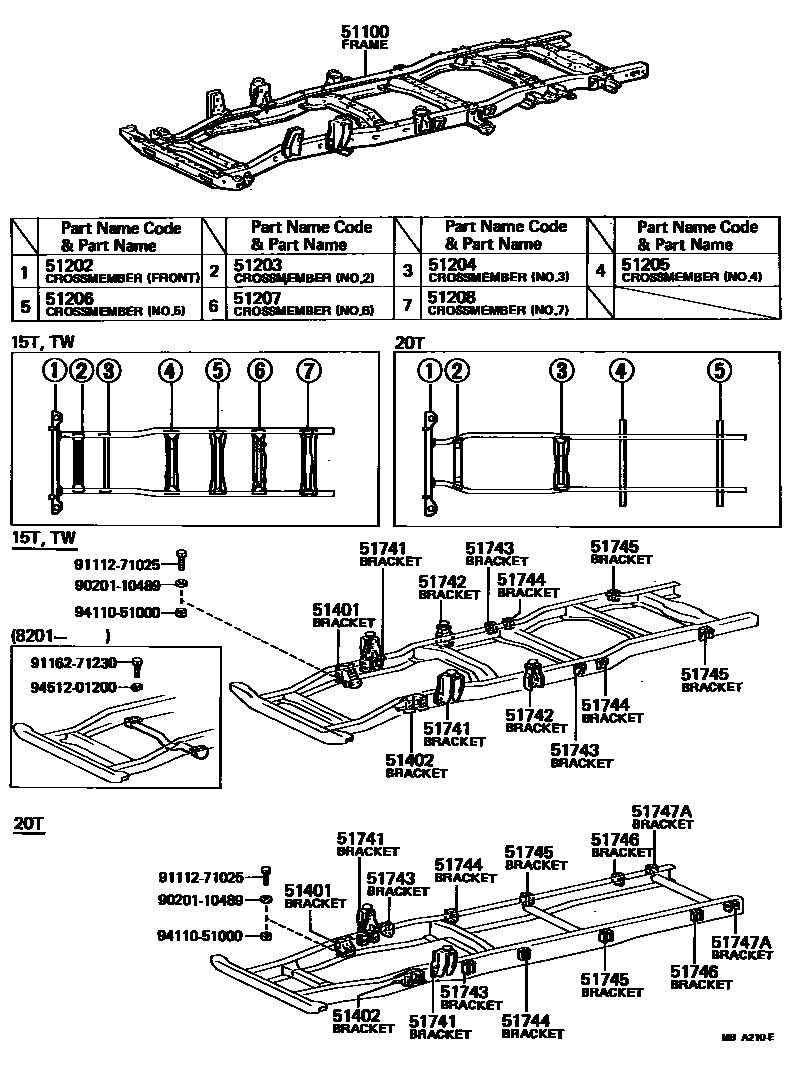

FRAME

51100FRAME ASSY

main51001-25580iRY20..RHD197903-198005

main51001-25581iRY20..RHD198005-198201

main51001-25590iRY20..LHD197903-198005

main51001-25591iRY20..LHD198005-198201

main51001-25630iLY20197903-198201

main51001-25670iRY3#..RHD..15T197903-198005

main51001-25671iRY3#..RHD..15T..GEN198005-198201

main51001-25680iRY3#..LHD..15T197903-198005

main51001-25681iRY3#..LHD..15T198005-198201

main51001-25700iRY30..RHD..125197903-198005

main51001-25701iRY30..RHD..125198005-198201

main51001-25720iLY30197903-198201

main51001-25760iRY30..LHD..125197903-198005

main51001-25761iRY30..LHD..125198005-198201

main51001-25770iJY30,RY31..RHD..20T197903-198002

main51001-25772iJY30,RY31..RHD..20T..GEN198002-198201

main51001-25780iJY30,RY31..LHD..20T197903-198002

main51001-25782iJY30,RY31..LHD..20T198002-198201

main51001-25860iRY31..15T..ARL198005-198201

main51001-25870iRY31..20T..ARL198005-198201

main51002-25010iRY20..RHD198201-198507

main51002-25020iRY20..LHD198201-198507

main51002-25100iRY30..RHD198201-198308

main51002-25110iRY30..LHD..15T198201-198507

main51002-25140iRY30..WT198409-198507

main51002-25150iLY3#..GEN198201-198507

main51002-25170iLY3#..CBU..ARL198201-198507

main51002-25210iLY3#..IV198201-198507

main51002-25230iRY30..125198201-198507

main51002-25240iJY30..T1198201-198308

main51002-25250iJY30,RY31..LHD..20T198201-198308

main51002-25270iRY31..ARL198201-198507

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-25050iLY20,3#,RY20,3#..125,15T197903-198507

main51201-25060iJY30,RY31..20T197903-198507

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-25100iLY20,3#,RY20,3#..125,15T197903-198507

main51202-36060iJY30,RY31..20T197903-198507

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-25050iLY20,30,RY20,3#..125,15T197903-198201

main51203-25060iJY30,RY31..20T197903-198507

main51203-25080iLY30,RY20,3#..125,15T198201-198308

sub51203-25090

sub51442-25050

main51203-25090iRY20,30198308-198507

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-25040iLY20,3#,RY20,3#..125,15T197903-198507

main51241-36070iJY30,RY31..20T197903-198507

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-25030iLY20,30,RY20,3#..125,15T197903-198201

main51205-25040iLY3#,RY20,3#..125,15T198201-198507

main51251-36050iJY30,RY31..20T197903-198507

51207CROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-25040iLY20,30,RY20,3#..125,15T197903-198201

sub51206-25060

main51206-25060iLY3#,RY20,3#..ST..(125,15T)..CBU198201-198507

main51206-25070iRY30..WT198409-198507

51208CROSSMEMBER SUB-ASSY, FRAME, NO.7

main51207-25010iLY20,3#,RY20,3#..ST..(125,15T)..CBU197903-198507

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-25090iRY20,30197903-198507

main51401-25100iLY20,3#197903-198507

main51401-25110iRY31..15T197903-198308

main51401-25120iJY30197903-198308

main51401-25130iRY31..20T197903-198507

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51401-25090iRY20,30197903-198507

main51401-25100iLY20,3#197903-198507

main51401-25110iRY31..15T197903-198308

main51402-25040iJY30197903-198308

main51402-25050iRY31..20T197903-198507

51741BRACKET, REAR BODY MOUNTING, NO.1

main51703-25010iLY20,30,RY20,3#..125,15T197903-198005

main51703-25011iLY31..CBU..ARL198005-198507

main51703-25020iJY30,RY31..20T197903-198005

main51703-25021iJY30,RY31..20T..GEN198005-198308

main51703-25040iLY3#,RY31..15T..ARL198005-198507

main51703-25050iRY31..20T..ARL198005-198507

51742BRACKET, BODY MOUNTING, NO.2

main51705-25020iLY3#,RY30..125197903-198507

RH

main51706-25010iLY3#,RY30..125197903-198507

LH

51743BRACKET, BODY MOUNTING, NO.3

main51741-26010iLY20,3#,RY20,3#..125,15T197903-198507

main51751-36020iJY30,RY31..20T197903-198507

51744BRACKET, BODY MOUNTING, NO.4

main51741-26010iLY20,3#,RY20,3#..125,15T197903-198507

main51751-36020iJY30,RY31..20T197903-198507

51745BRACKET, BODY MOUNTING, NO.5

main51741-26010iLY20,30,RY20,3#..15T197903-198507

main51744-25020iLY3#,RY30..125197903-198507

main51751-36020iJY30,RY31..20T197903-198507

51746BRACKET, BODY MOUNTING, NO.6

main51744-25020iLY20,30,RY20,3#..15T197903-198507

main51751-36020iJY30,RY31..20T197903-198507

51747ABRACKET, BODY MOUNTING, NO.7

main51769-36040iJY30,RY31..20T197903-198507

9020110489

main90201-10489

9111271025

main91112-71025

9116271230

main91162-71230

9411051000

main94110-51000

9451201200

main94512-01200

22 parts on this diagram · 1 diagram in section
