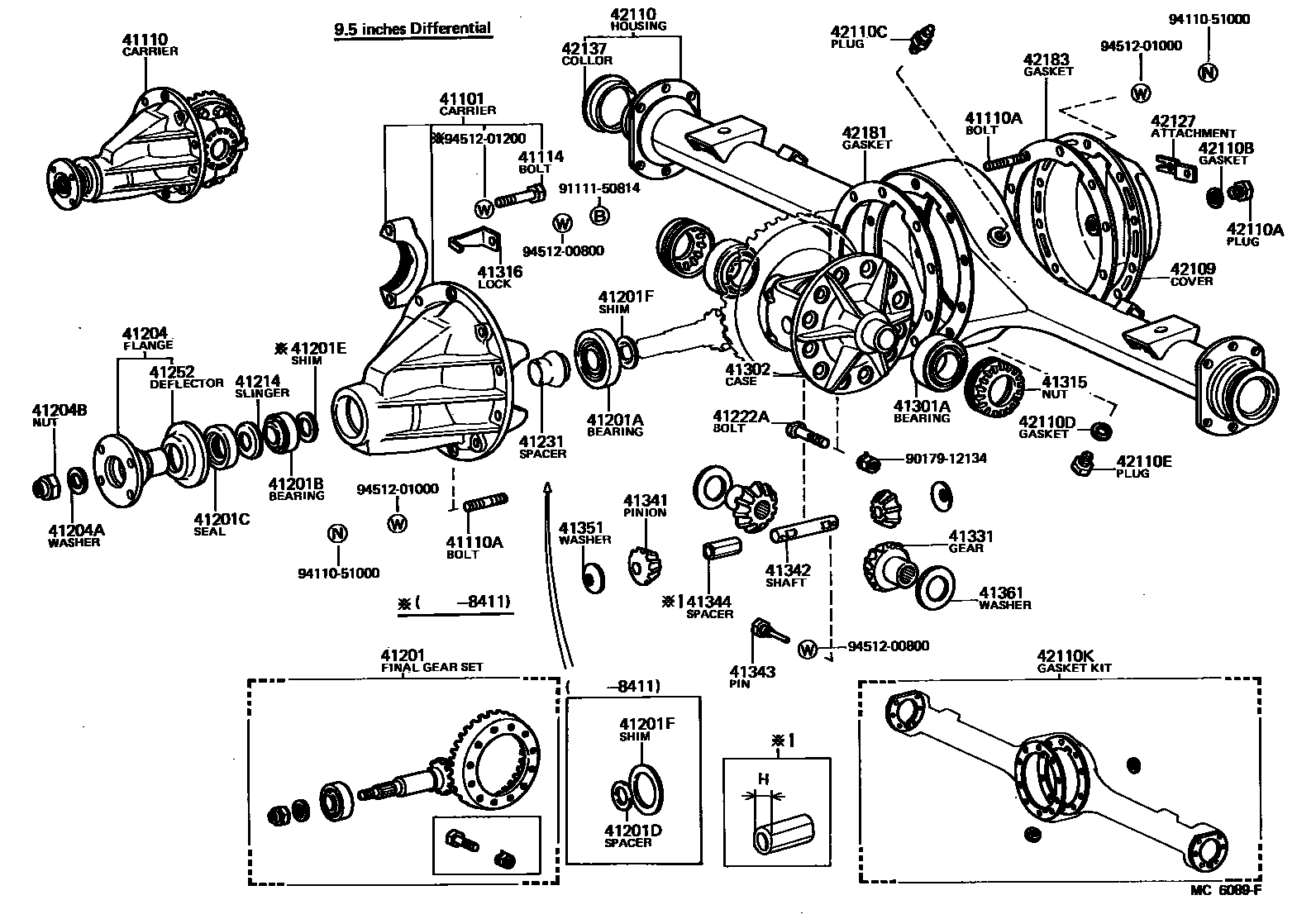

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
sub41101-25H00
sub41101-60070
sub41101-35H00
sub41101-35013
sub41101-37010
41110CARRIER ASSY, DIFFERENTIAL, REAR
R=37:6=6.167
R=37:6=6.167
R=37:7=5.286
R=37:7=5.286
R=37:7=5.286
R=39:7=5.571
R=37:6=6.167
R=41:6=6.833,CHINA SPEC
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
L=36,L=36
L=44,L=44
S=19 & 12.5,L=43.5,L=40,S=19&12
L=37,S=12 & 25,L=37,S=16&12
L=50,S=12 & 18,L=50,S=18&12
sub90116-10075
L=32,S=12 & 20,COVER,L=32,S=15&12
sub90116-10076
41114BOLT, REAR DIFFERENTIAL BEARING CAP
*12-1.5PX67-21
*12-1.5PX56-30
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.74-2.76,T=2.75
T=2.77-2.79,T=2.78
T=2.80-2.82,T=2.81
T=2.83-2.85,T=2.84
T=2.86-2.88,T=2.87
T=2.89-2.91,T=2.90
T=2.92-2.94,T=2.93
T=2.95-2.97,T=2.96
T=2.98-3.00,T=2.99
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
T=0.25,T=0.25
T=1.80,T=1.80
T=1.82,T=1.82
T=1.84,T=1.84
T=1.86,T=1.86
T=1.88,T=1.88
T=1.90,T=1.90
T=2.00,T=2.00
T=2.10,T=2.10
T=2.20,T=2.20
T=2.30,T=2.30
T=2.40,T=2.40
T=2.50,T=2.50
T=2.60,T=2.60
T=2.70,T=2.70
T=2.80,T=2.80
T=2.90,T=2.90
T=3.00,T=3.00
T=1.81,T=1.81
T=1.83,T=1.83
T=1.85,T=1.85
T=1.87,T=1.87
T=1.89,T=1.89
41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)
OD=47,T=1.70,T=1.70
OD=47,T=1.73,T=1.73
OD=47,T=1.76,T=1.76
OD=47,T=1.79,T=1.79
OD=47,T=1.82,T=1.82
OD=47,T=1.85,T=1.85
OD=47,T=1.88,T=1.88
OD=47,T=1.91,T=1.91
OD=47,T=1.94,T=1.94
OD=47,T=1.97,T=1.97
OD=47,T=2.00,T=2.00
OD=47,T=2.03,T=2.03
OD=47,T=2.06,T=2.06
OD=47,T=2.09,T=2.09
OD=47,T=2.12,T=2.12
OD=47,T=2.15,T=2.15
OD=47,T=2.18,T=2.18
OD=47,T=2.21,T=2.21
OD=47,T=2.24,MARK 01,T=2.24
OD=47,T=2.27,MARK 02,T=2.27
OD=47,T=2.30,MARK 03,T=2.30
OD=47,T=2.33,MARK 04,T=2.33
T=0.25,T=0.25
T=0.30,T=0.30
T=0.35,T=0.35
T=0.40,T=0.40
T=0.45,T=0.45
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
sub41214-40010
sub41214-36030
sub41214-37010
sub41214-26010
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
SINGLE TYPE
DOUBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
N=16
N=16
41341PINION, REAR DIFFERENTIAL
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41344SPACER, DIFFERENTIAL PINION SHAFT
H=29.8
H=30.2
H=30.6
H=29.0
H=29.4
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.6,T=1.6
T=1.7,T=1.7
T=1.8,T=1.8
42109COVER SUB-ASSY, REAR AXLE HOUSING
42110HOUSING ASSY, REAR AXLE
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
42127ATTACHMENT, BRAKE TUBE CLAMP, NO.1
42137COLLAR, REAR AXLE HOUSING SIDE
42183GASKET, REAR AXLE HOUSING COVER
9017912134
main90179-12134
9111150814
main91111-50814
9411051000
main94110-51000
9451200800
main94512-00800
9451201000
main94512-01000
9451201200
main94512-01200
48 parts on this diagram · 3 diagrams in section
