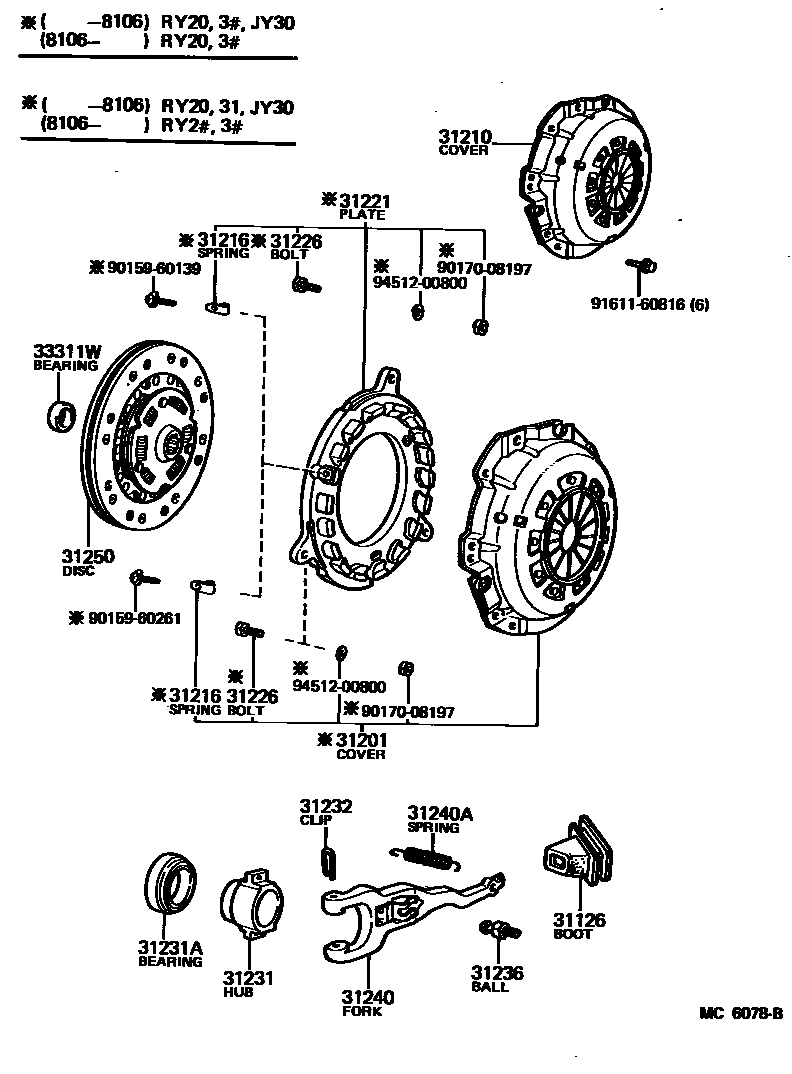

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iJY30197903-198308

main31126-25021iLY20,3#,RY20,3#197903-198507

31201COVER SUB-ASSY, CLUTCH

main31201-19095iLY31198308-198507

sub31201-14110

main31201-29075iJY30,LY20,30,RY31197903-197908

sub31201-29076

main31201-29076iJY30,LY20,30,RY31197908-198101

sub31201-29085

main31201-29085iLY20,30,RY31198101-198507

sub31201-26010

main31201-39045iRY20,30197903-197908

sub31201-39046

main31201-39046iRY20,30197908-198004

sub31201-39047

main31201-39047iRY20,30198004-198507

main31201-39076iJY30198004-198010

sub31201-39077

main31201-39077iJY30198010-198106

sub31201-39078

31210COVER ASSY, CLUTCH

main31210-14110iJY30198106-198208

sub31210-14111

main31210-14111iJY30198208-198308

sub31210-14121

main31210-14130iLY31198308-198507

sub31210-35090

main31210-25040iJY30198004-198106

sub31210-14110

main31210-35040iRY20,30197903-197908

sub31210-35041

main31210-35041iRY20,30197908-198004

sub31210-35042

main31210-35042iRY20,30198004-198507

sub31210-22120

main31210-36027iJY30,LY20,30,RY31197903-197908

sub31210-36028

main31210-36028iJY30,LY20,30,RY31197908-198101

sub31210-36029

main31210-36029iLY20,30,RY31198101-198507

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-30010iJY30197903-198507

31221PLATE, CLUTCH PRESSURE

main31221-29045iJY30198004-198106

sub31210-14110

main31221-39045iRY20,30197903-198507

sub31221-35020

main31221-39056iJY30,LY20,30,RY31197903-198507

sub31221-36025

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08022iLY31,RY20,3#197903-198507

main90101-08350iJY30197903-198308

sub90101-08022

31231HUB, CLUTCH RELEASE BEARING

main31231-20030iJY30197903-197904

sub31231-20031

main31231-20031iJY30197904-198004

main31231-20051iLY20,30,RY20,3#197903-197904

sub31231-20052

main31231-20052iLY20,30,RY20,3#197904-198007

main31231-25010iJY30198004-198308

main31231-30080iLY20,3#,RY20,3#198007-198507

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40003iJY30,LY20,30,RY20,3#197903-198004

sub90363-40010

main90363-40008iJY30198004-198010

main90363-40010iLY20,30,RY20,3#198004-198009

main90363-40019iLY20,30,RY20,3#198009-198211

sub90363-40022

main90363-40022iLY3#,RY20,3#198211-198507

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-20010iJY30197903-198308

main31232-30010iLY20,30,RY20,3#197903-198009

main31232-30020iLY20,3#,RY20,3#198009-198507

31236BALL, RELEASE FORK

main31236-25010iLY20,3#,RY20,3#197903-198507

main31236-30030iJY30197903-198004

main31236-30040iJY30198004-198308

31240FORK ASSY, CLUTCH RELEASE

main31204-20020iLY20,30197903-198007

sub31204-26010

main31204-20031iRY20,3#197903-198009

main31204-25010iJY30198004-198308

main31204-25020iRY20,3#198009-198507

main31204-26010iLY20,3#198007-198507

main31204-36030iJY30197903-198004

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-14041iRY20,3#198111-198507

main90506-16004iJY30,LY20,3#197903-198507

main90506-16466iRY20,3#197903-198111

sub90506-14041

31250DISC ASSY, CLUTCH

main31250-22101iLY20,30198105-198507

sub31250-22102

main31250-25030iRY31197903-198006

sub31250-25031

main31250-25031iRY31198006-198507

sub31250-22121

main31250-25060iJY30,LY20,30197903-197908

sub31250-25061

main31250-25061iJY30,LY20,30197908-198004

sub31250-25062

main31250-25062iLY20,30198004-198006

sub31250-25063

main31250-25063iLY20,30198006-198008

sub31250-35080

main31250-25070iLY20,30198008-198105

sub31250-22101

main31250-25080iJY30198004-198006

sub31250-25081

main31250-25081iJY30198006-198308

sub31250-25082

main31250-25090iRY20,30198201-198312

sub31250-25091

main31250-25091iRY20,30198312-198507

sub31250-35062

main31250-25100iRY20,30198107-198201

sub31250-35061

main31250-28011iRY20,30197903-198107

sub31250-25100

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iJY30,LY20,3#,RY20,3#198002-198507

sub90363-12024

main97143-06201iJY30,LY20,30,RY20,3#197903-198011

sub90363-12002

9015960139

main90159-60139

9015960261

main90159-60261

9017008197

main90170-08197

9161160816

main91611-60816

9451200800

main94512-00800

19 parts on this diagram · 2 diagrams in section
